WEEKE OPTIMAT BHC VENTURE 08 M -2010
Verkocht
Specificaties
| Fabrikant | WEEKE |
| Model | OPTIMAT BHC VENTURE 08 M |
| Jaar | 2010 |
| Conditie | Gebruikt |
| Gemaakt in | Duitsland |
| X-as reis | 3945 mm |
| Y-as reis | 1953 mm |
| Z-as reis | 340 mm |
| Z1-as reis | 100 mm |
| Werkgebied | 3130 x 1250 x 1550 x 100 mm |
| Reissnelheid | 80 - 80 - 20 m/min |
| Vacuümpomp | 100 m³ / uur |
| Hoofdspil motor | 9 Kw |
| Motorvermogen | 2.3 kW |
| Spiltoerental | 1500 - 7000 Rpm |
| Boordiepte | 38 - 55 mm |
| Gereedschapsdiameter | 35 mm |
| Gereedschapshouder | HSK 63 F |
| Afmetingen | L 5830 x B 4100 x H 2500 mm |
| Gewicht | 4000 Kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
CNC Machining centers - Year: 2010
More info:

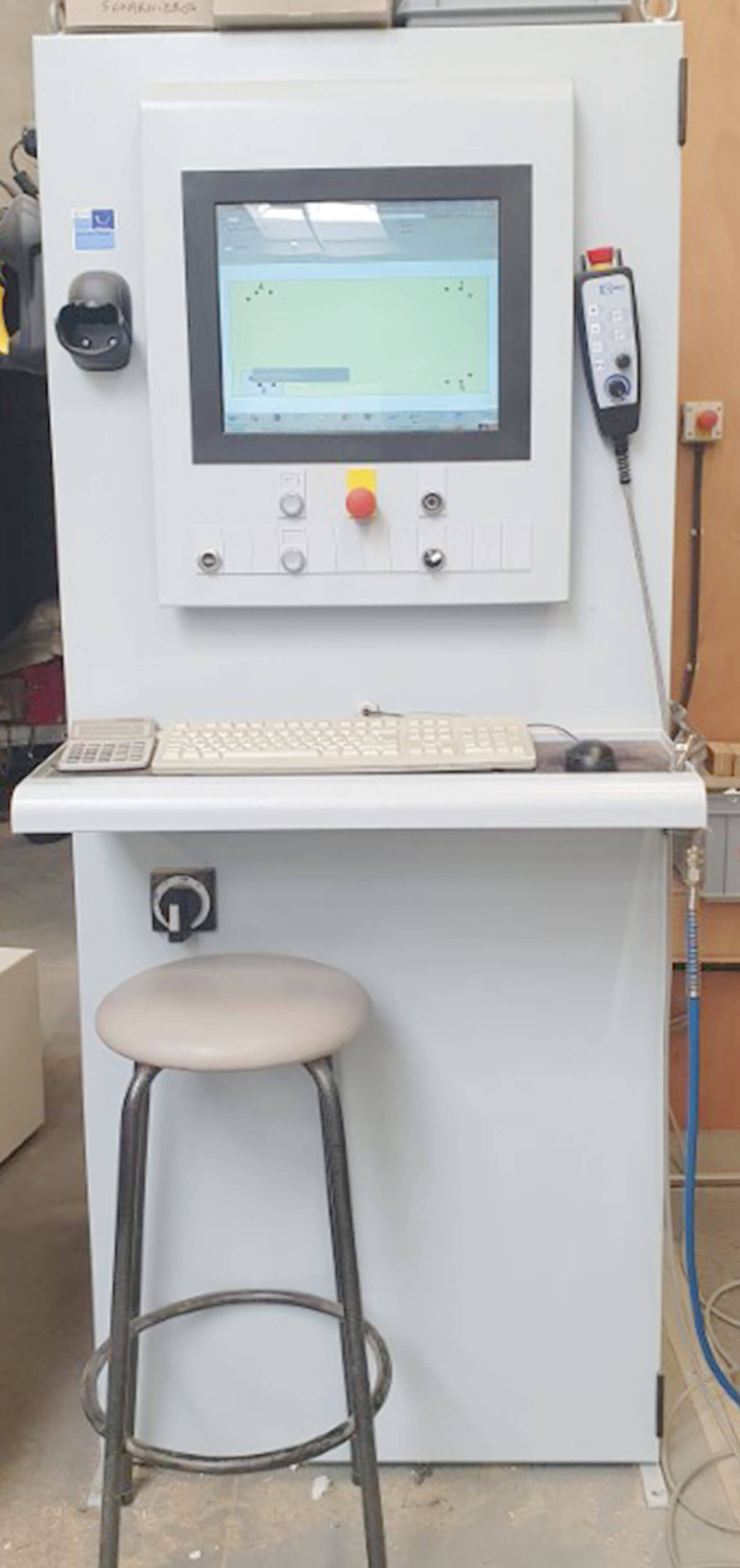

The machine has Woodwop, DXF Import, Look ahead, ECO Plus E-safe. PC Windows, Inte Core 3 DUO, 17 ″ TFT screen, 160 GB, USB, Ethernet 10/100 MBIT.
Vacuum connection to connect homemade templates.

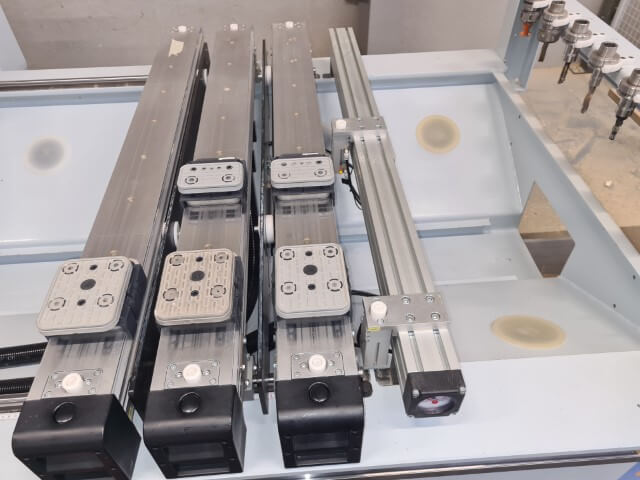

6-piece consoles (1,550 mm) continuously adjustable in x direction, equipped with hoseless vacuum cleaners
Back stops 6 pneumatically retractable workpiece stops attached to the rear of the machine.
Front stops 6 pneumatically retractable workpiece stops on the front consoles.
Side Attacks 2 * 2 Fixed Pneumatic Retractable Workpiece Stops on Left / Right Side of Machine
Lifting aid 4 controlled part lifting slide rails for positioning heavy products.
