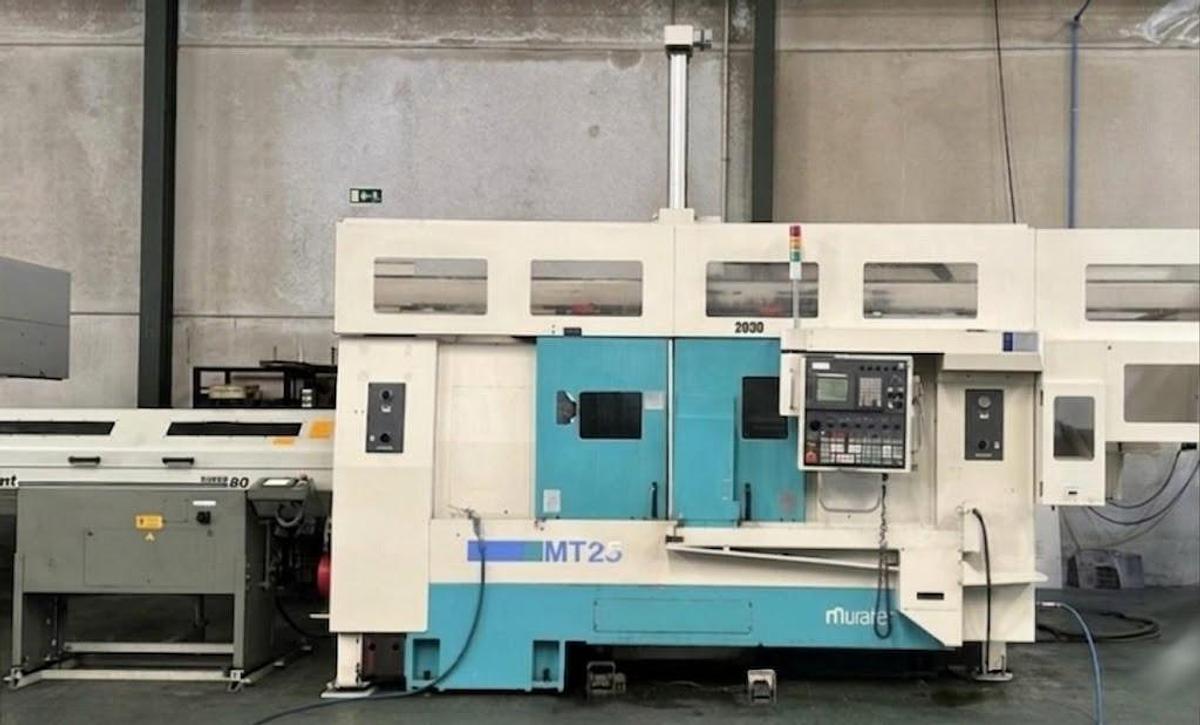

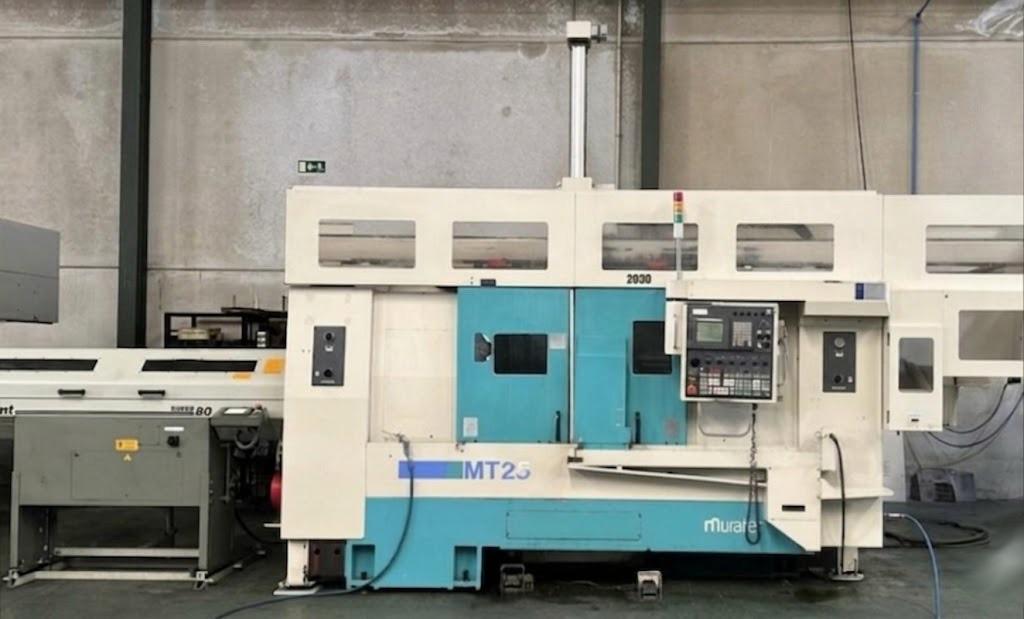

Muratec MT 25 MY I CNC Lathe I 2001
Specifications
| Manufacturer | Muratec |
| Model | MT 25 MY |
| Year | 2001 |
| Condition | Used |
| Stock Number | 600876559 |
| Control unit | Fanuc |
| X-Axis travel | 250 mm |
| Z1-Axis travel | 300 mm |
| Z2-Axis travel | 920 mm |
| C-axis travel | ±60 mm |
| X-Y-Z axis speed | 16 - 18 - 18 m/min |
| Turning diameter | 370 mm |
| Turning length | 920 mm |
| Distance between centers | 920 mm |
| Number of turrets | 2 |
| Chuck size | 254 mm |
| Main spindle speed | 3500 rpm |
| Drive tool speed | 3000 rpm |
| Main Spindle power | 15 kW |
| Motorized tool motor | 4 kW |
| Spindle size | A2-6 |
| Spindle diameter at front bearing mounting | φ120 mm |
| Diameter of spindle bore | φ83 mm |
| Spindle draw tube diameter | φ72 mm |
| Max. bar workpiece size | φ71 mm |
| Tools on turret | 15 positions |
| Dimensions | L 3700 x W 2250 x H 2100 mm |
| Weight | 10400 kg |
| Availability | Immediately |
Description
Explore offering this pre-owned Muratec MT 25 MY CNC lathe, manufactured in 2001 and currently located in Spain. This versatile metalworking machine is equipped with a Fanuc control unit and offers a maximum turning diameter of 380 mm, making it suitable for a wide range of precision turning applications. It features a spindle speed of up to 4000 rpm and is powered by a 15 kW spindle motor, delivering reliable performance, accuracy, and efficiency for demanding production and workshop environments.
Included with the Machine:

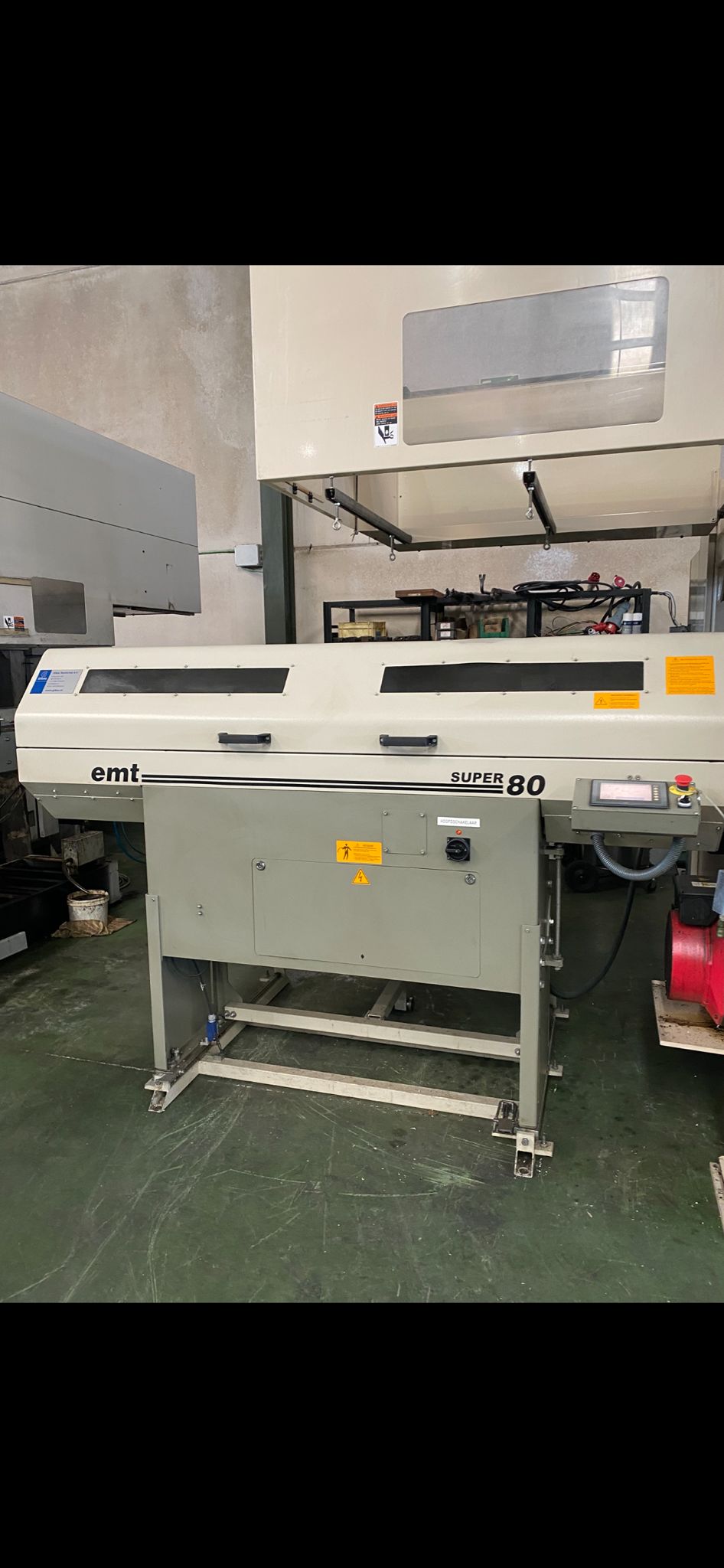

- Bar feeder.
- Robot gantry loader
Features:
- Loading and unloading system using an 8 kg gantry robot.
- Machine with 9 controlled axes.
- Two twin spindles.
- Two turrets.

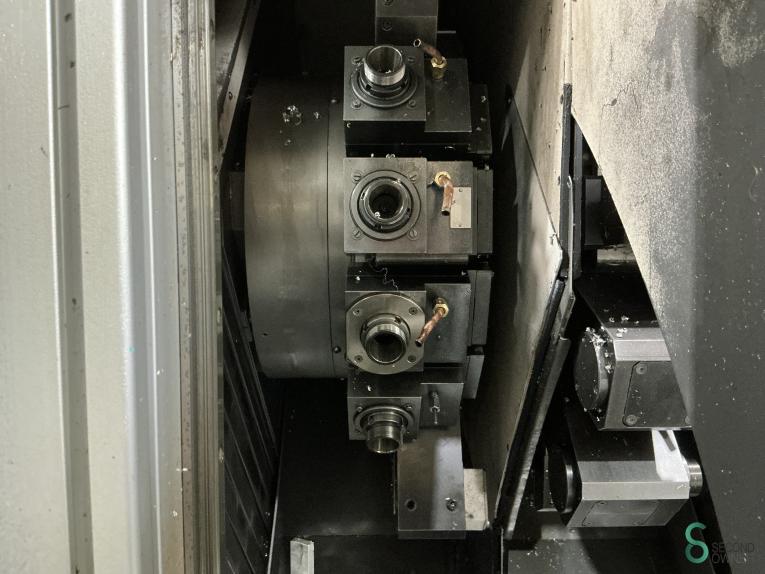

- Turrets with 15 positions each, all motorized.
- Motor starting torque: 420 N·m.
- Prismatic guideways on all axes. * Two 250 mm Kitagawa hydraulic chucks on each spindle.
- Separate inspection compartment for machined parts.
- Automatic tool take-up arm for small parts.
- Automatic cleaning of the second spindle with air or coolant.
- Conveyor belt for finished parts.
- Automatic tool load control and wear monitor.
- Inter-spindle workpiece transfer system with automatic torque control.
- Fanuc motors, servos, electronics, and programming.
- Rear-hinged chip conveyor.
- A complete set of static tool holders for external and internal operations is included.
- Includes a complete set of axial and radial motorized tool holders.
Muratec Machinery
Muratec is a prominent brand in the manufacturing of industrial machinery and precision tools, recognized for its commitment to innovation and excellence in producing a wide range of advanced machines. Their products include high-precision CNC lathes, vertical machining centers, laser cutting machines, automation and robotics systems, as well as inspection and quality control equipment. These machines and solutions are essential for multiple industrial sectors, and the brand has earned a strong reputation for delivering quality, precision, and efficiency in the production of high-quality parts and components.
