FEELER QM-40SA I CNC Milling Machine I 2007

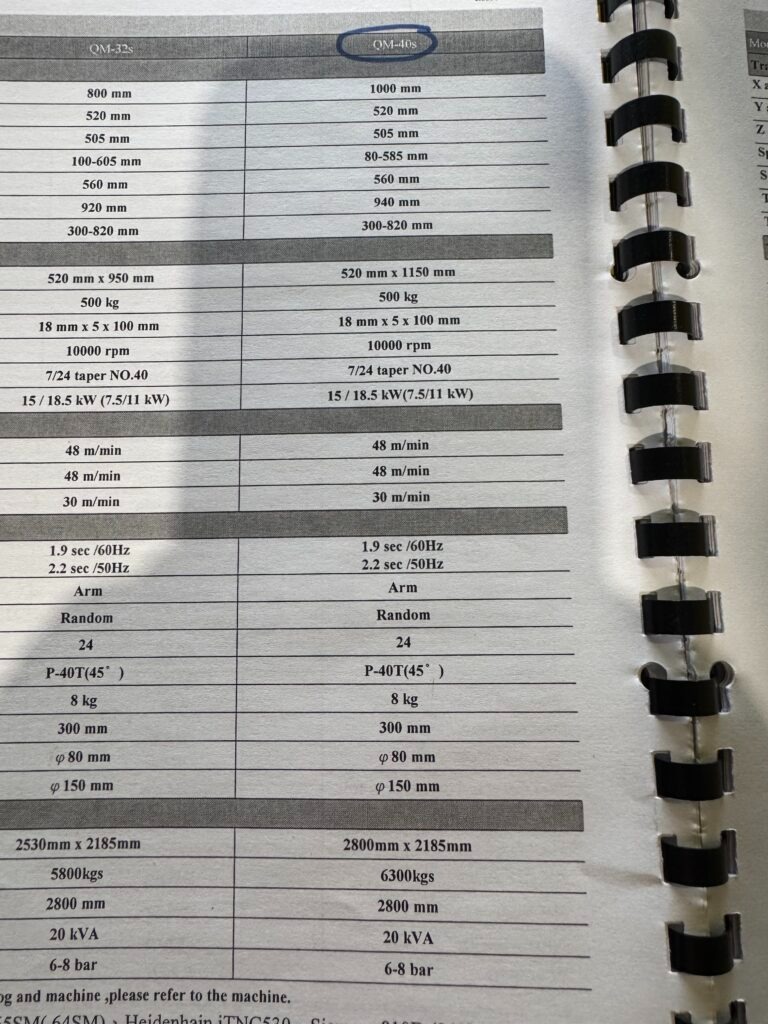

Specifications
| Manufacturer | FEELER |
| Model | QM-40SA |
| Year | 2007 |
| Condition | Used |
| Stock Number | 600876537 |

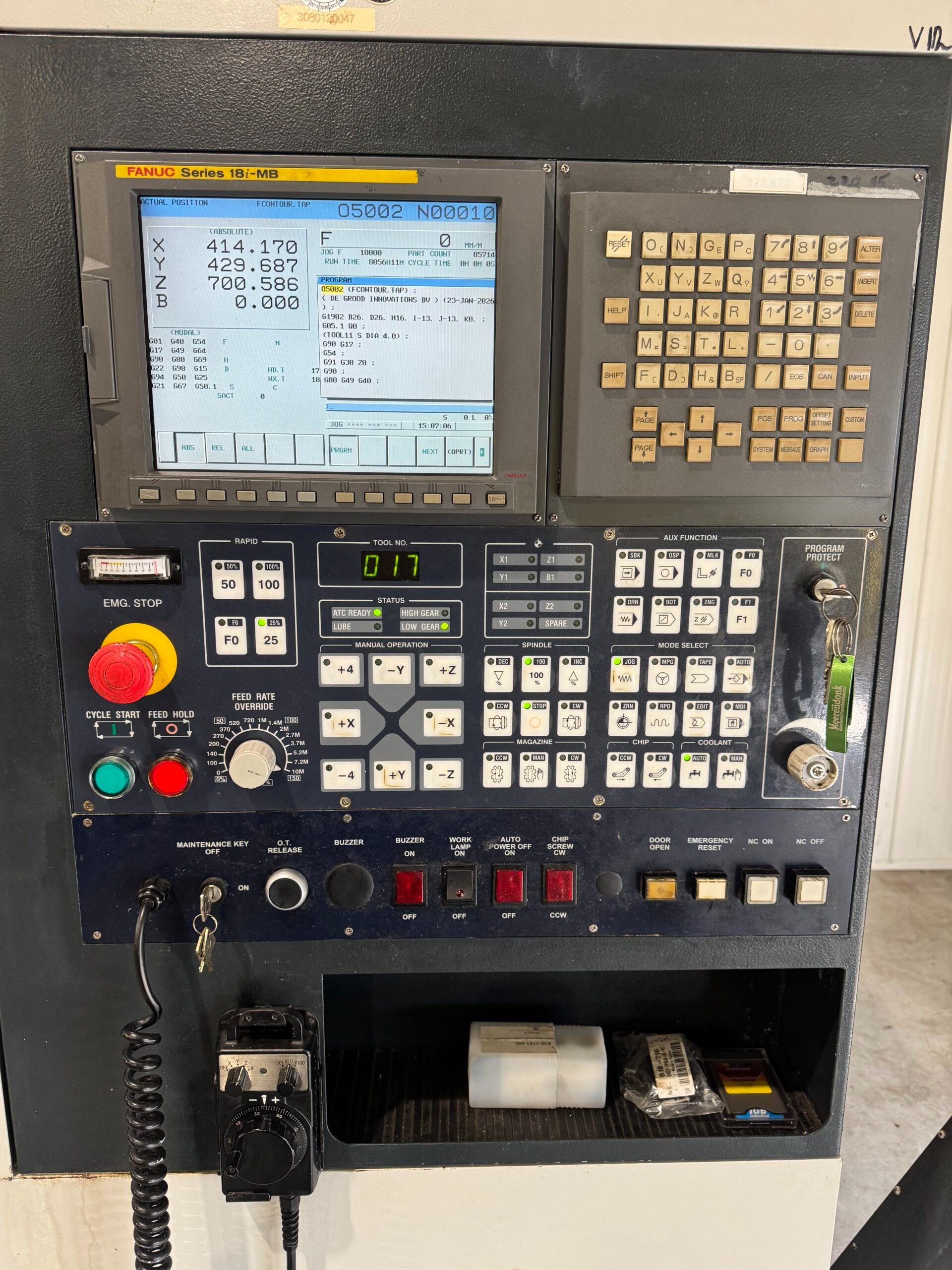

| Control unit | Fanuc 18i-MB |
| X-Axis travel | 1000 mm |
| Y-axis travel | 520 mm |
| Z-Axis travel | 505 mm |
| Rapid traverse speed X-Y-Z | 48-48-30 m/min |

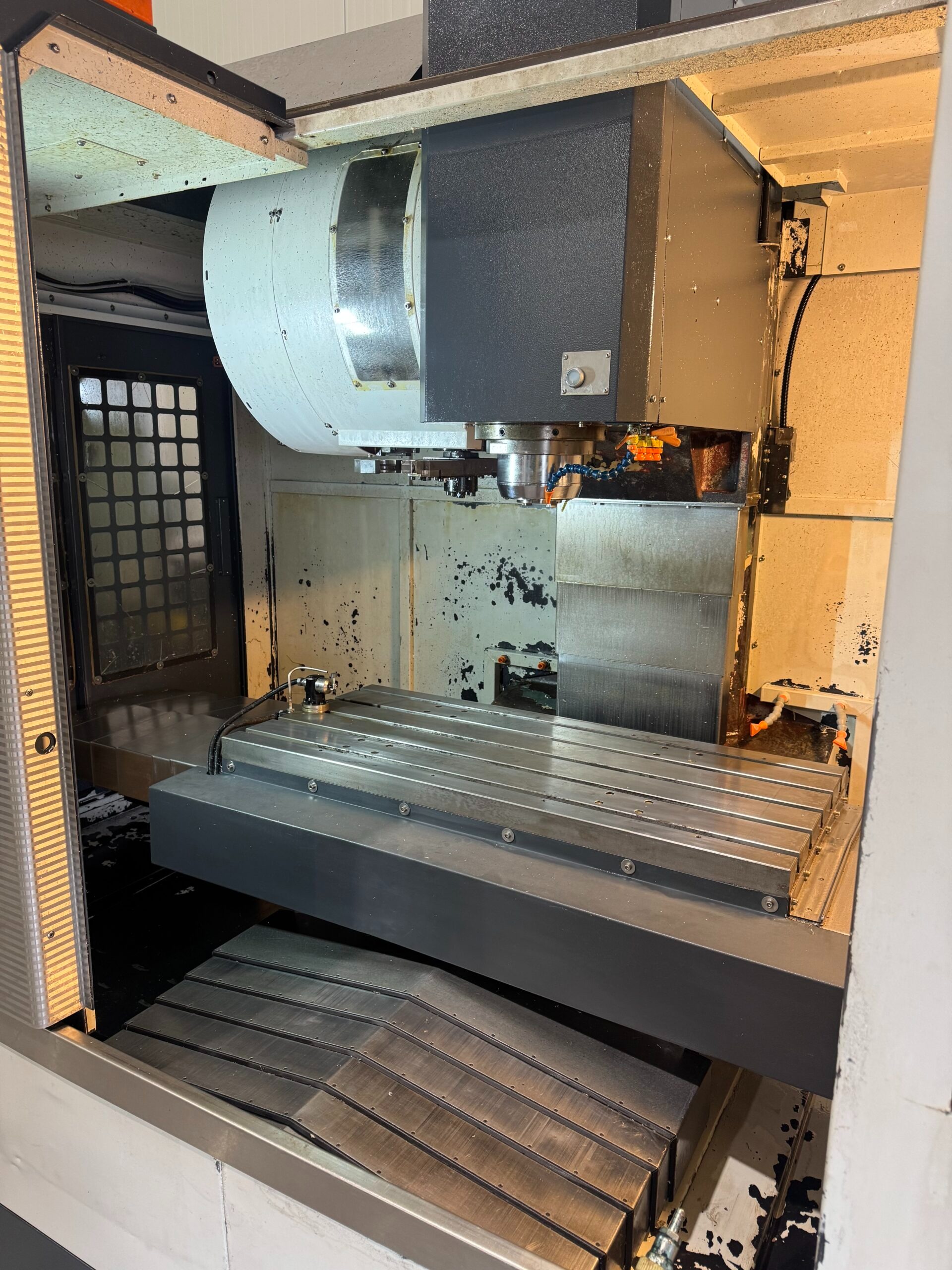

| Table length | 1150 mm |
| Table width | 520 mm |
| Table load | 500 kg |
| Max. tool length | 300 mm |
| Max. tool diameter | Ø80 mm |
| Spindle taper | ISO40 |
| Spindle speed | 10000 rpm |
| Motor power | 15 - 18,5 kW |

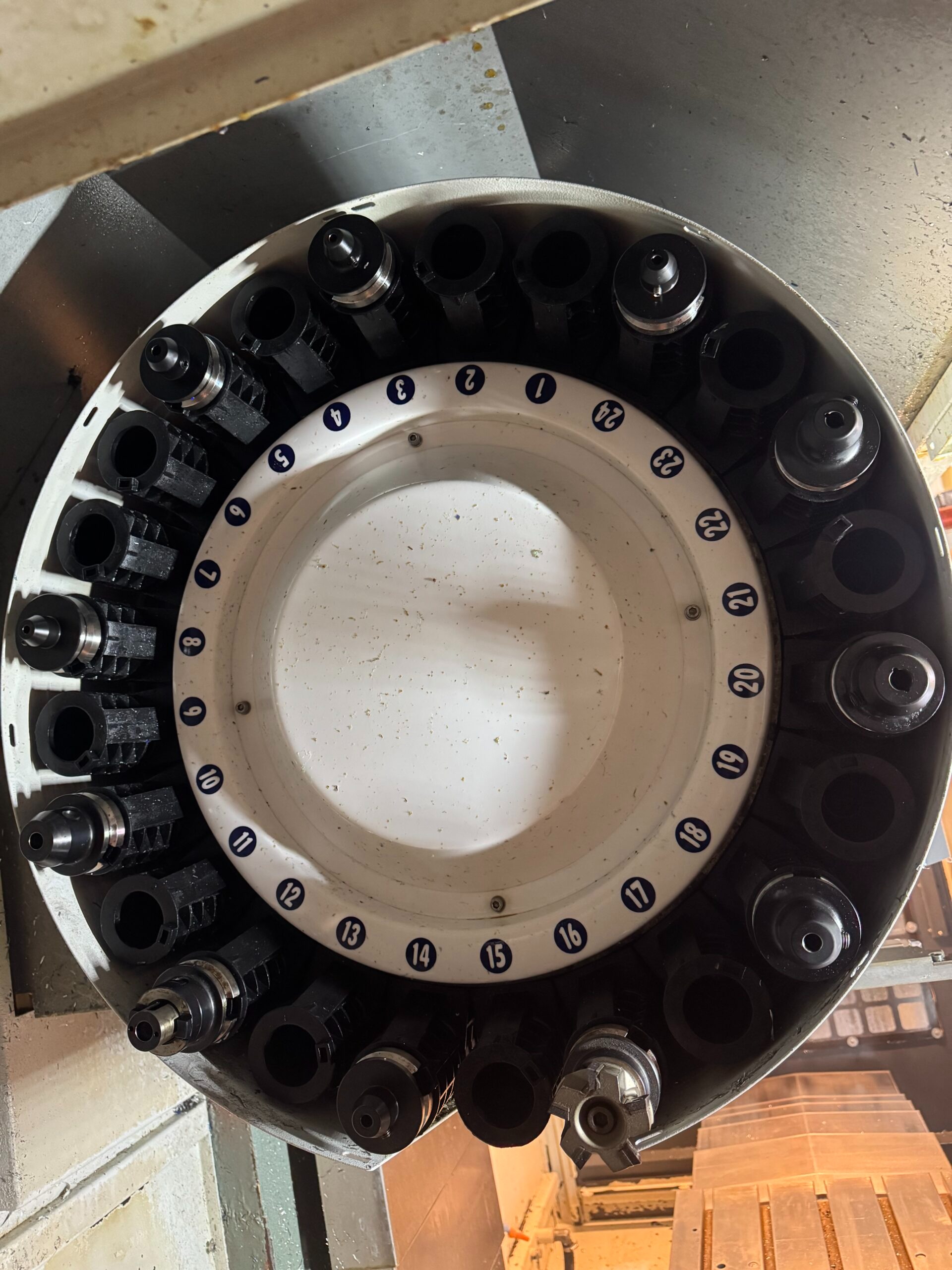

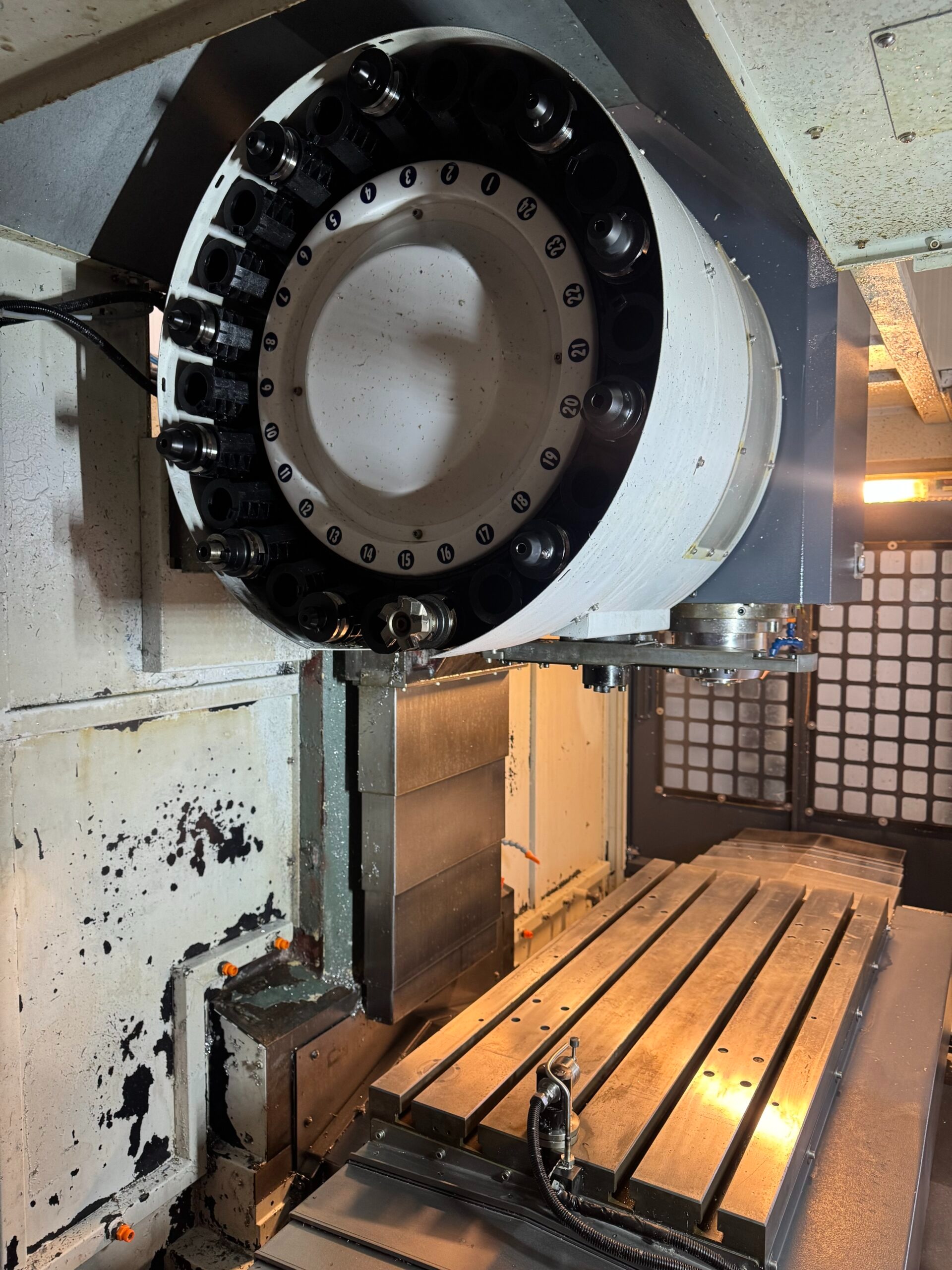

| Tool magazine | 24 positions |
| Air pressure | 6–8 bar |
| Made in | Taiwan |

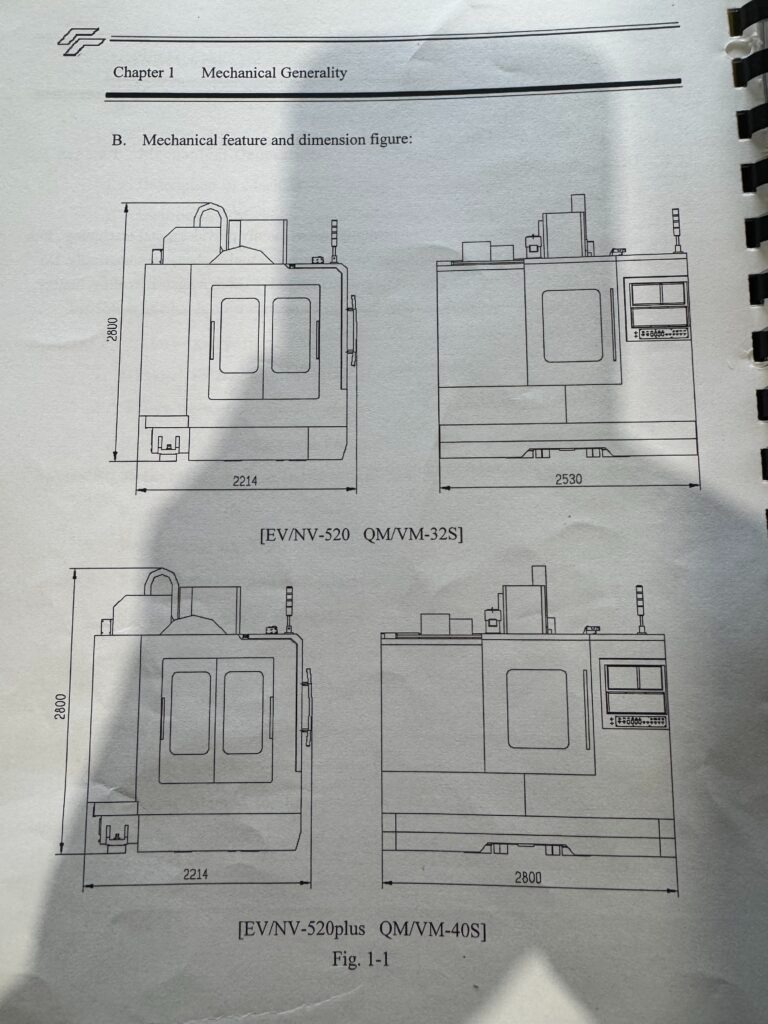

| Dimensions | L 2800 x W 2185 mm |
| Weight | 6300 kg |
| Availability | Immediately |
Description

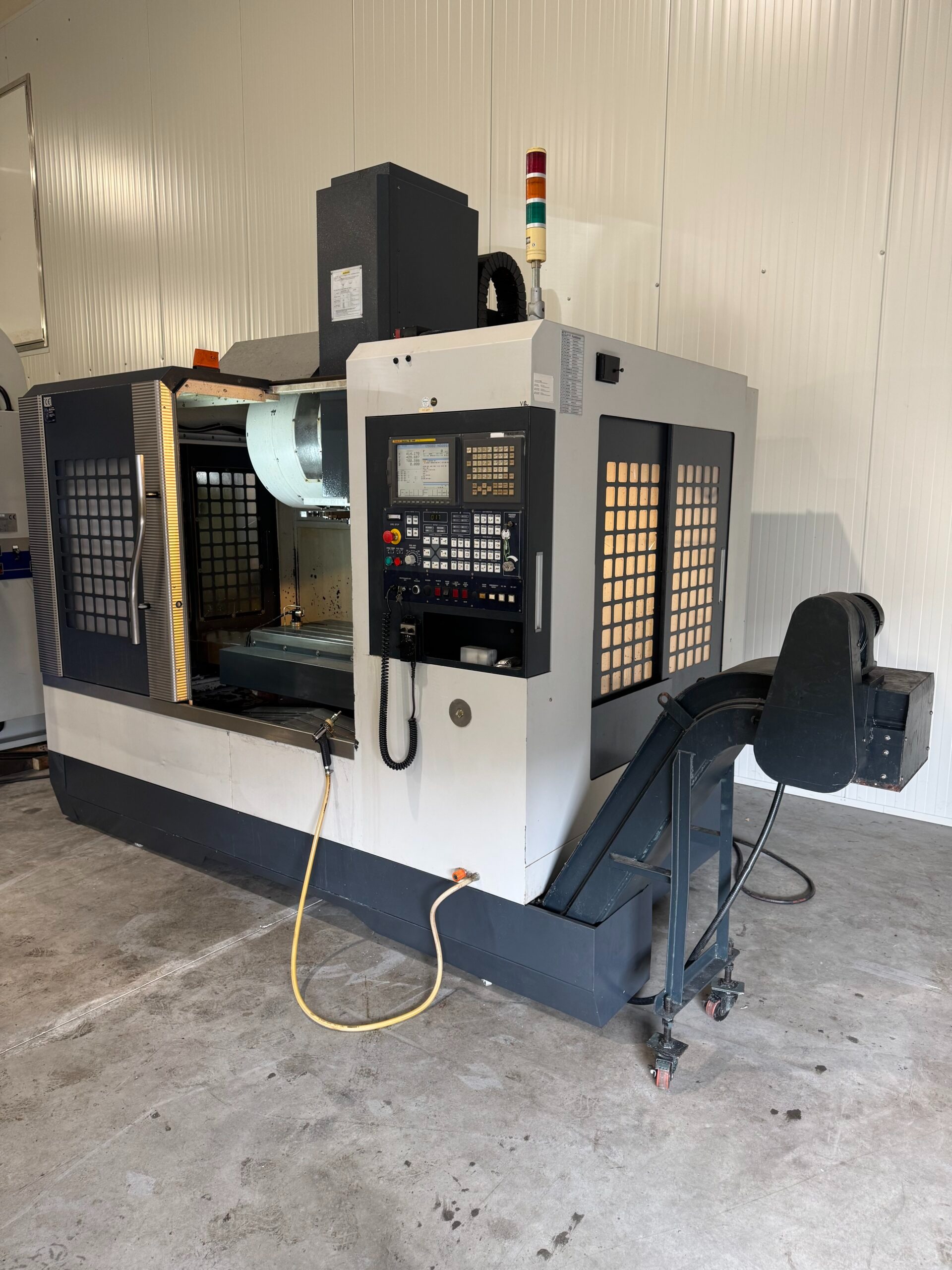

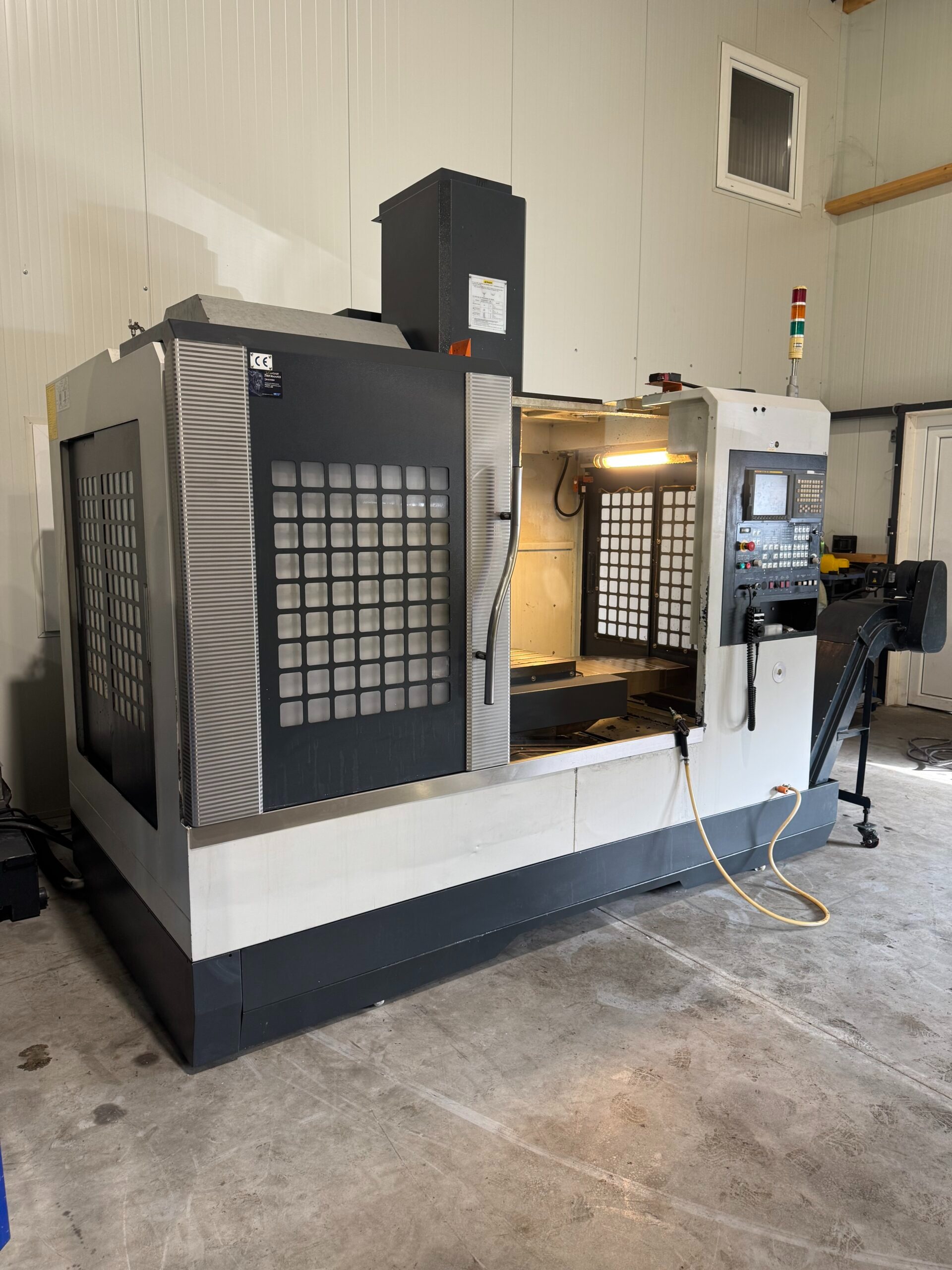

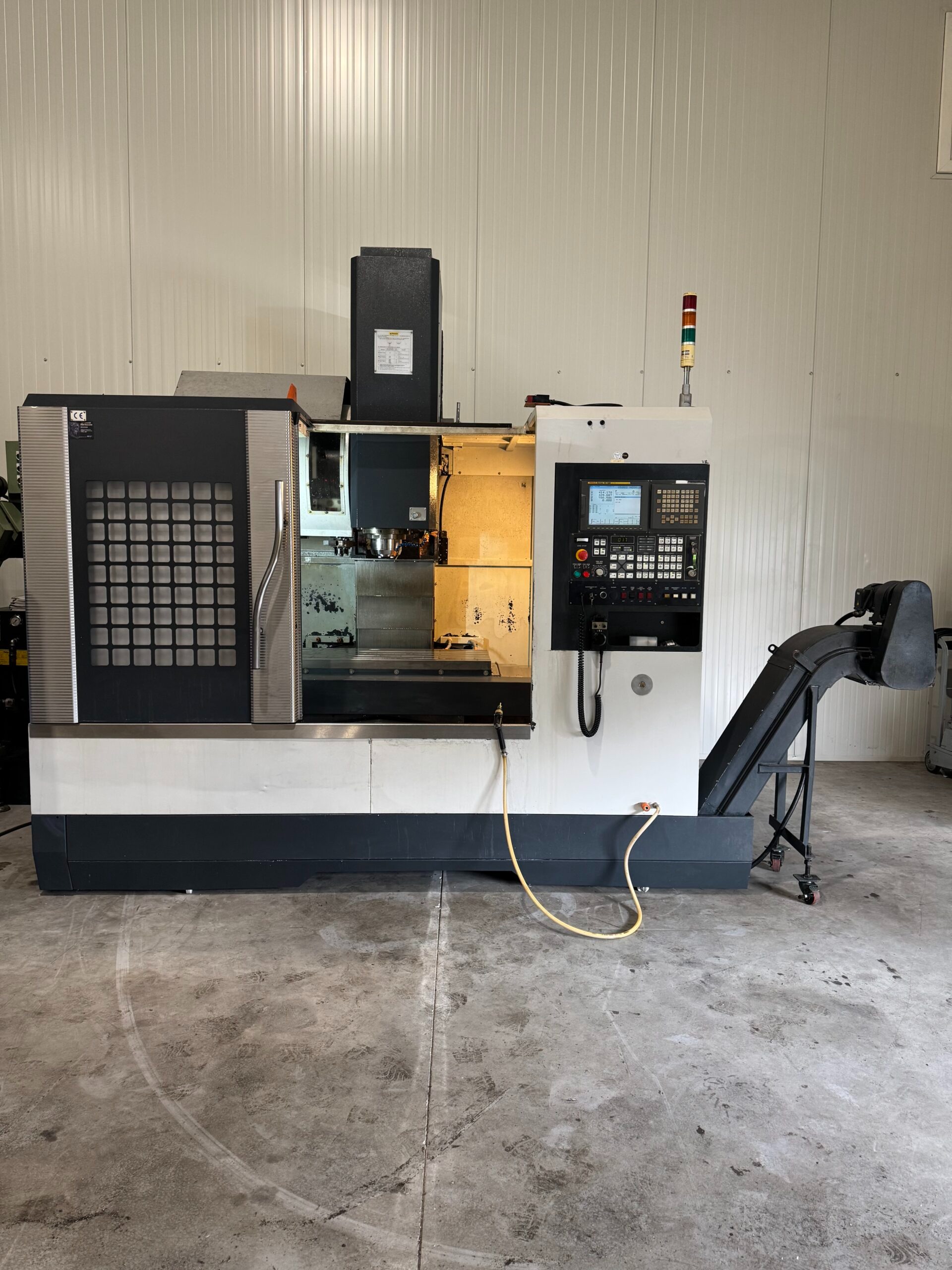

Explore offering this pre-owned FEELER QM-40SA CNC Milling Machine, manufactured in 2007 and currently located in The Netherlands. This robust metalworking machine is equipped with a Fanuc 18i-MB control unit and features a working area of 1150 × 520 mm, making it suitable for precise machining of medium-sized components. It offers a spindle speed of up to 10,000 rpm and a motor power range of 15 to 18.5 kW, delivering strong performance, high accuracy, and excellent productivity for milling, drilling, and complex machining applications.
Features:
- Internal cooling (high-pressure spindle cooling).
- External cooling.

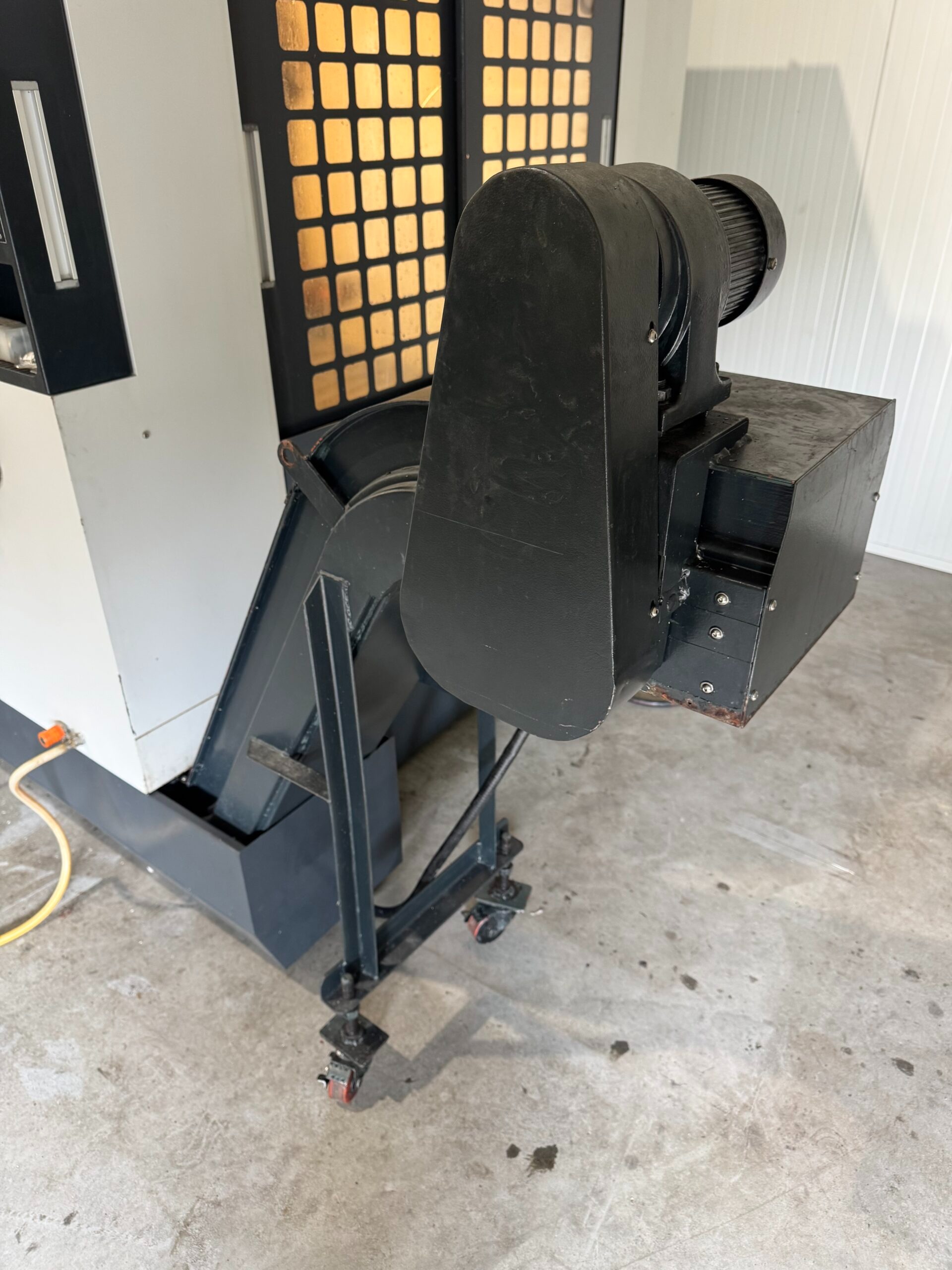

- Chip washing.
FEELER Machinery
FEELER is a trusted manufacturer of CNC (Computer Numerical Control) machinery, known for producing reliable, high-precision equipment at a competitive price point. Originating from Taiwan, the brand has built a solid reputation in the global market, supplying machines to industries such as automotive, aerospace, and general metalworking. Their product range includes vertical machining centers (VMCs), horizontal machining centers (HMCs), and CNC lathes, all designed for consistent performance and durability in demanding production environments. FEELER machines are valued for their robust construction, accuracy, and low maintenance requirements.
