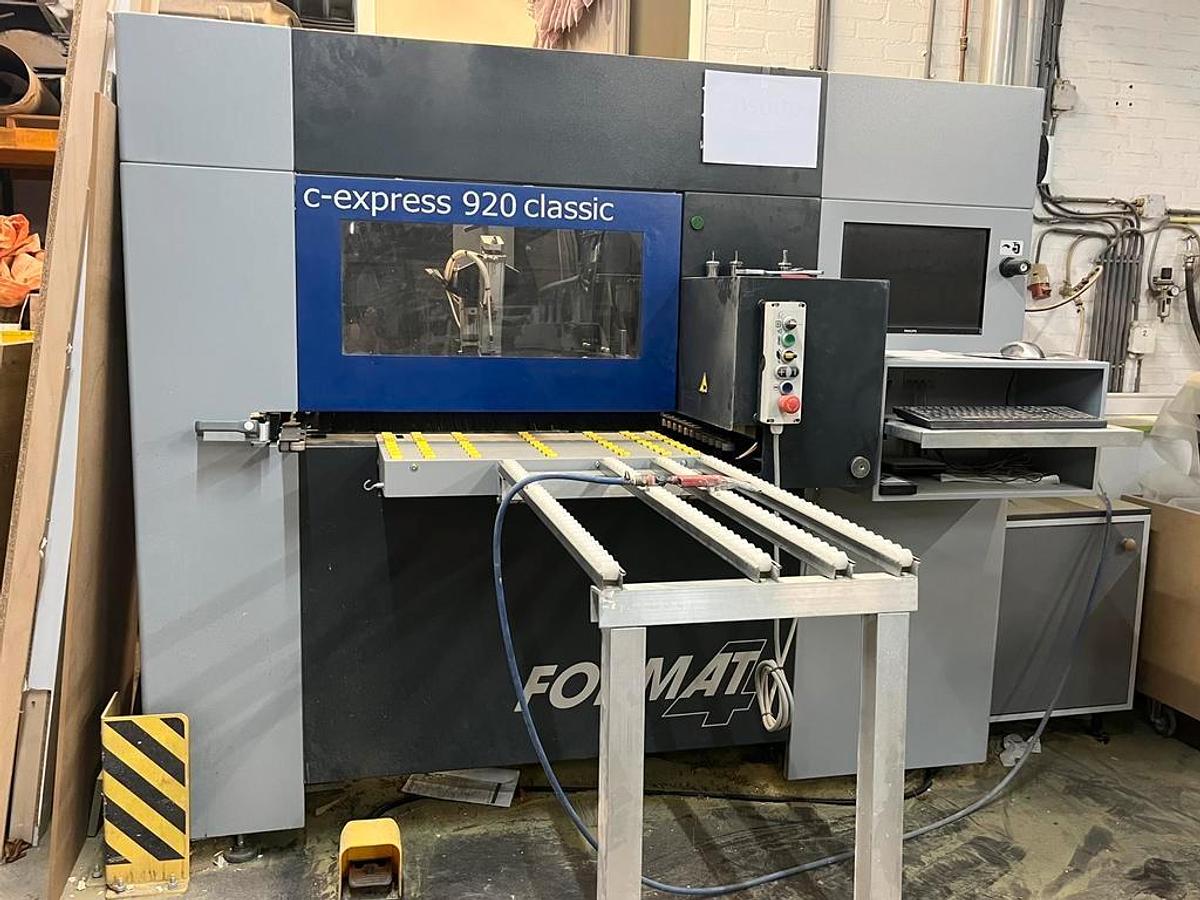

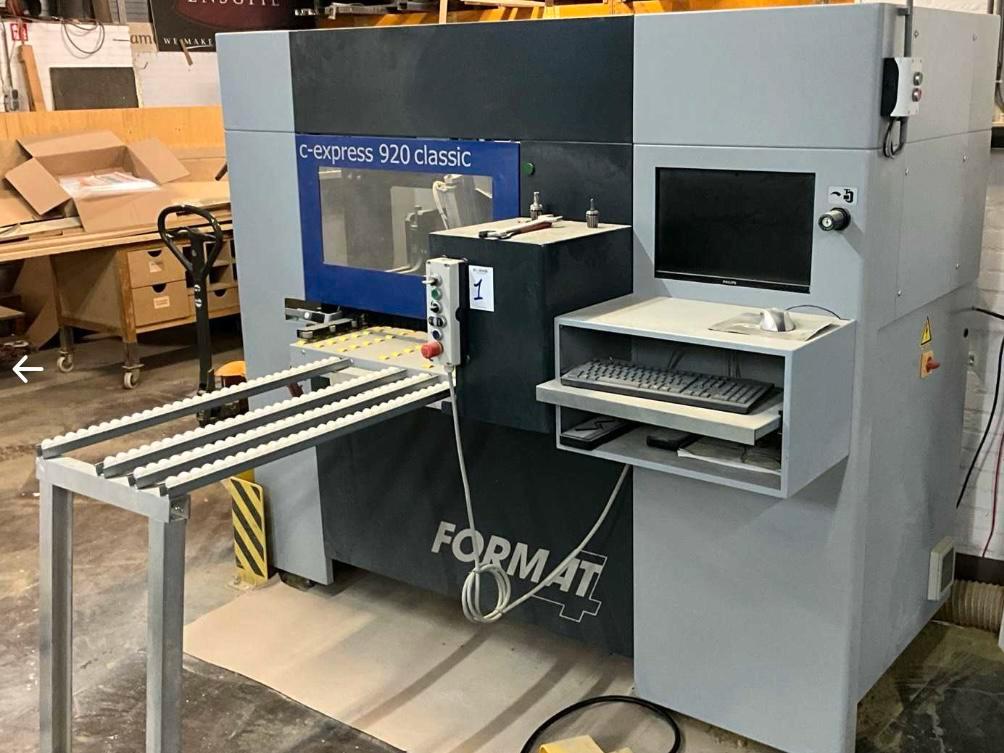

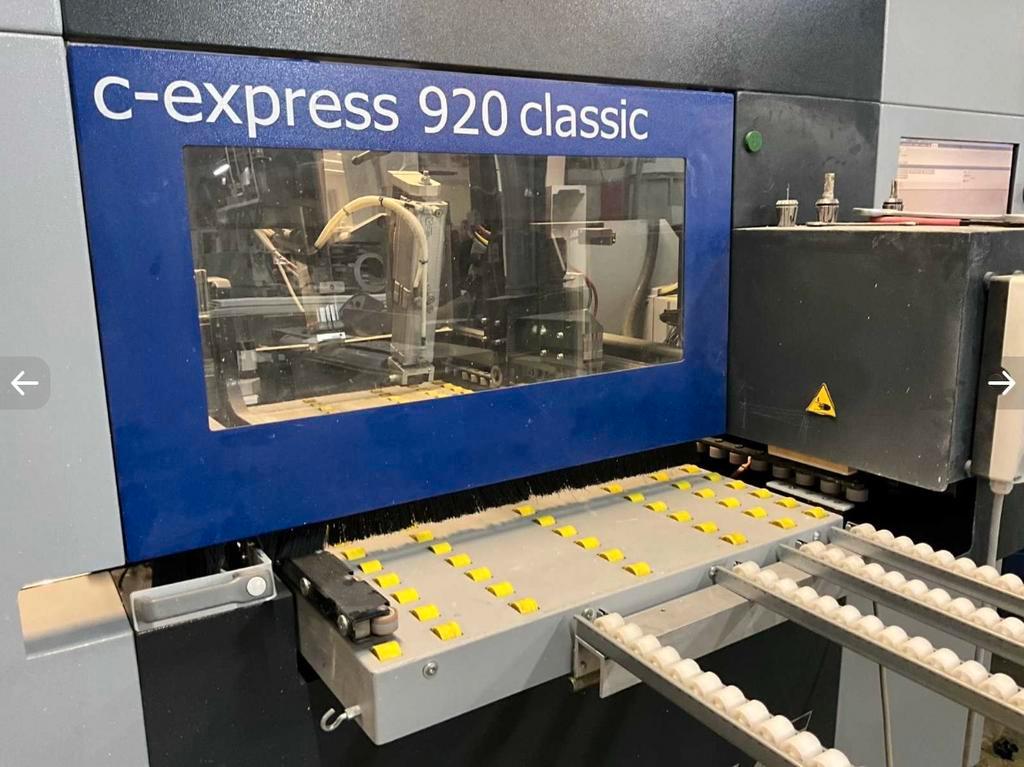

Format 4 C-express 920 Classic I CNC Drilling Machine
Specifications
| Manufacturer | Format 4 |
| Model | C-express 920 Classic |
| Condition | Used |
| Stock Number | 600876448 |

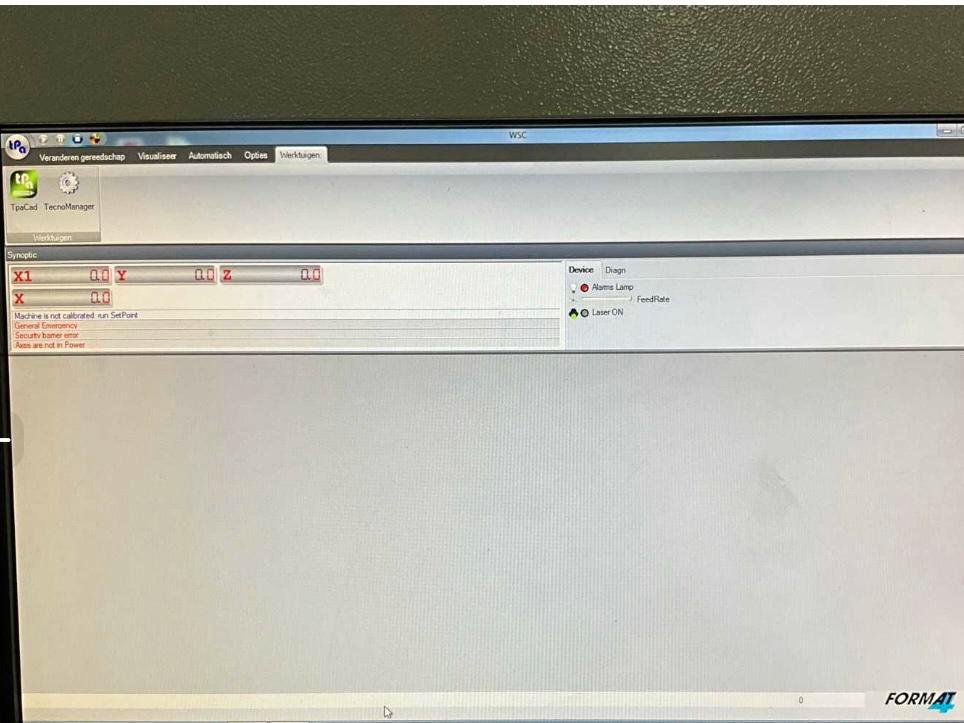

| Control unit | Woodflash |
| Workpiece width | 70 - 180 mm |
| Max panel size | X 3000, Y 920, Z 50 mm |
| Min panel size | X 280, Y 70, Z 10 mm |
| Saw blade unit | 250 mm |
| Router head | 3,3 kW |
| Panel thickness | 45 mm |
| Panel weight | 100 kg |

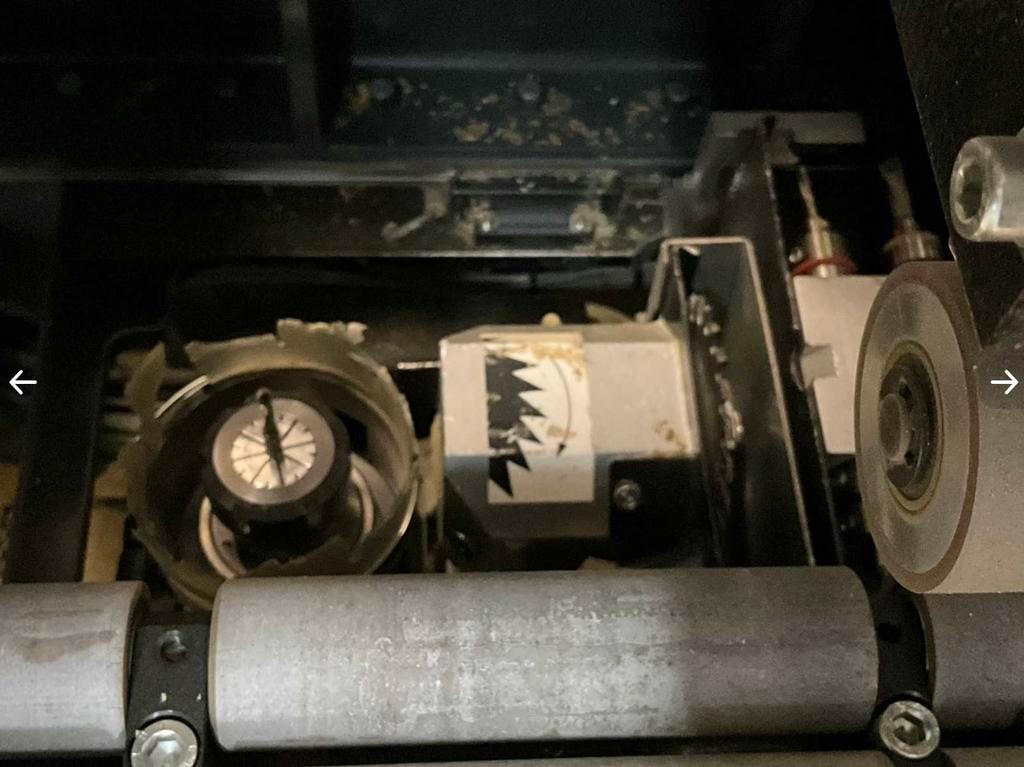

| Drilling head | 9 vertical spindles, 8 horizontal spindles in X, 1 saw for grooving in X |
| Panel feeding speed | 10 – 20 m/min |
| Spindles speed rotation | 12000 rpm |
| Saw blade speed rotation | 12000 rpm |
| Air pressure | 6 bar |
| Total power | 7 kW |
| Made in | Germany |
| Dimensions | L 2100 x W 1605 x H 1950 mm |
| Weight | 850 kg |
| Availability | Immediately |
Description
Explore offering this pre-owned Format 4 C-express 920 Classic CNC Drilling Machine and currently located in The Netherlnds. This precise and efficient woodworking machine accommodates a workpiece width ranging from 70 to 180 mm, features a high-speed spindle with a rotation speed of up to 12,000 rpm, and is powered by a total installed power of 7 kW, making it well suited for accurate and productive drilling operations in furniture and panel manufacturing.
Included with the Machine:

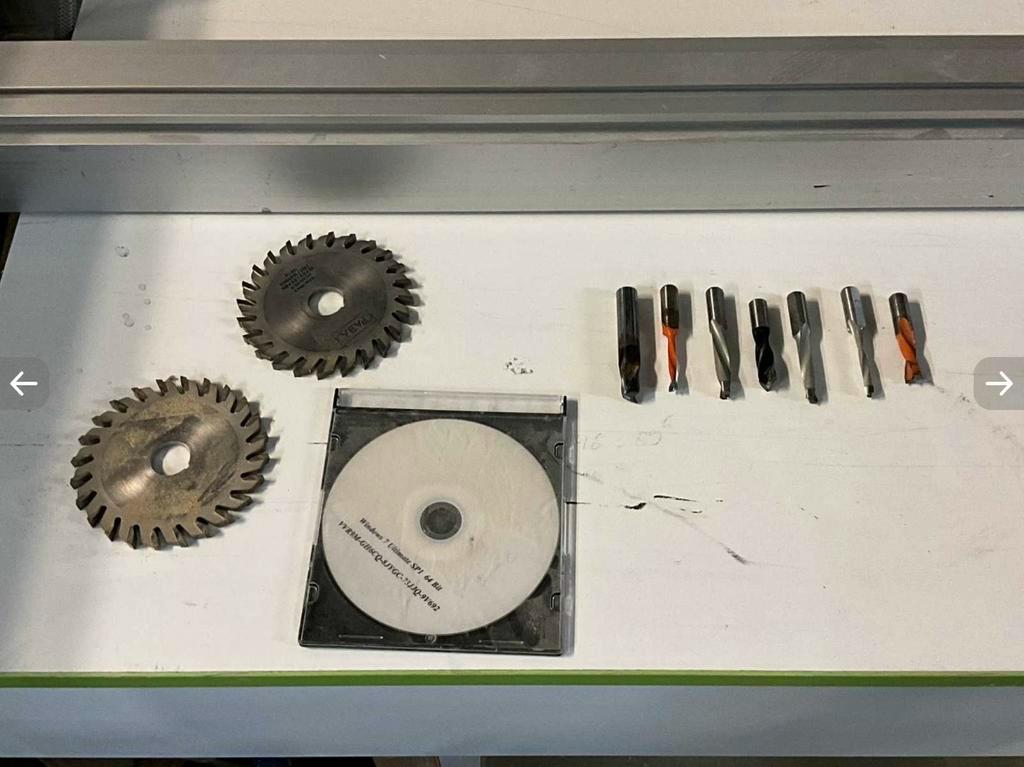

- Fully equipped with cutters and drill bits.
Format 4 Machinery
Format 4 is a distinguished brand in the woodworking machinery industry, celebrated for its unwavering commitment to precision and innovation. Their extensive product range includes CNC machining centers, edge banding machines, panel saws, planers, thicknessers, drilling machines, and sanding machines. Format 4's machinery is known for its exceptional precision, versatility, and efficiency, making it the top choice for woodworkers and woodworking businesses seeking high-quality and reliable equipment to deliver outstanding results in a wide array of woodworking applications.
