SCM Startech CN V I CNC Drilling I 2024
Specifications
| Manufacturer | SCM |
| Model | Startech CN V |
| Year | 2024 |
| Condition | Used |
| Stock Number | 600876427 |
| Max. panel dimensions X-Y-Z | 3000 x 900 x 50 mm |
| Min. panel dimensions X-Y-Z | 300 x 90 x 10 mm |
| Max. speed X-Y axes | 20 m/min |
| Drilling head | 2 (1+1) spindles X axis - 2 (1+1) spindles Y axis - 7 (4X-4Y of which one in common) spindles Z axis |
| Blade diameter | 125 mm |
| Blade thickness | 6 mm |
| Blade rotation speed | 5700 rpm |
| Spindle speed | 4460 rpm |
| Motor power | 2.2 kW |
| Dimensions | L 3704 x W 1455 x H 2209 mm |
| Weight | 1200 kg |
| Availability | Immediately |
Description

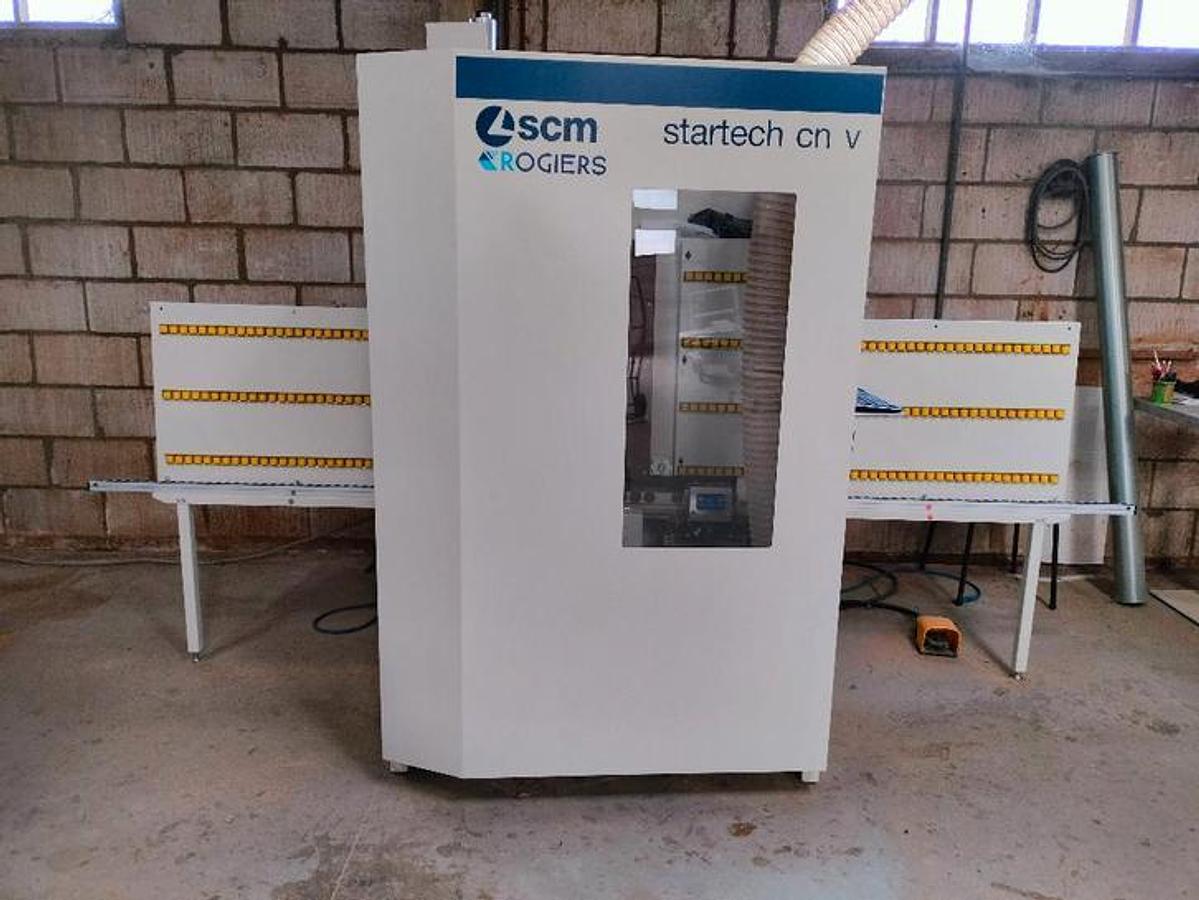

We are offering this pre-owned SCM Startech CN V CNC Drilling, manufactured in 2024 and currently located in Belgium. With an X-Y-Z working area of 3000 x 900 x 50 mm, it’s ideal for handling larger panels. The spindle speed of 4460 rpm and a robust motor power of 2.2 kW enable smooth, fast drilling operations with excellent accuracy. Built by SCM, known for durable, high-performance machines, this model is perfect for streamlined production in any woodworking setup.
Advantages:
- High Spindle Speed.
- Efficient Motor Power.
- Compact Design.
SCM Machinery
SCM, an esteemed Italian brand founded in 1952 and headquartered in Rimini, is a leading manufacturer of woodworking and metalworking machinery. Known for its unwavering commitment to innovation and precision, SCM offers a comprehensive range of equipment that caters to a diverse array of industries. In woodworking, SCM's portfolio includes CNC machining centers, edgebanders, panel saws, sanding machines, and drilling machines, while its metalworking solutions encompass CNC machining centers, metal cutting and forming equipment, and rolling machines. Additionally, SCM provides machinery for working with plastic and composite materials. With a rich legacy spanning decades, SCM is a trusted global partner, delivering advanced technology and superior craftsmanship to elevate manufacturing processes across various sectors.
