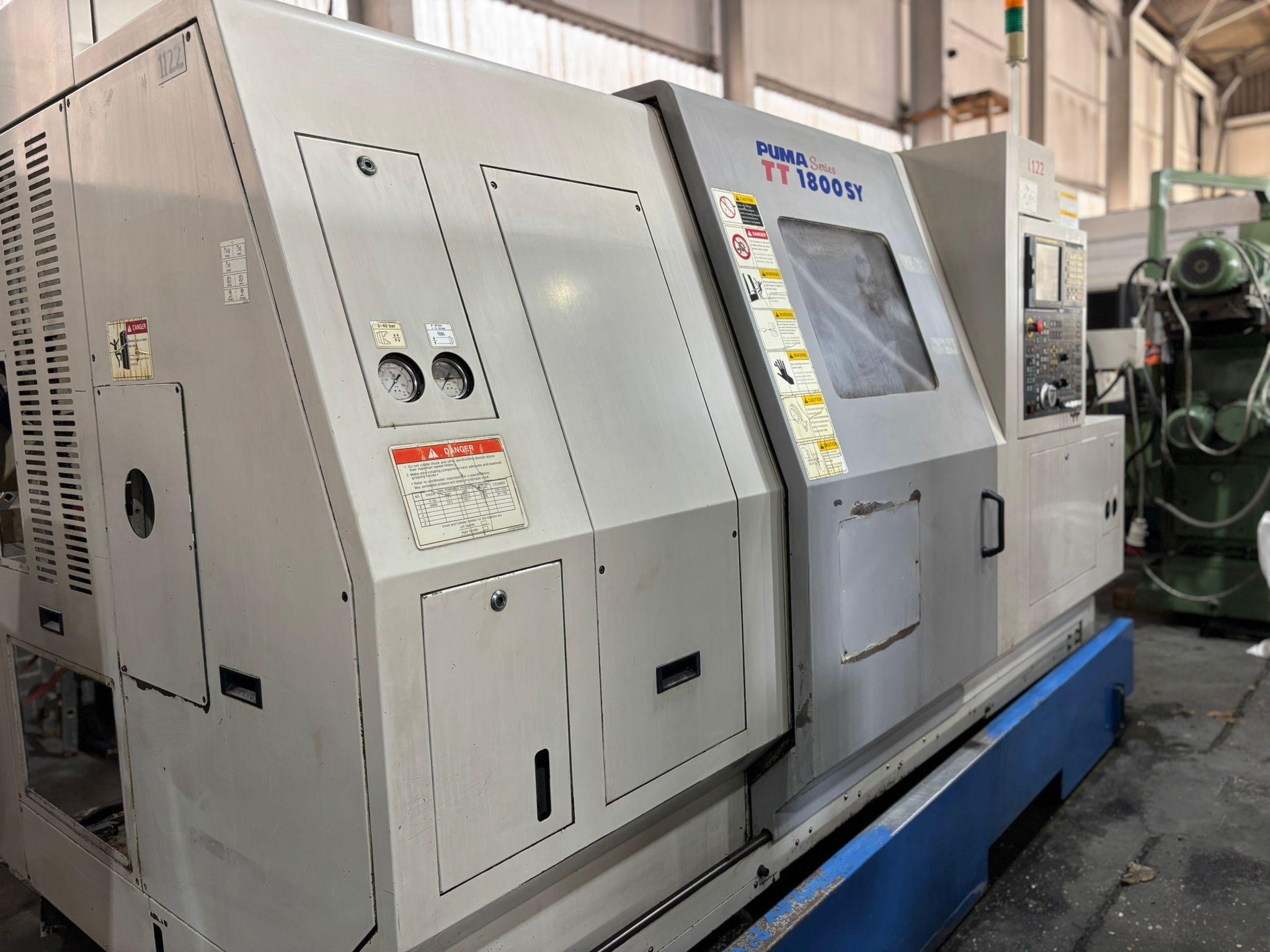

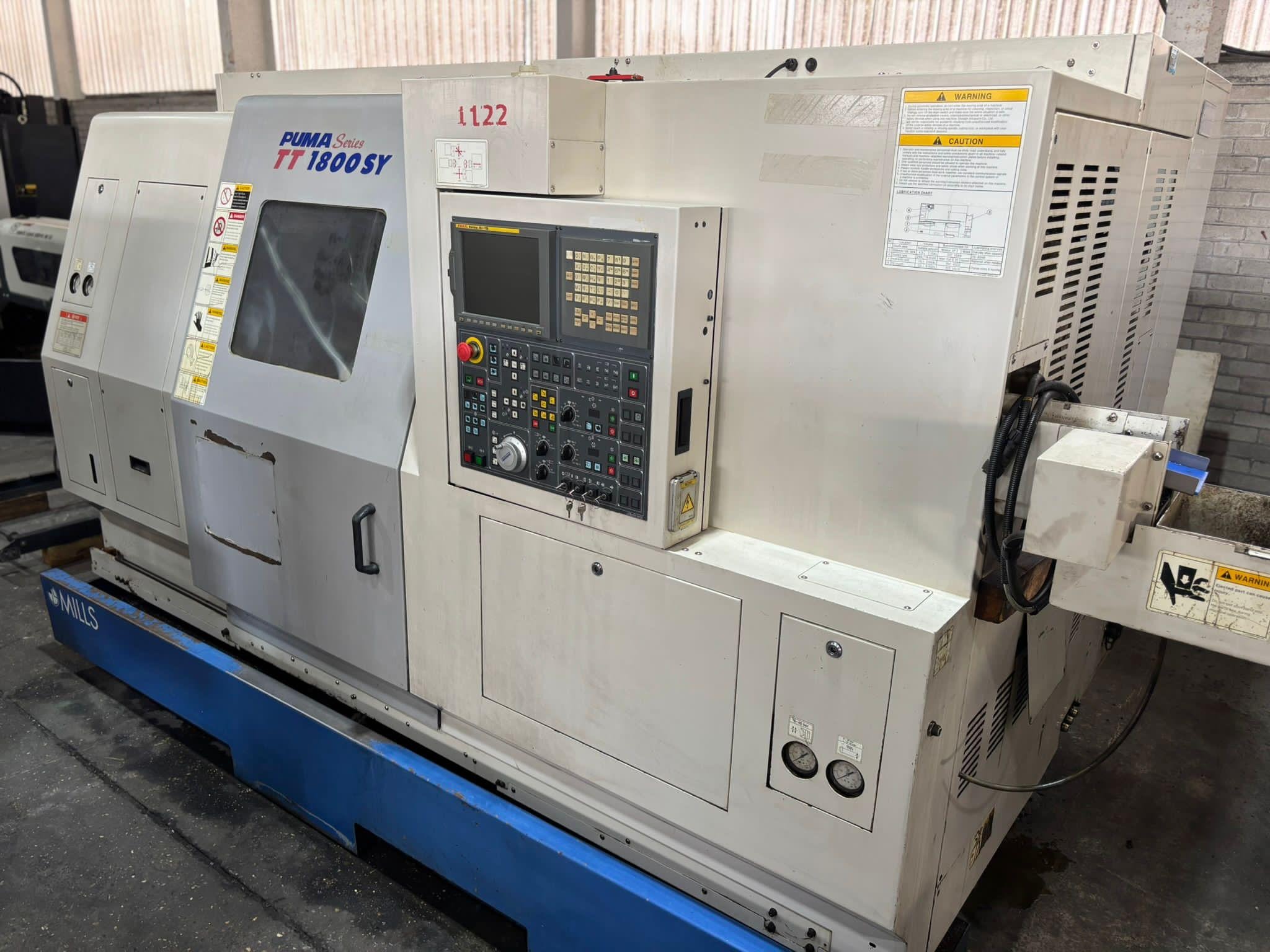

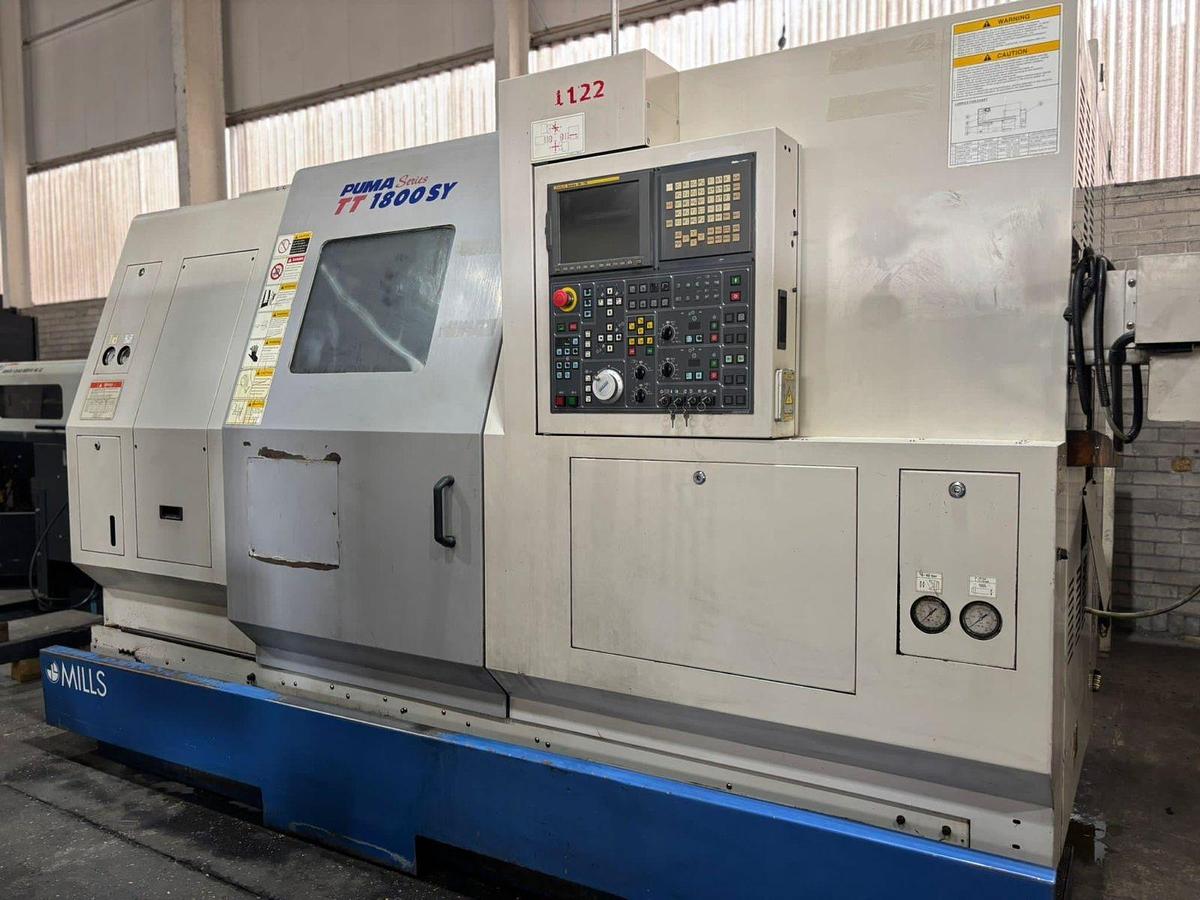

Doosan Puma TT 1800 SY I CNC Lathe I 2007
Specifications
| Manufacturer | Doosan |
| Model | Puma TT 1800 SY |
| Year | 2007 |
| Condition | Used |
| Stock Number | 600876406 |

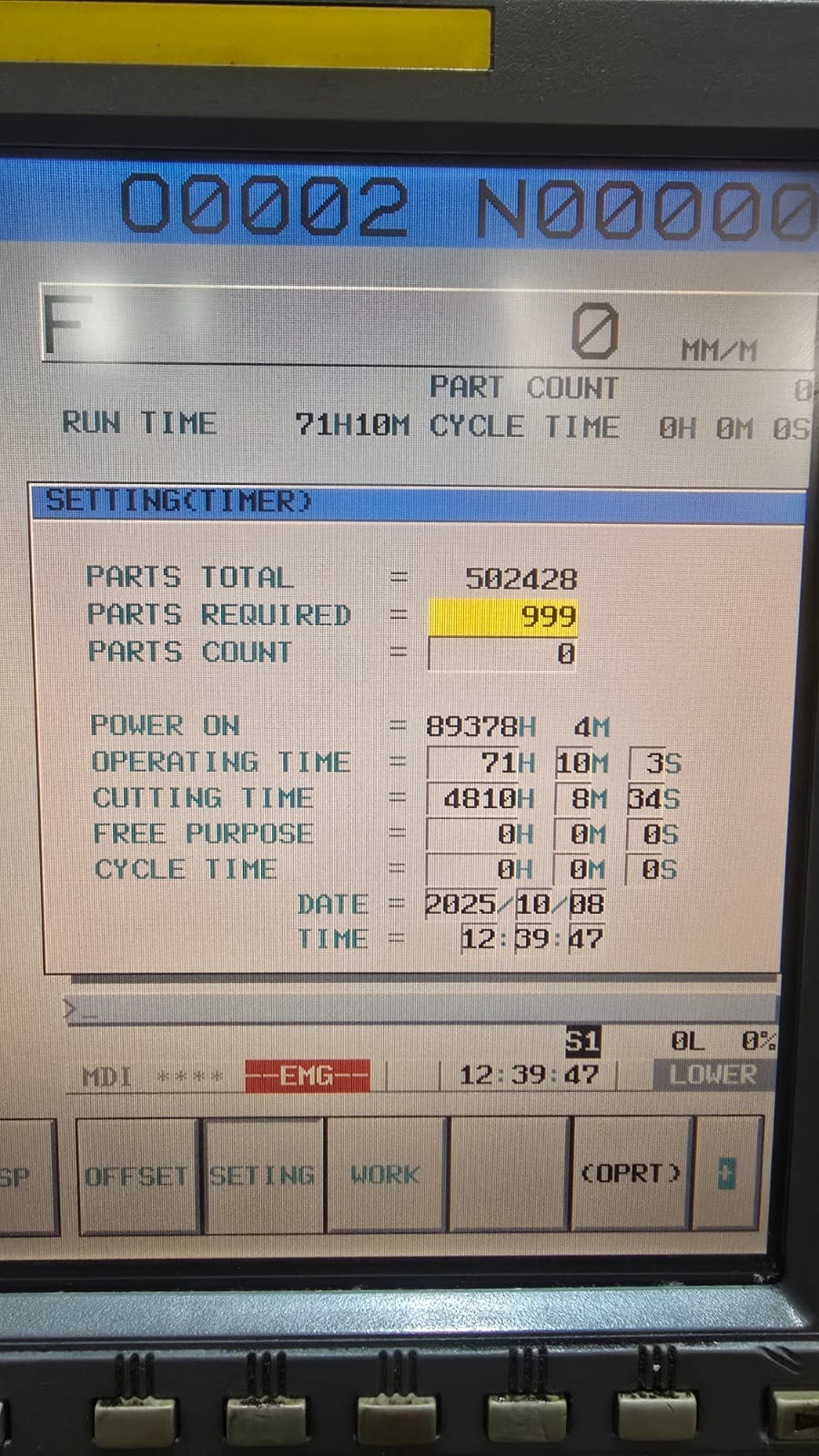

| Control Unit | Fanuc 18i-TB |
| Turning length | 600 mm |
| Turning diameter | 230 mm |
| Diameter above bed | 300 mm |
| Through hole diameter (left spindle) | ⌀68 mm |
| Through hole diameter (right spindle) | ⌀65 mm |
| Chuck size | 203 mm |
| X1-Axis travel | 165 mm |
| X2-Axis travel | 190 mm |
| Z1-Axis travel | 700 mm |
| Z2-Axis travel | 720 mm |
| Y-Axis travel | ±50 mm |
| X-Y-Z axis rapid traverse | 20 - 7.5 - 40 m/min |
| Axes | X1, X2, Z1, Z2, Y, C1, C2, B |
| Main spindle speed | 5000 rpm |
| Main Spindle Power | 25 kW |
| Sub Spindle Speed | 5000 rpm |
| Sub Spindle Power | 22 kW |

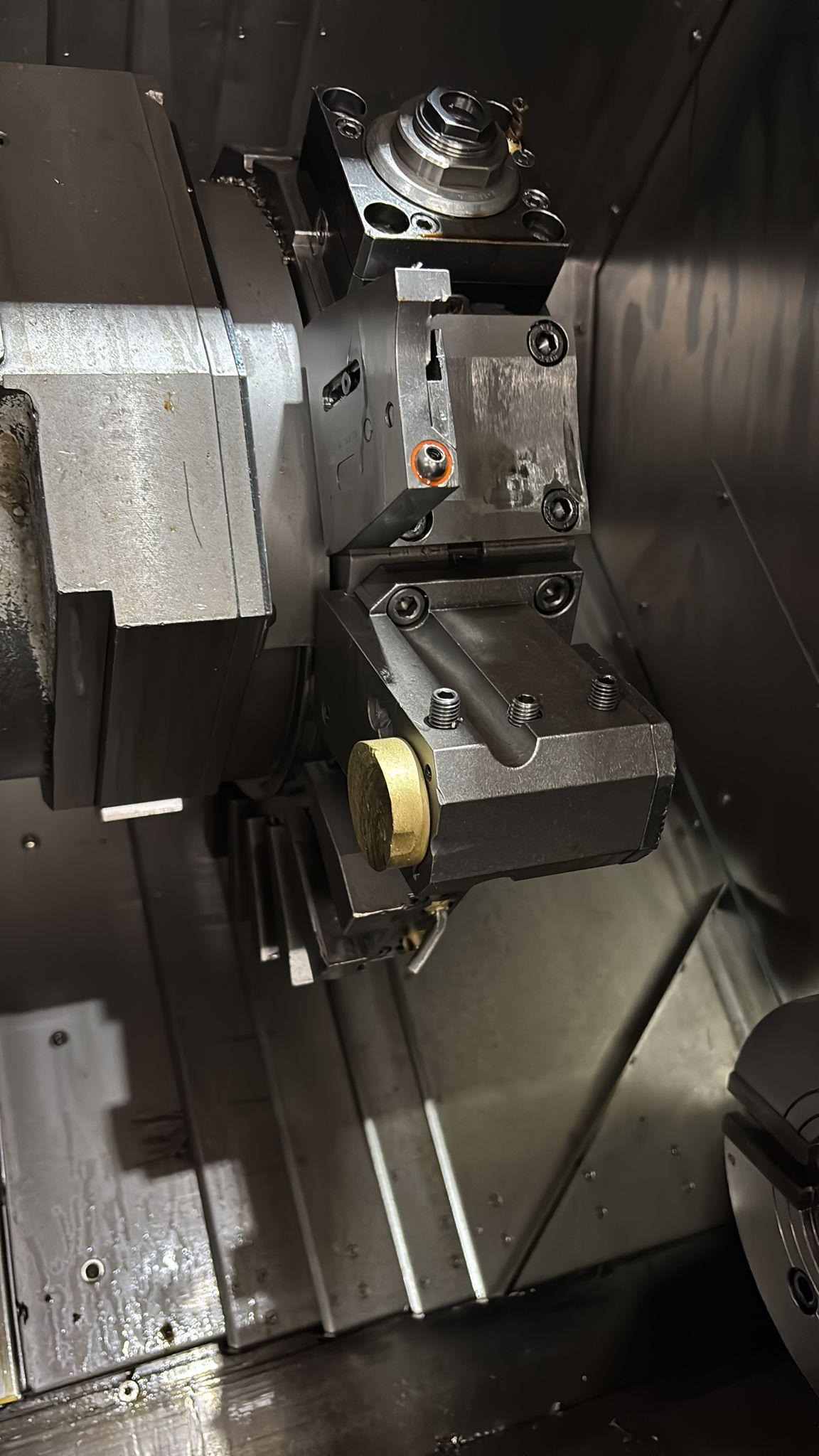

| Turret stations | 24 positions |
| Dimensions | L 3905 x W 2070 x H 2080 mm |
| Weight | 8800 kg |
| Availability | Immediately |
Description
Explore offering this pre-owned Doosan Puma TT1800 SY CNC Lathe, manufactured in 2007 and currently located in Spain. This precision-engineered machine is equipped with a cutting-edge control unit, the 18i-TB, and boasts impressive specifications to elevate your metalworking operations. With a substantial turning diameter of 230 mm, a high-performance 5000 rpm spindle speed, and a robust 22 kW motor power, the Doosan Puma TT 1800 SY stands as a testament to cutting-edge innovation and reliability in the industrial sector.
Included with the Machine:

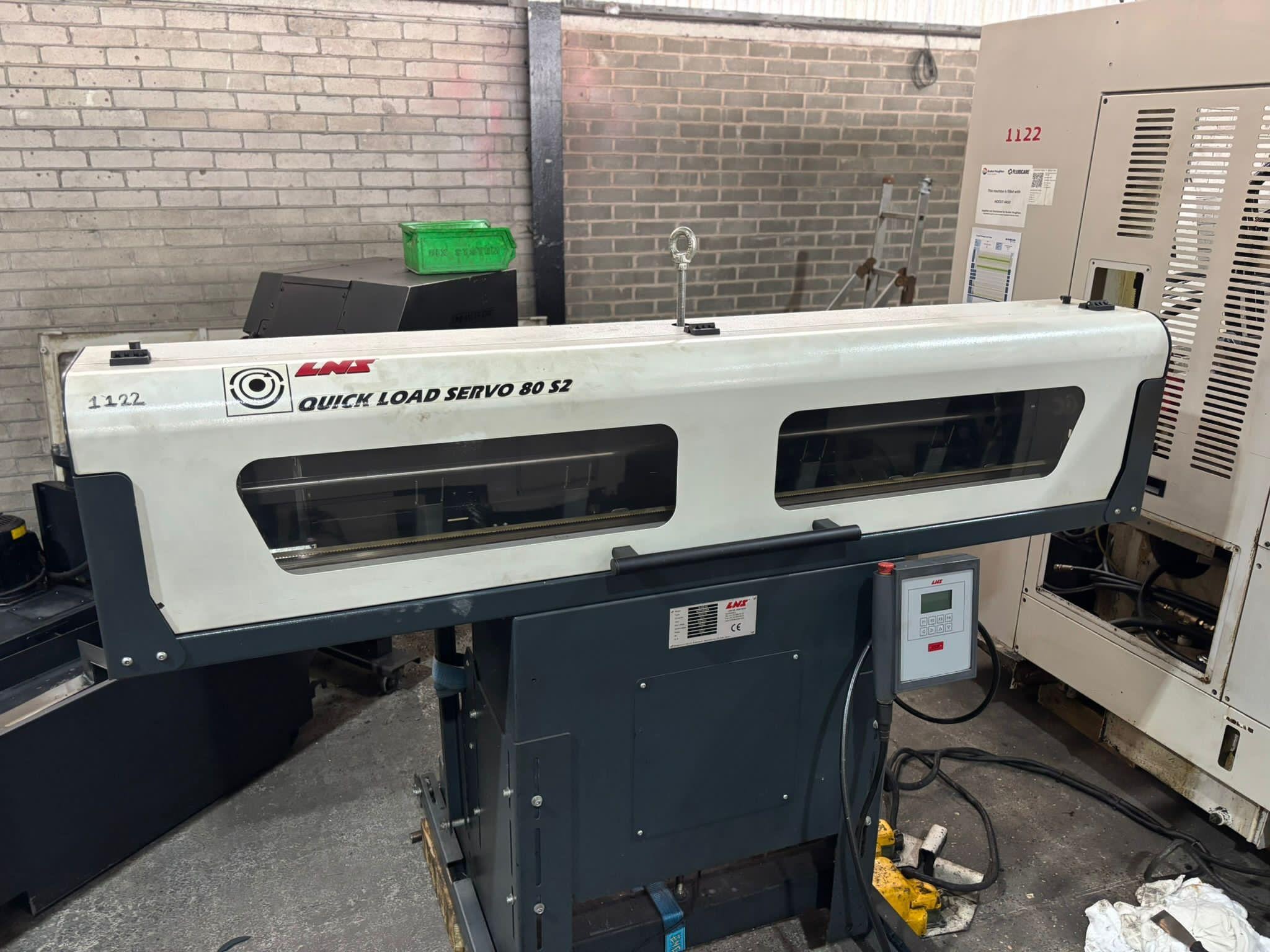

- Bar feeder.
Doosan Machinery
Doosan, a prominent brand within the Doosan Group, is a globally respected manufacturer of industrial machinery known for its legacy of precision engineering and technological innovation. With a history spanning over a century, Doosan offers a wide range of high-quality equipment, including CNC lathes, vertical and horizontal machining centers, multi-axis machining centers, boring mills, and additive manufacturing technology. Renowned for its commitment to quality, durability, and efficiency, Doosan's machinery is integral to various industries, such as aerospace, automotive, and energy, meeting the rigorous demands of modern industrial production while maintaining a strong global presence and reputation for reliability.
____
*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.
**Bidding is subject to specific circumstances and negotiation terms.
***Ex. Works Prices - Machine located at site. Dismantling and decommissioning not included. Basic packaging provided if required for transport.
