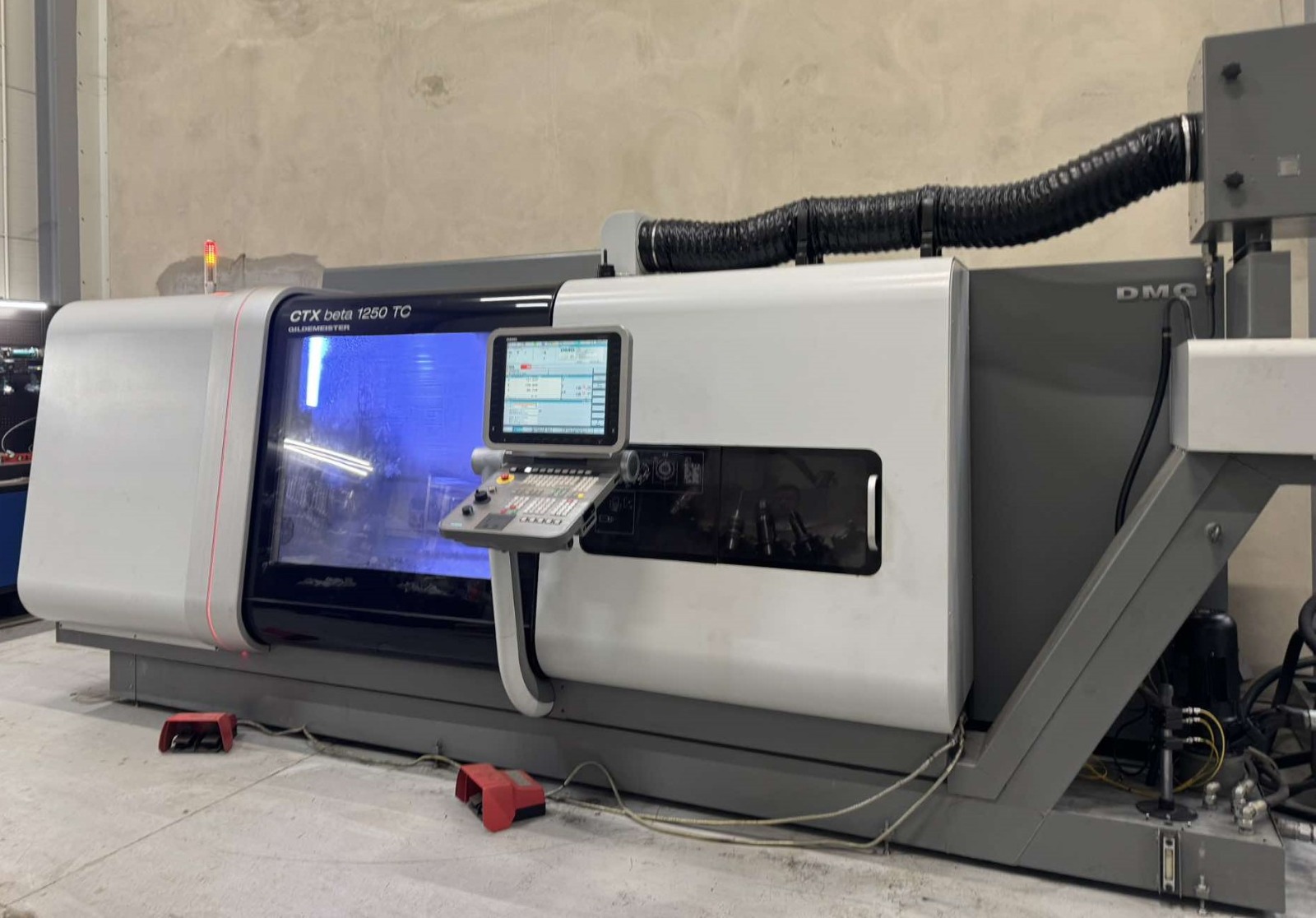

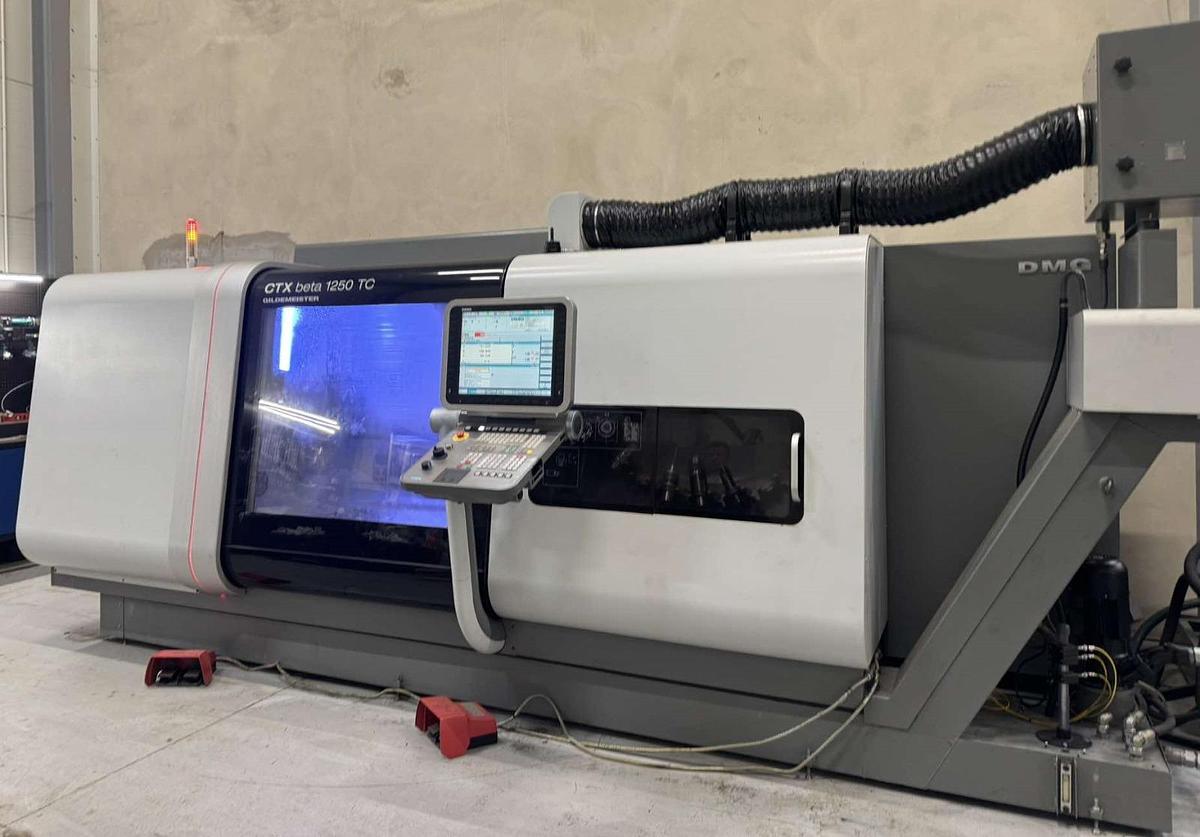

DMG Gildemeister CTX Beta 1250 TC I CNC Lathe I 2009
Specifications
| Manufacturer | DMG Gildemeister |
| Model | CTX Beta 1250 TC |
| Year | 2009 |
| Condition | Used |
| Stock Number | 600876305 |

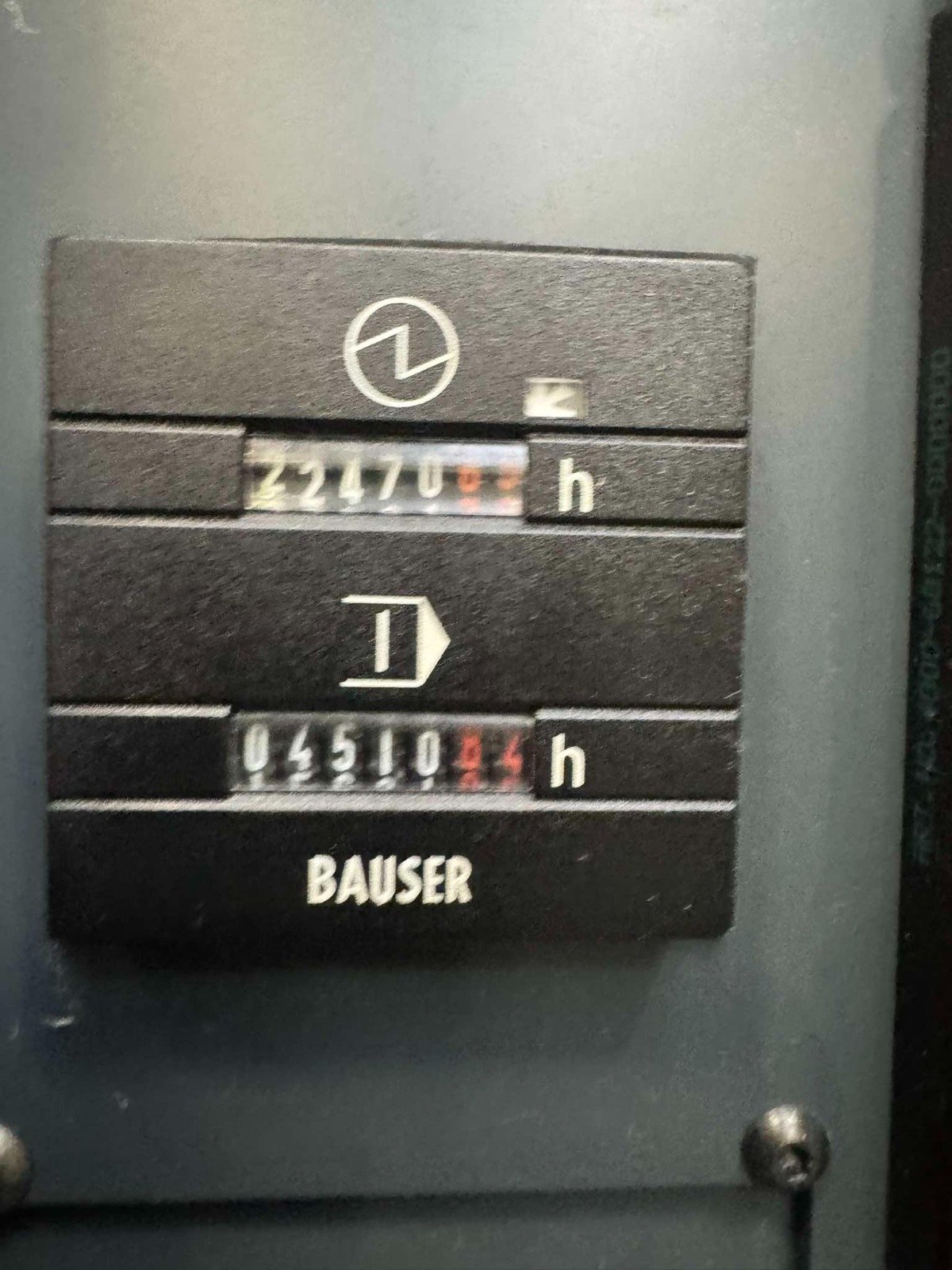

| Working hours | 22470 h |
| Working hours Spindle | 4510 h |

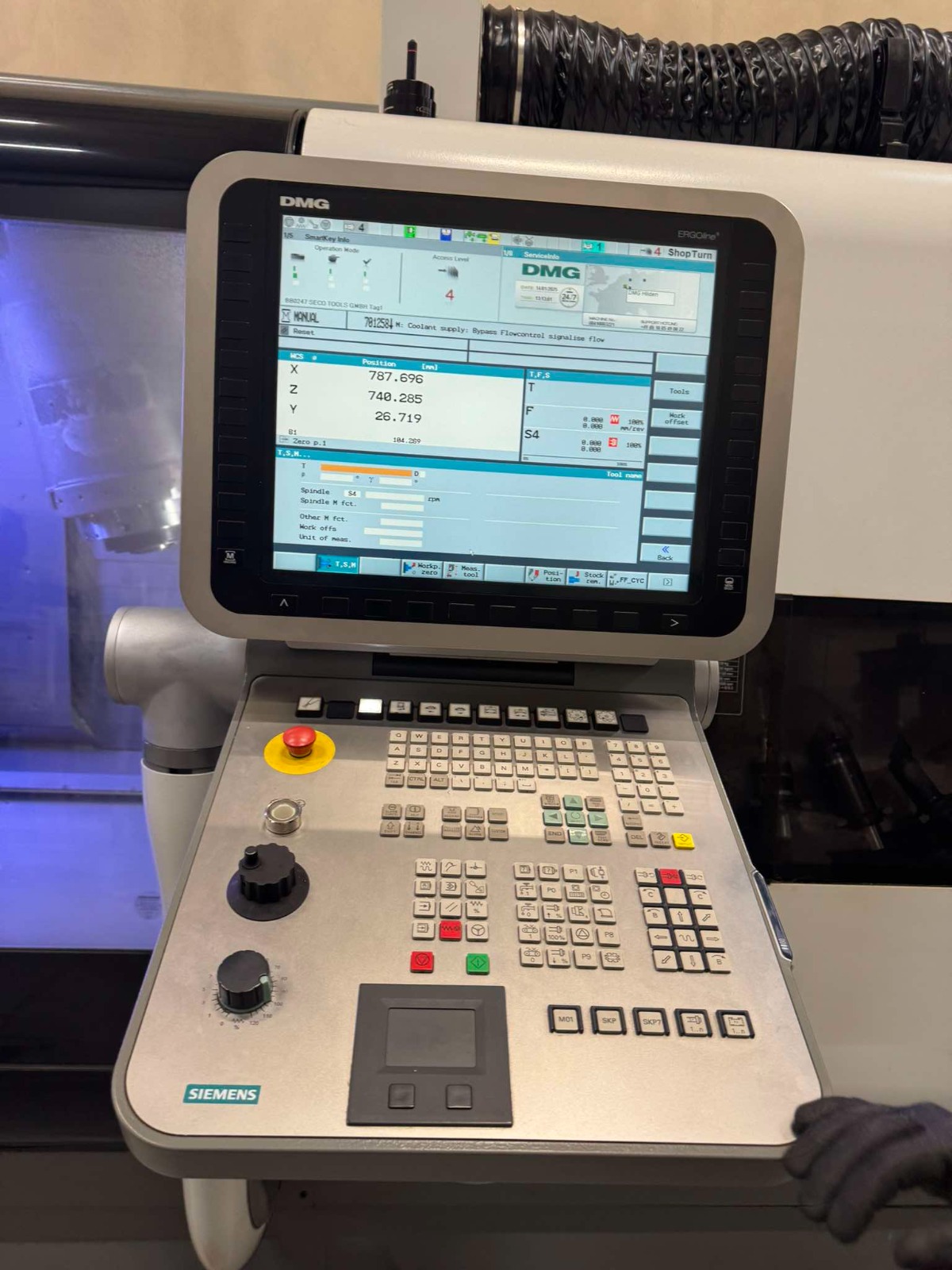

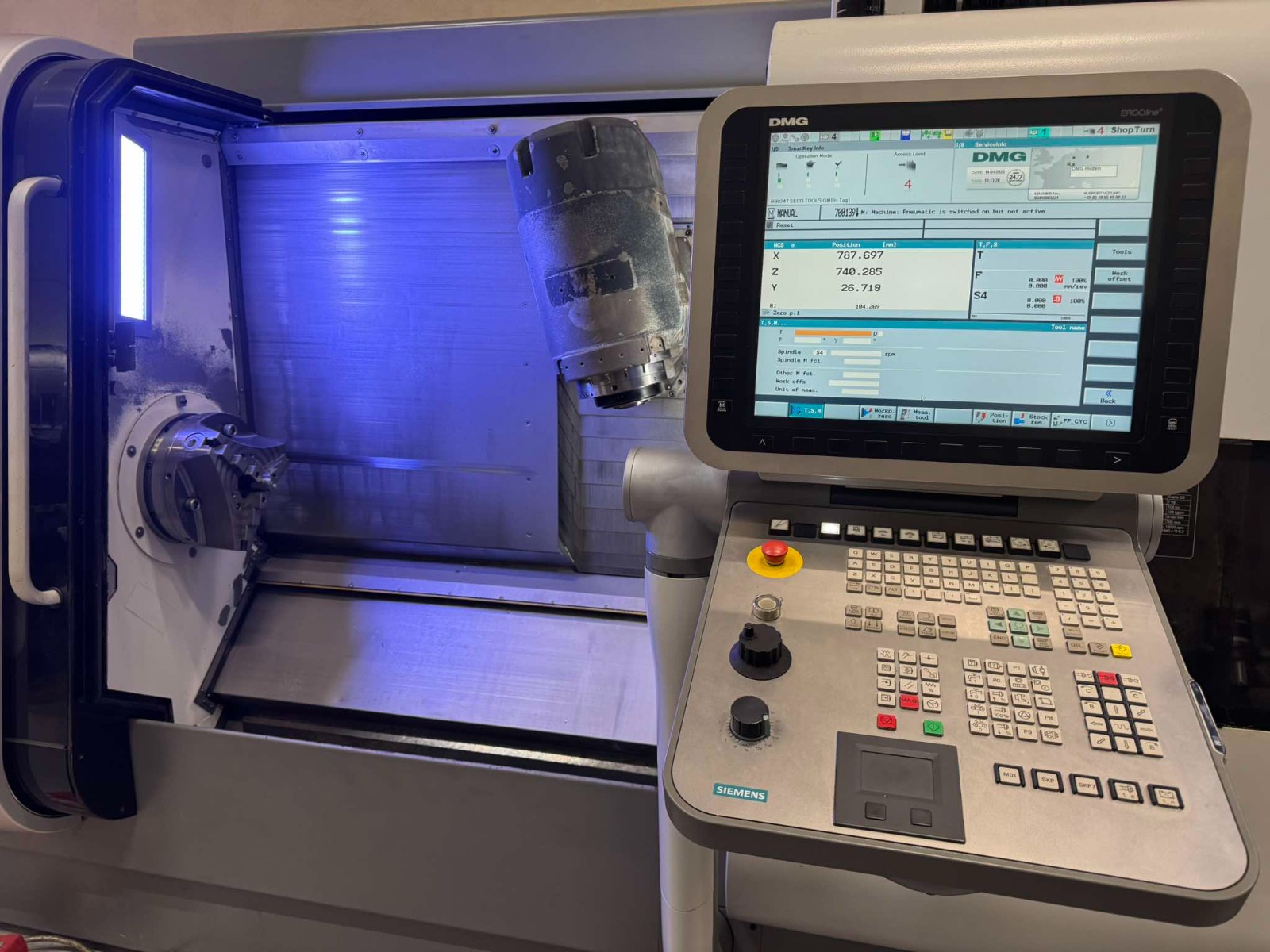

| Control unit | Siemens Sinumerik 840D SL |
| Max. workpiece diameter | 500 mm |
| Max. workpiece length | 1250 mm |
| Spindle bore diameter | 104 mm |
| X-Axis travel | 320 mm |
| Y-Axis travel | 125 mm |
| Z-Axis travel | 1219 mm |
| B-Axis travel | +/- 110° |
| Spindle taper | HSK 63 |
| Spindle speed | 5000 rpm |
| Turning speed | 12000 rpm |
| Motor power | 22 kW |
| Tool magazine | 24 positions |
| Dimensions | L 5854 x W 3061 x H 2247 mm |
| Weight | 10600 kg |
| Availability | Immediately |
Description
Discover offering this pre-owned DMG Gildemeister CTX Beta 1250 TC CNC Lathe, manufactured in 2009 and currently located in Poland. is a high-performance CNC lathe designed for precise and versatile machining. Equipped with a Siemens Sinumerik 840D SL control unit, it offers excellent accuracy and process reliability. This model features a turning diameter of 500 mm, an impressive turning speed of 12,000 rpm, and a robust 22 kW motor, making it suitable for demanding turning and milling applications.
Features:
- It has a built-in 3D workpiece probe.
- Capto C6 holders.
- Simultaneous machining in 5 axes.
- Hobbing.

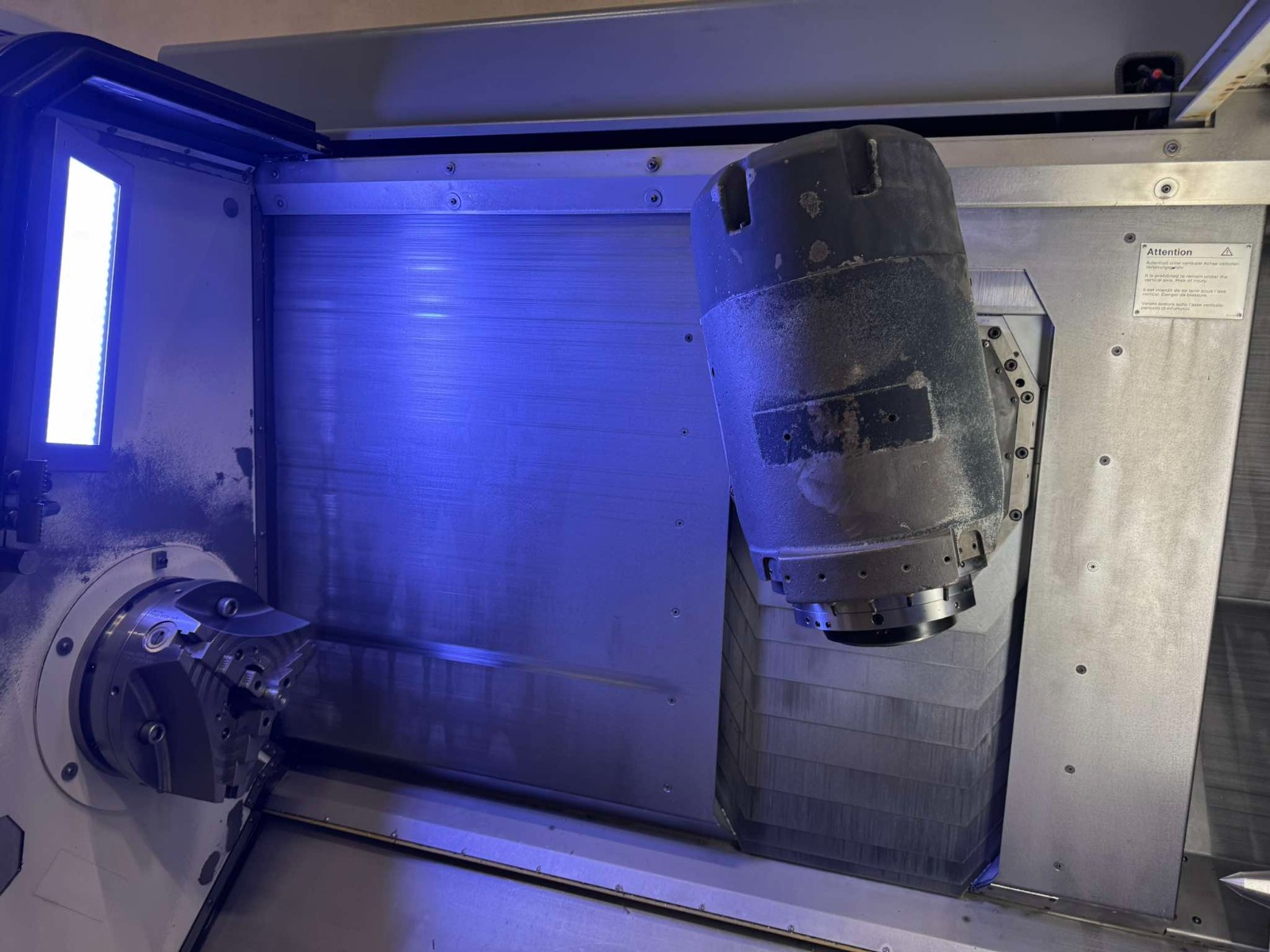

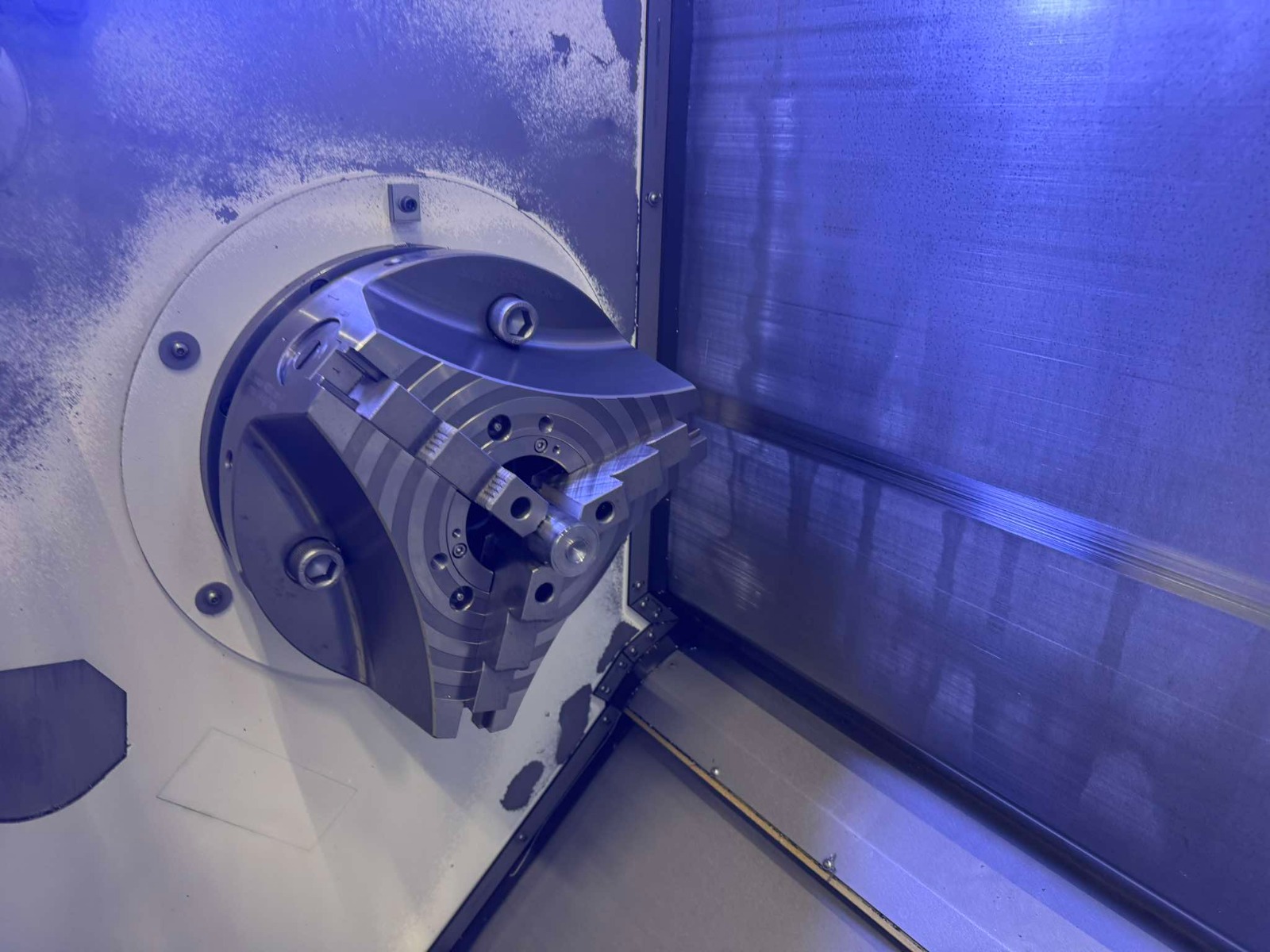

- Forkardt lathe chuck Type 3QLC 315- 88.

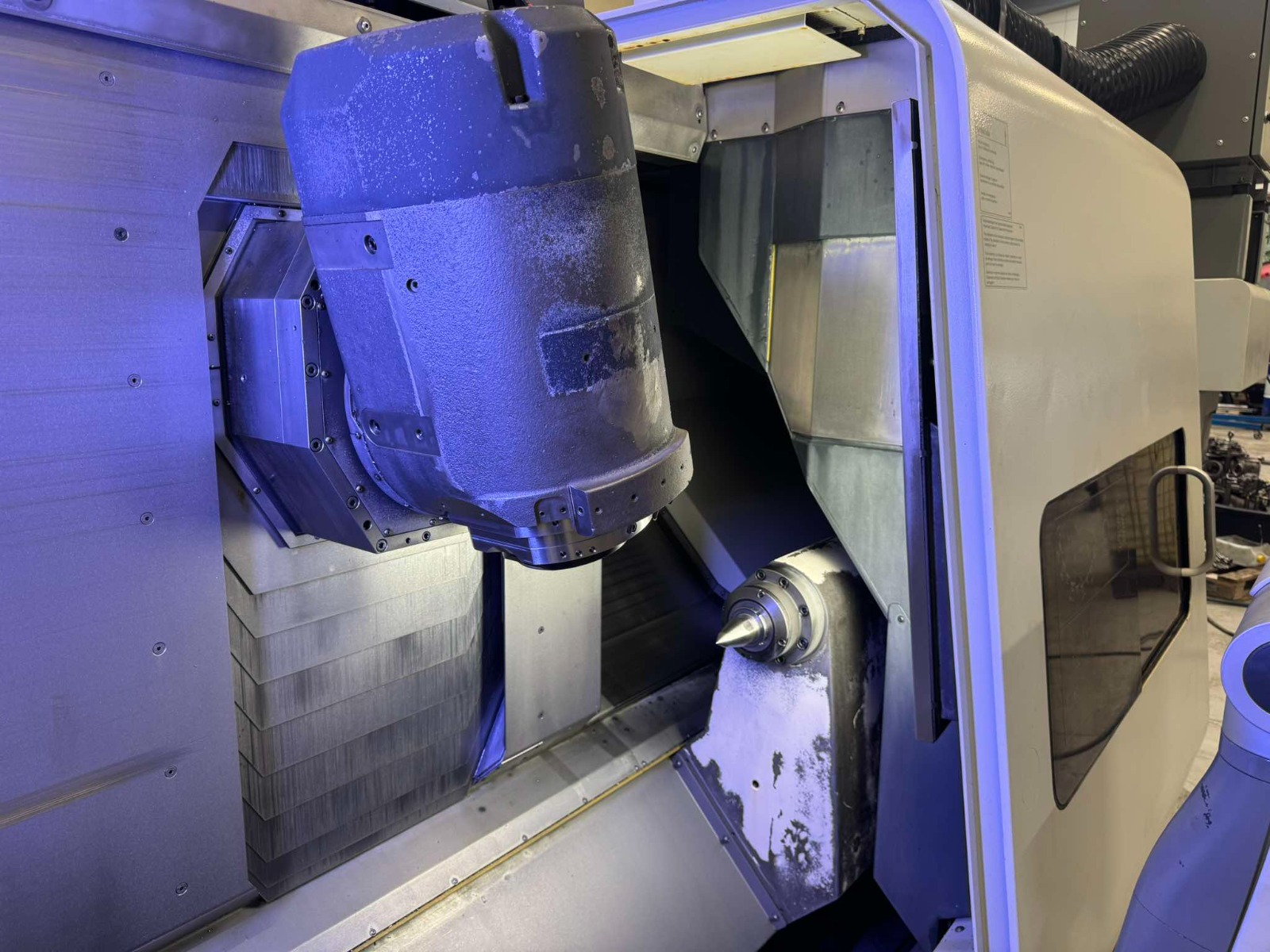

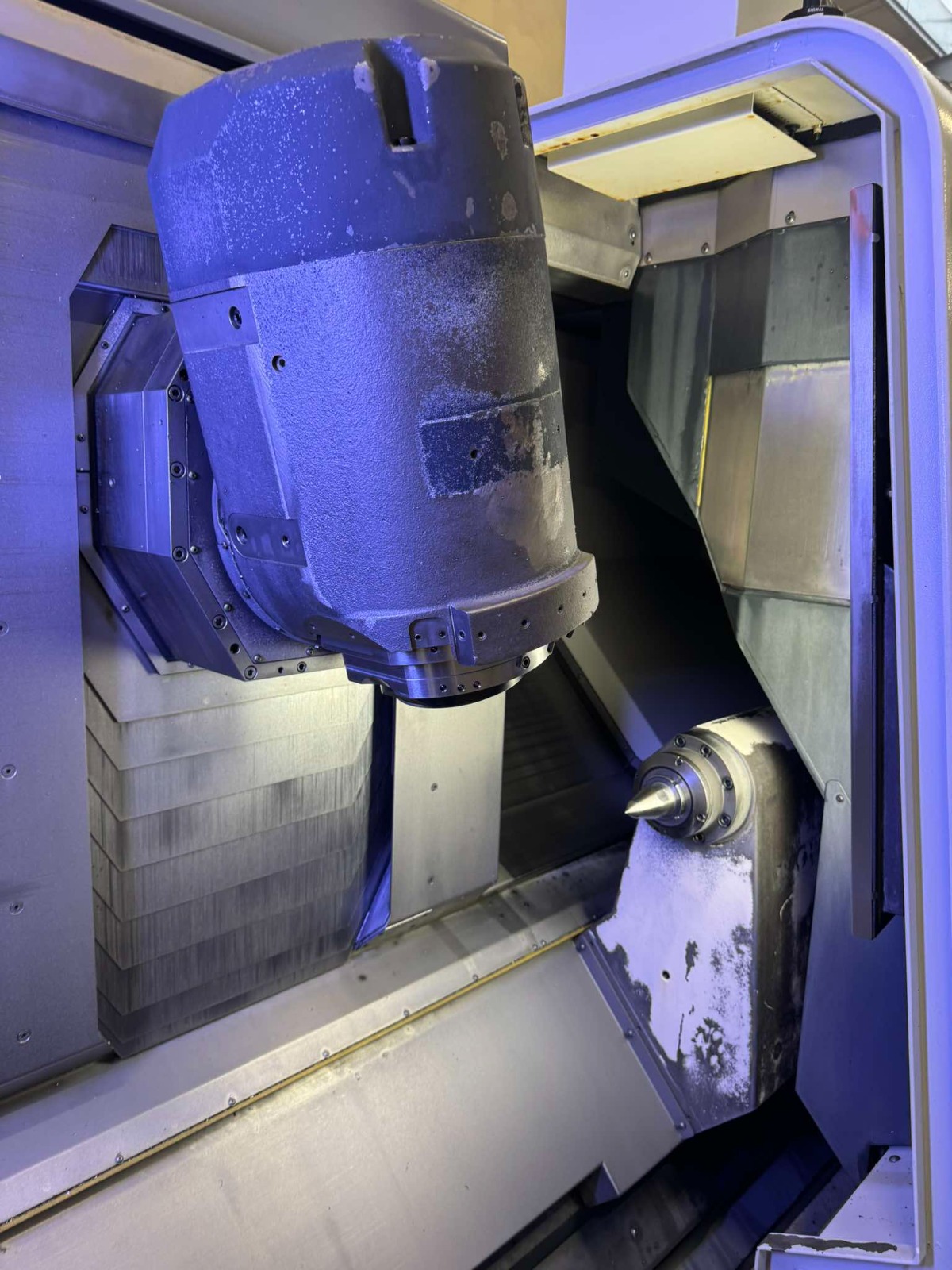

- Tailstock.
- 3D workpiece probe Marposs Type E86.
- 80 Bar through-spindle cooling system.
- Automatic doors.
Included with the Machine:
- It comes with full documentation.
- Chip conveyor.
- Small workpiece collection system with conveyor belt.
- Oil mist extraction.
PLEASE NOTE:
- The milling spindle was replaced three years ago.
- has been fully serviced by DMG, and has a full service history.
- The machine is currently in use and can be inspected and tested.
