Demag Concept 420/810-2300 I Injection Molding I 2006
Specifications
| Manufacturer | DEMAG |
| Model | Concept 420/810-2300 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 600876236 |
| Clamping force | 420 T |
| Screw diameter | 70 mm |
| Injection capacity | 891 cm³ |
| Injection weight | 800 g |
| Height of the plate for mounting the mold | 1200 mm |
| Width of the plate for mounting the mold | 1100 mm |
| Distance between the columns (horizontal) | 800 mm |
| Distance between the columns (vertical) | 710 mm |
| Max injection pressure | 1877 bar |
| Mold height | 820 mm |
| Dimensions | L 7800 x W 2200 x H 2400 mm |
| Weight | 20000 kg |
| Availability | Immediately |
Description

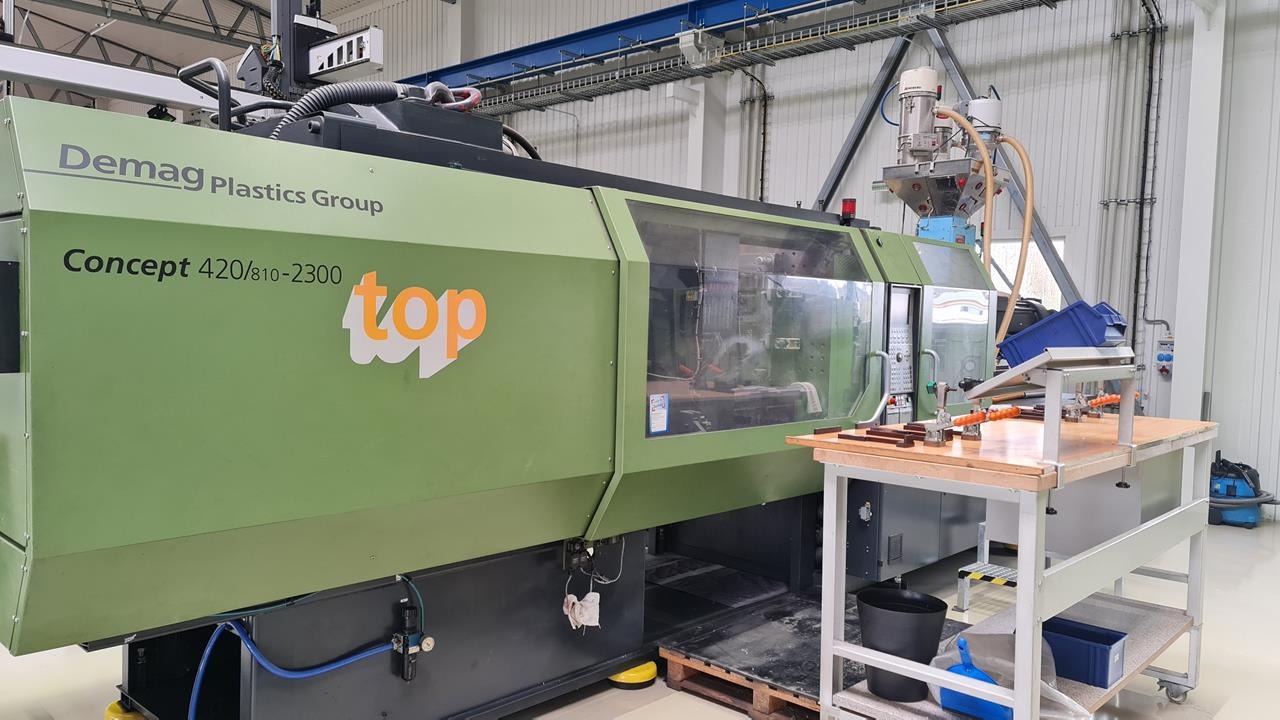

We offer this used Demag Concept 420/810-2300 injection molding machine, manufactured in 2006 and currently located in the Czech Republic. This injection molding machine offers exceptional power and precision for demanding production environments. It features a clamping force of 420 tons, an injection capacity of 891 cm³, and a maximum injection pressure of 1877 bar, ensuring consistent, high-quality part molding. With a mold height of 820 mm, the Demag Concept 420/810-2300 offers excellent flexibility for a wide range of tooling configurations, making it a reliable choice for industrial-scale plastics manufacturing.
Advantages:
- Consistent product quality.
- User-friendly controls.
- Versatile production use.
- Durable and reliable construction.
