Doosan DNM 750 II I Vertical Machining Center I 2018
Specifications
| Manufacturer | Doosan |
| Model | DNM 750 II |
| Year | 2018 |
| Condition | Used |
| Stock Number | 600876209 |
| Working hours | 2000 h |
| Control Unit | Fanuc i-series |
| X-axis travel | 1630 mm |
| Y-Axis travel | 762 mm |
| Z-Axis travel | 650 mm |
| Table length | 1630 mm |
| Table width | 760 mm |
| Max table load | 1500 kg |
| Ma rotary speed of the vertical spindle | 8000 1/min |
| Max feed rate in X-axis | 12000 m/s |
| Max feed rate in Y-axis | 12000 mm/min |
| Max feed rate in Z-axis | 12000 mm/min |
| Spindle taper | ISO 40 |
| Power spindle | 15 kW |
| Max number of tools | 30 |
| Rapid traverse X/Y/Z | 30/30/24 m/min |
| Max tool diameter | 80/125 mm |
| Max tool weight | 8 kg |
| Max tool lenght | 300 mm |
| Dimensions | L 3850 mm x W 3435 mm x H 3170 mm |
| Weight | 13500 kg |
| Availability | Immediately |
Description

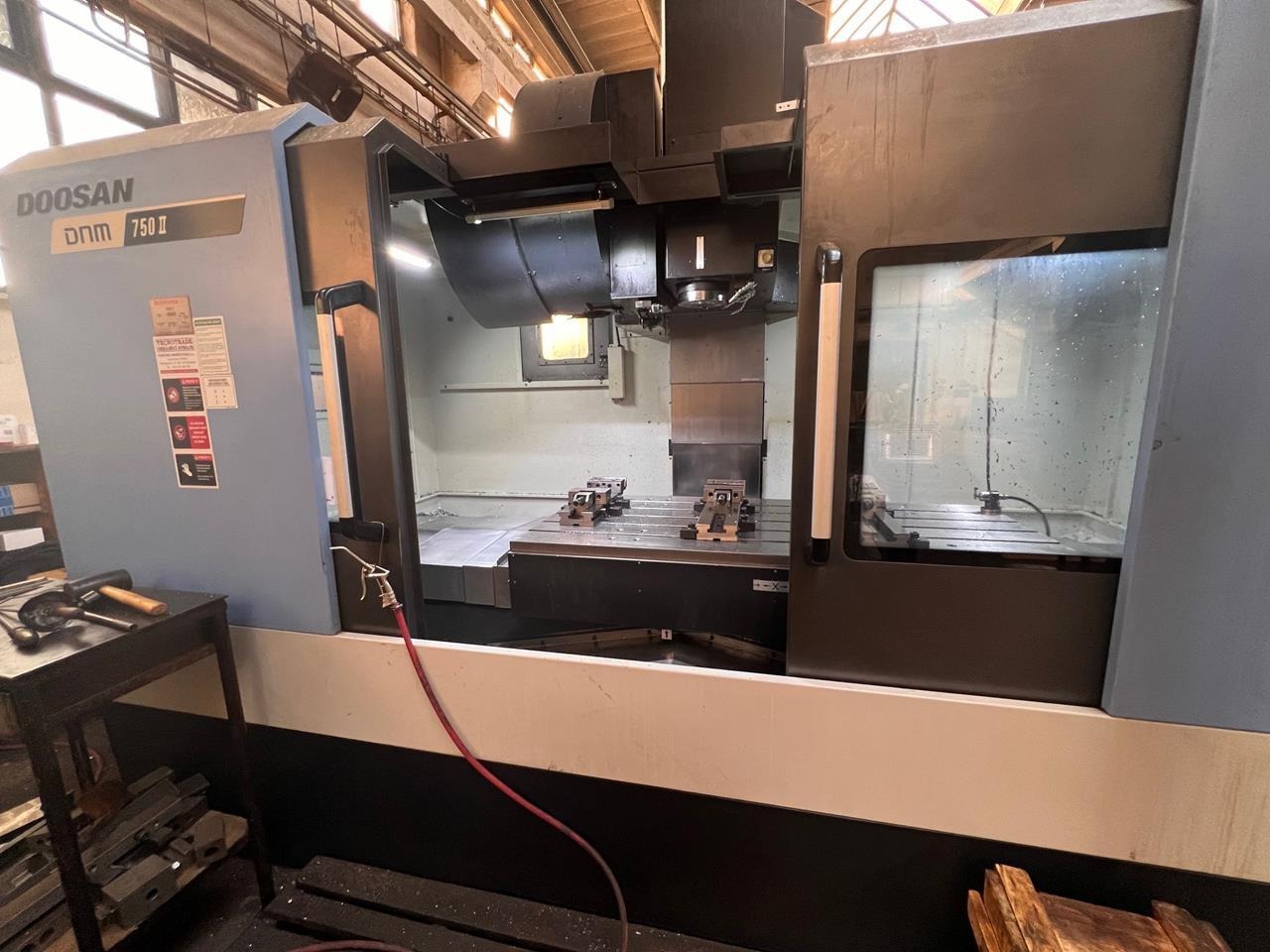

We hereby offer this used Doosan DNM 750 II vertical machining center from 2018, located in Czech Republic. it comes equipped with a reliable Fanuc i-Series CNC control unit, known for its user-friendly interface and dependable performance. The machine offers a generous working area of 1630 x 760 mm, supports a maximum table load of 1500 kg, and is driven by a 15 kW spindle motor, delivering strong and consistent cutting power. Perfect for a wide range of machining tasks, this model combines speed, precision, and durability for efficient production workflows.
Included with the Machine:
- Oil mist extraction.
- Workpiece probe Renishaw.
- Tool probe Renishaw.
- Chip conveyor.
