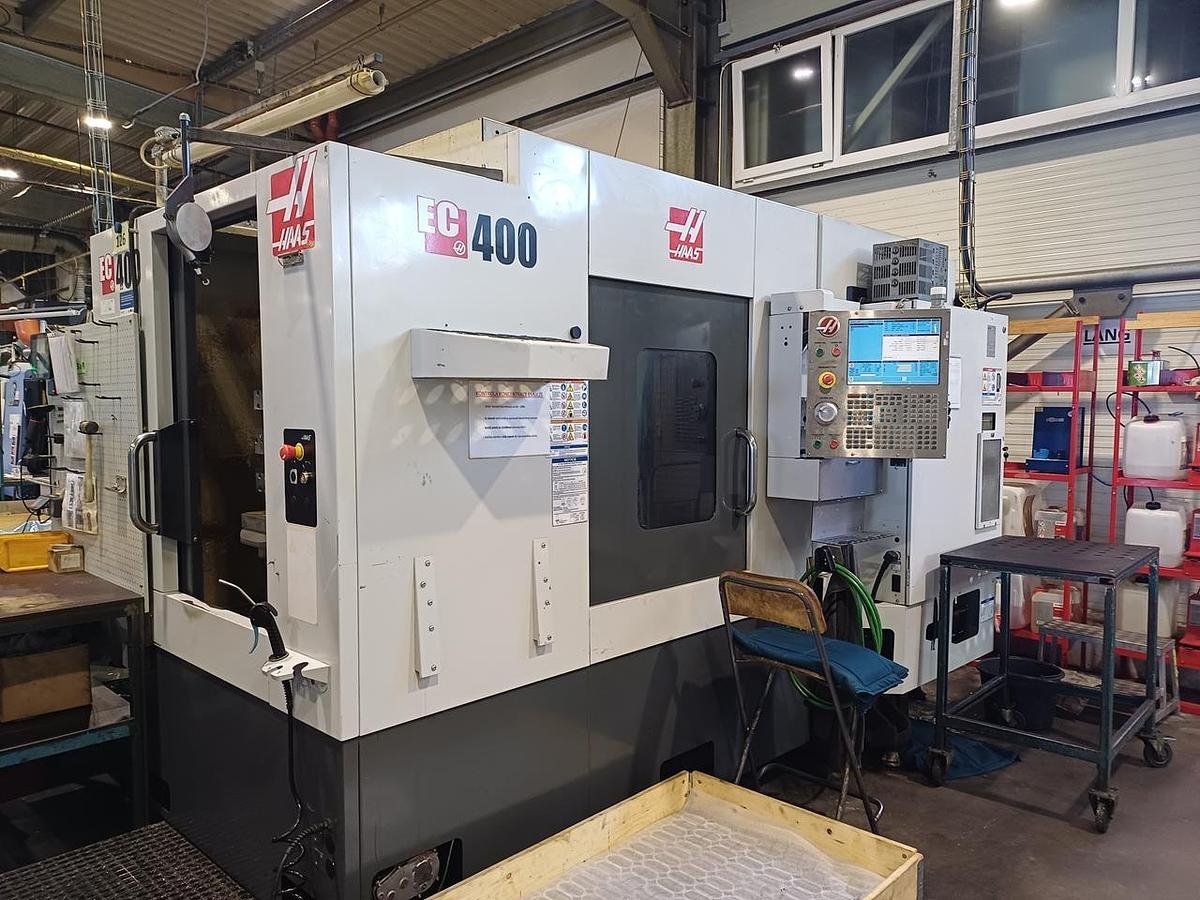

Haas EC 400 I Horizontal Machining Center I 2014
Specifications
| Manufacturer | Haas |
| Model | EC 400 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 600876208 |
| Control unit | Haas |
| X-Axis travel | 559 mm |
| Y-axis travel | 635 mm |
| Z-Axis travel | 559 mm |
| Rapid traverse rate X-Y-Z | 35.6 m/min |
| Table length | 400 mm |
| Table width | 400 mm |
| Number of axes | 4 axes |
| Table load | 400 kg |
| Spindle taper | SK 40 |
| Spindle speed | 8100 rpm |
| Motor power | 22.4 kW |
| Tool magazine | 40+1 positions |
| Dimensions | L 5130 x W 2540 x H 2840 mm |
| Weight | 7947 kg |
| Availability | Immediately |
Description
We hereby offer this used Haas EC 400 horizontal machining center from 2014, located in Czech Republic. This horizontal machining center is equipped with a reliable Haas control unit and offers a working area of 400 x 400 mm, making it ideal for high-precision production in compact formats. It features a spindle speed of 8100 rpm and a powerful 22.4 kW motor, delivering excellent performance in demanding machining tasks. Designed for productivity and accuracy, the EC-400 is a robust solution for efficient horizontal milling operations.
Features:
- 4 Full axis programmable from 0.00 to 1°.
- Renishaw tool and part measurement.
- Internal cooling through 20 bar spindle.
- 25 µ fine filter system for internal cooling.
- Additional programmable coolant nozzle.
- Chip evacuation system Screws with hinged belt conveyor.
- Threading without compensation chuck.
- Key switch for program lock.
- 15 inch LCD monitor with USB interface.
Haas Machinery
Our company is proud to be one of the leading suppliers of Haas machines in Europe. We offer a wide variety of machines, including lathes, machining centers and Haas CNC machines. All Haas machines are designed to deliver exceptional performance, precision and durability, and are backed by Haas world-class customer service.
____
*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.
**Bidding is subject to specific circumstances and negotiation terms.
