Hartford HSA - 428EA I Vertical Machining Center I 2015
Specifications
| Manufacturer | Hartford |
| Model | HSA - 428EA |
| Year | 2015 |
| Condition | Used |
| Stock Number | 600876207 |
| Total hours | 14613 h |
| Hours on | 5484 h |
| Control unit | Heidenhain 530iHSCI |
| X-Axis travel | 4000 mm |
| Y-Axis travel | 2800 mm |
| Z-Axis travel | 1400 mm |
| Table Length | 4000 mm |
| Table width | 2500 mm |
| Number of axis | 5 |
| Max table load | 18000 kg |
| Power spindle | 26 kW |
| Max distance of the spindle from the table | 2800 mm |
| Max rotary speed of the vertical spindle | 6000 1/min |
| Max feed rate in X-axis | 10000 mm/min |
| Max feed rate in Y-axis | 10000 mm/min |
| Max feed rate in Z-axis | 10000 mm/min |
| Splinde Taper | ISO 50 |
| Max number of tools | 32 |
| Internal cooling | 40 bar |
| Rapid traverse X/Y/Z | 16000/20000/15000 mm/min |
| Max. tool weight | 15 kg |
| Coolant tank | 400 L |
| Dimensions | L 13000 mm x W 7300 mm x H 6415 mm |
| Weight | 44000 kg |
| Availability | Immediately |
Description

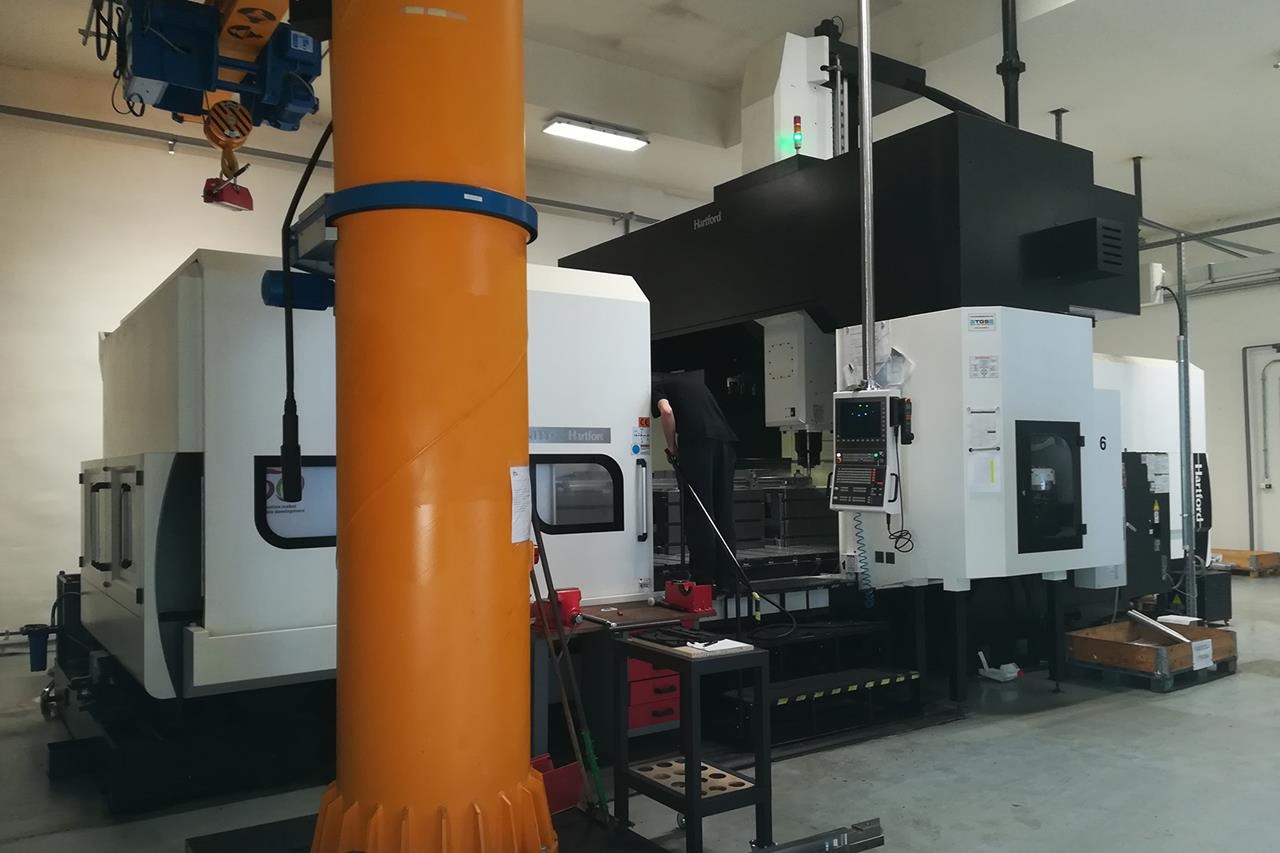

We hereby offer this used Hartford HSA - 428EA vertical machining center from 2015, located in Czech Republic. it is equipped with a Heidenhain 530iHSCI control unit, offering advanced control features and user-friendly operation. The machine boasts an expansive working area of 4000 x 2500 mm, supports an impressive maximum table load of 18,000 kg, and is powered by a robust 26 kW spindle, making it suitable for demanding milling applications. Designed for performance and durability, this machining center is an excellent choice for industries requiring precision in large workpieces.
Included with the Machine:
- Technical books.
- Chip conveyor.
- Hand wheel.
- Spindle head.
- Spindle extension.
- Angle head HF-AU H265 and Extended head H228 Head positioning in five degree.
- Probe Renishaw RMP60 ( Q ) ISO50.
Hartford Machinery
Hartford is a renowned manufacturer of advanced machine tools, specializing in high-quality vertical machining centers, horizontal machining centers, and double-column machining centers. With a commitment to innovation, durability, and precision, Hartford machines are widely used in industries like aerospace, automotive, and general manufacturing. Known for their cutting-edge technology and user-friendly design, Hartford products deliver exceptional performance, reliability, and versatility, making them a trusted choice for professionals worldwide.
