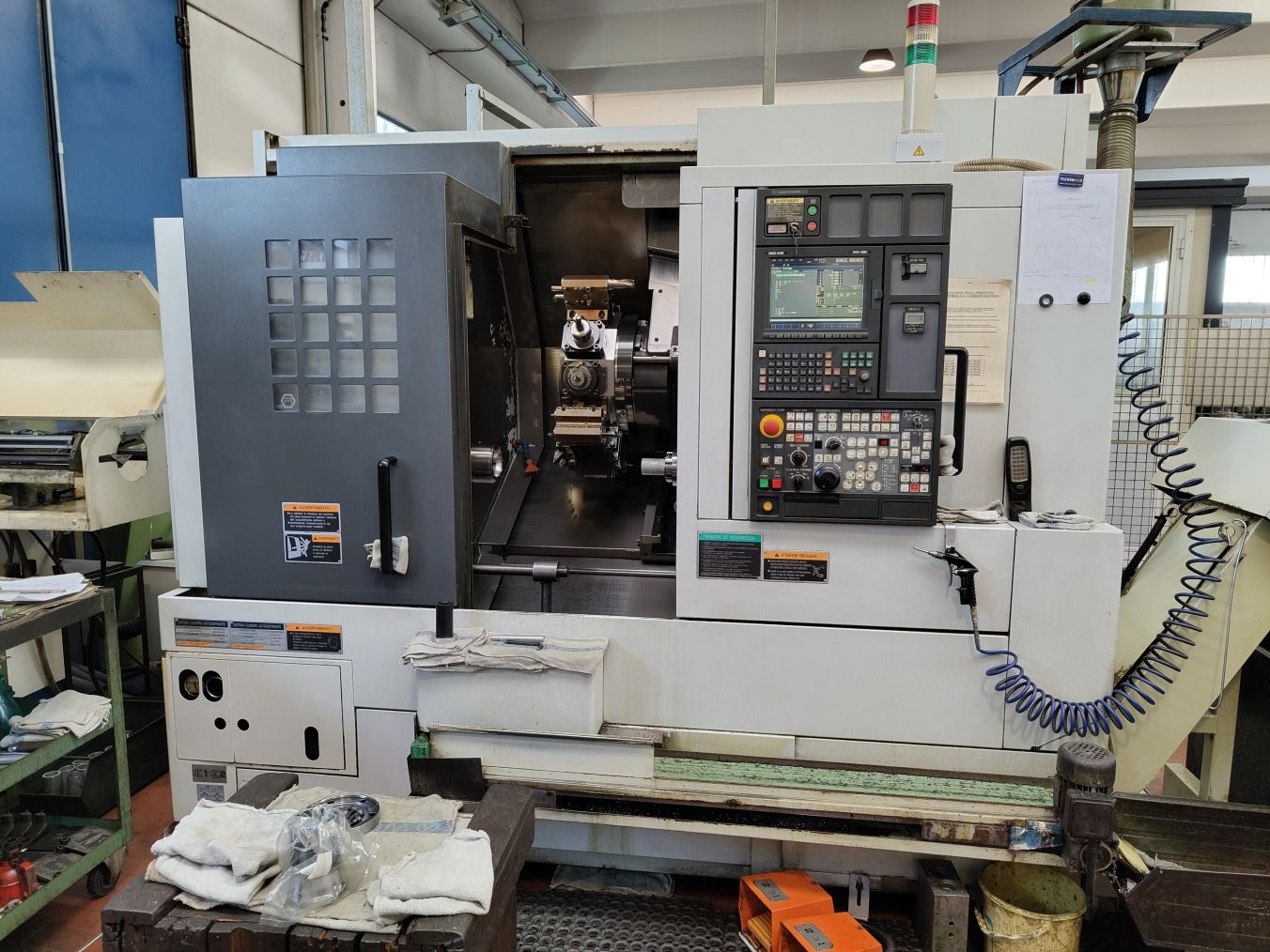

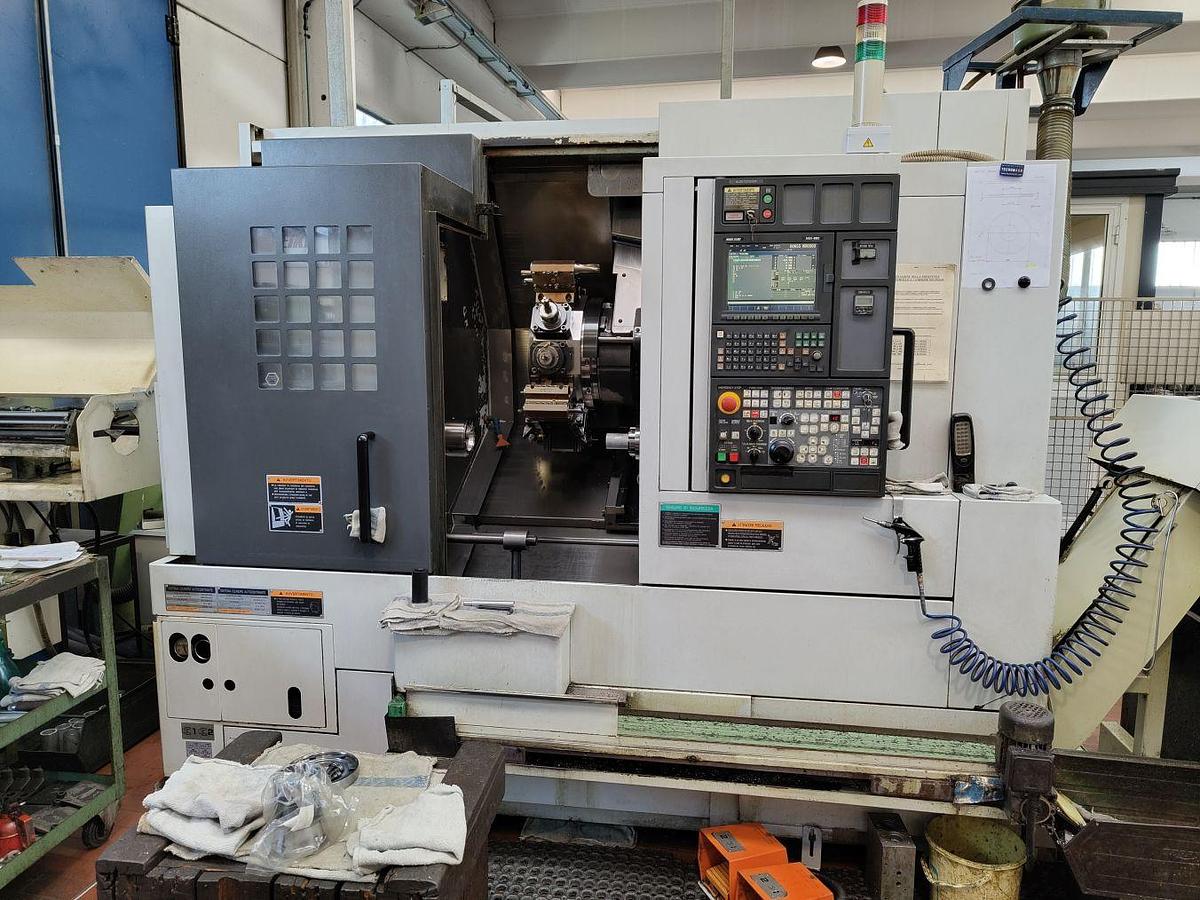

Mori Seiki NL 2000 SY/500 I CNC Lathe I 2005
Specifications
| Manufacturer | Mori Seiki |
| Model | NL 2000 SY/500 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 600876204 |
| Working hours | 26790 h |
| Control unit | Mori Seiki MSX-850 |
| Turning diameter | 366 mm |
| Turning length | 510 mm |
| B-Axis travel | 564 mm |
| C-axis indexing accuracy | 0.001° |
| Y-Axis travel | +/- 50 mm |
| X-axis travel | 260 mm |
| Z-Axis travel | 590 mm |
| Number of axes | 6 |
| Bar capacity | 65 mm |
| Max. bar diameter Turning Distance | 356 mm |
| Integrated main spindle motor | 15 kW |
| Integrated sub-spindle head motor | 11 kW |
| Main spindle size | A2-6 |
| Secondary spindle size | A2-5 |
| Main Spindle Speed | 6000 rpm |
| Secondary Spindle speed | 5000 rpm |
| Spindle/Subspindle Distance | 784 mm |
| Number of Positions | 12 |
| Number of Motorized Positions | 12 |
| Live Tool Speed | 6000 rpm |
| Live Tool Power | 5.5 kW |
| Supply voltage | 200 V |
| Total installed power | 37 kVA |
| Dimensions | L 3495 x W 2050 x H 2230 mm |
| Weight | 5800 kg |
| Availability | Immediately |
Description
We hereby offer this used Mori Seiki NL 2000 SY/500 CNC lathe from 2005, located in Italy. the machine is equipped with a Mori Seiki MSX-850 control unit, offering advanced functionality and ease of operation. It features a maximum turning diameter of 366 mm, a main spindle speed of up to 6000 rpm, and an integrated 15 kW main spindle motor, providing the power and speed required for demanding metalworking applications. Ideal for workshops seeking a reliable and versatile turning solution with proven Japanese engineering.
Included with the Machine:
- Chip Conveyor.
- Conveyor Belt Workpiece.
- Tool Presetter.
- Short Bar Loader.
Mori Seki Machinery
Mori Seiki, a renowned brand in the manufacturing industry, is known for producing a diverse range of high-quality precision machinery. Their product lineup includes CNC machine tools, such as lathes, milling machines, machining centers, and multitasking machines. Mori Seiki's machines are celebrated for their advanced technology, reliability, and efficiency, making them a top choice for various metalworking and machining applications across the globe. With a commitment to innovation and excellence, Mori Seiki has established itself as a leader in the field of CNC machinery manufacturing, serving industries that demand precision and performance.
