Weeke Optimat BHC 550 I CNC Machining Center I 2003

Price

13,000 €

15,114.45 $

Location

Belgium

or
Call +31 6 8722 7638

Specifications

ManufacturerWeeke
ModelOptimat BHC 550
Year2003
ConditionUsed
Stock Number600876164
X-Axis travel3900 mm
Y-Axis travel1635 mm
Z-Axis travel370 mm
Working area3550 x 1335 mm
Workpiece thickness100 mm
X-Y-Z axes rapid traverse80 - 60 - 20 m/min
Spindle taperHSK 63
Motor power12 kW
Rotation speed24000 rpm
Saw blade diameter180 mm
Vacuum pump capacity100 m3/h
Compressed air required7 bar
Electrical power22 kW
DimensionsL 6380 x W 3900 x H 2370 mm
Weight4500 kg
AvailabilityImmediately

Description

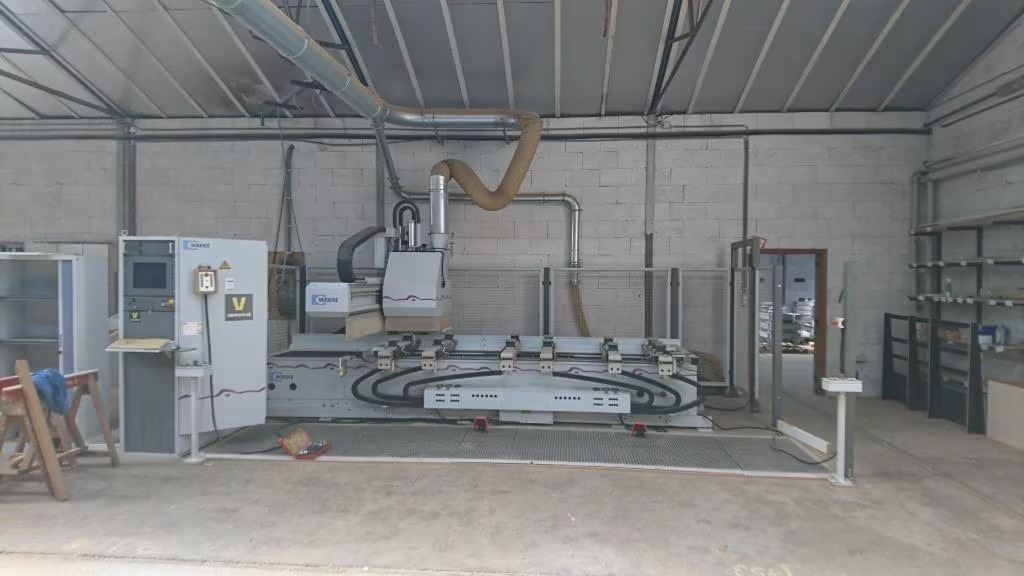

We are offering this pre-owned Weeke Optimat BHC 550 CNC machining center, manufactured in 2003 and currently located in Belgium. It features a generous work area of ​​3550 x 1335 mm, ideal for the efficient machining of large-format panels and highly complex parts. It is equipped with a high-speed spindle of up to 24,000 rpm and a powerful 12 kW motor, enabling it to deliver high cutting performance with great precision and reliability. Thanks to Weeke's renowned engineering quality, the Optimat BHC 550 delivers consistent results, making it an optimal choice for demanding applications in furniture manufacturing and cabinetmaking.


Features:

  • 4 spindles.
  • Cooled milling spindle.
  • HSK 63F mount.




Weeke Machinery

Our company is proud to be one of the leading suppliers of Weeke machines in Europe. We offer a wide variety of machines, including edgebanding, machining centers and Weeke CNC machines. All Weeke machines are designed to deliver exceptional performance, precision and durability, and are backed by Weeke world-class customer service.
