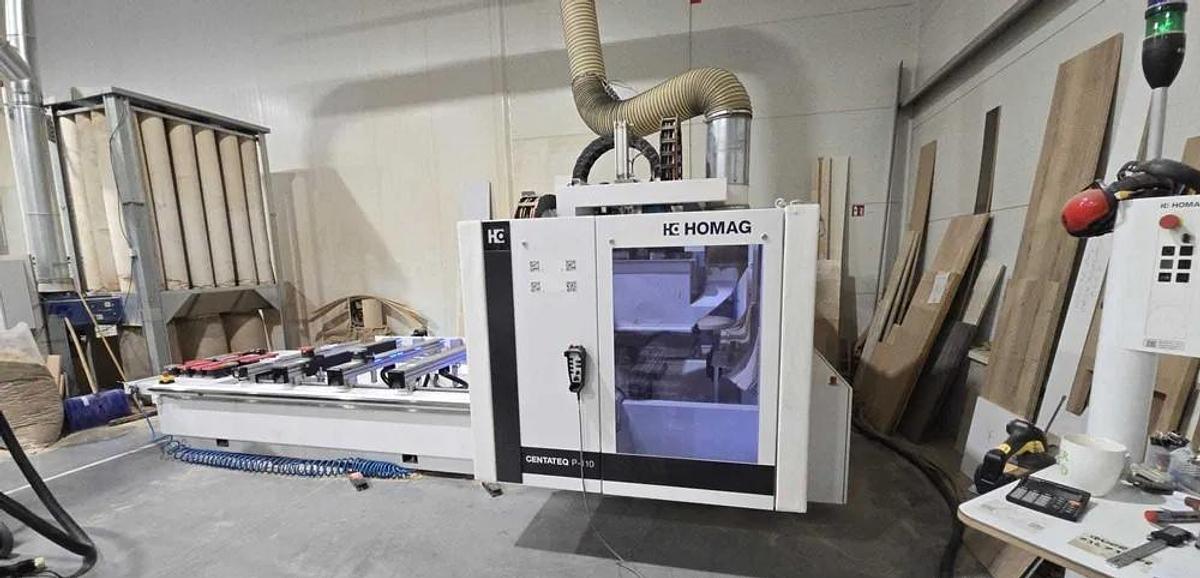

Homag Centateq P 110 Flex I CNC Machining Center I 2020
Specifications
| Manufacturer | Homag |
| Model | Centateq P 110 Flex |
| Year | 2020 |
| Condition | Used |
| Stock Number | 600876139 |
| Working hours | 2500 H |
| X-Axis travel | 3100 mm |
| Y-Axis travel | 1250/1550 mm |
| Z-Axis travel | 160/260 mm |
| Drilling depth | 38 mm |
| Saw blade thickness | 8 mm |
| Drilling head | 6 spindles |
| Spindle speed | 7500 rpm |
| Drilling unit power | 2.3 kW |
| Tool magazine | 14 positions |
| Linear tool magazine | 10 positions |
| Tiltable range | 0 - 90° |
| Dimensions | L 6850 x W 3472 x H 2408 mm |
| Availability | Immediately |
Description
We hereby offer this used Homag Centateq P 110 Flex CNC machining center from 2020, located in Poland. It offers a working area of 3100 x 1550 mm, providing ample space for processing large panels with accuracy and efficiency. Equipped with a powerful spindle reaching up to 7500 rpm and a reliable 2.3 kW drilling unit, this machine ensures excellent cutting, drilling, and routing performance. Built with Homag’s advanced technology, the Centateq P 110 Flex delivers flexibility, reliability, and productivity for demanding woodworking operations.
Features:
- WoodWOP for graphic and dialog-based creation of CNC programs.
- A large library of programs for machining contours, cabinetry, countertops, and doors.
- With a CAD plug-in that enables the creation of CAD contours and importing CAD drawings in DXF format.
- WOODWOP IMPORT DXF BASIC SINGLE-SITE LICENSE.
- A connector for transferring drawing data from a CAD system in DXF format.
- Individual drawing layers are appropriately marked; this allows you to automatically generate the required processing from DXF drawings. BARCODE READING PACKAGE.
- Allows you to enter the production sequence by reading a 1D or 2D barcode.
- The 'woodScan' barcode software allows you to prepare the control for the automatic transfer of up to three barcodes from the barcode reader to the seating program; for example: program name, assignment mode, quantity.
- Includes a handheld wireless scanner and an industrial-grade base station (Datalogic product).
- A separate interface connects the barcode reader to the control. Easy graphical assignment of data read from the barcode to the machine control, provided the barcode contains all the information necessary for production.
Homag Machinery
Homag is a renowned brand in the woodworking and furniture production industry, specializing in the manufacturing of a diverse range of machinery and equipment. Their product lineup, encompasses edgebanders, CNC machining centers, panel saws, edge processing machines, drilling and dowel insertion machines, bore and dowel insertion machines, and sanders, all tailored for precision woodworking tasks. Homag is known for its commitment to quality, precision, and innovation in the field of woodworking machinery, catering to the needs of woodworking shops, furniture production, and custom woodworking.
