SCM Record 100 NT TVN I CNC Machining Center I 2008

Specifications
Manufacturer | SCM |
Model | Record 100 NT TVN |
Year | 2008 |
Condition | Used |
Stock Number | 600876129 |
X-Axis travel | 3500 mm |
Y-Axis travel | 1790 mm |
Z-Axis travel | 400 mm |
X-Y-Z axis speed | 105 - 60 - 30 m/s |
Working area | 3050 x 1240 mm |
Workpiece passage | 225 mm |
Spindle taper | HSK F63 |
Spindle speed | 24000 rpm |
Motor power | 8.5 kW |
Tool magazine | 12 positions |
Drilling head | 7 vertical spindles, 4 horizontal spindles |
Vacuum pump | 100 m3 |
Made in | Italy |
Dimensions | L 5800 x W 4600 x H 2810 mm |
Weight | 3900 kg |
Availability | Immediately |
Description

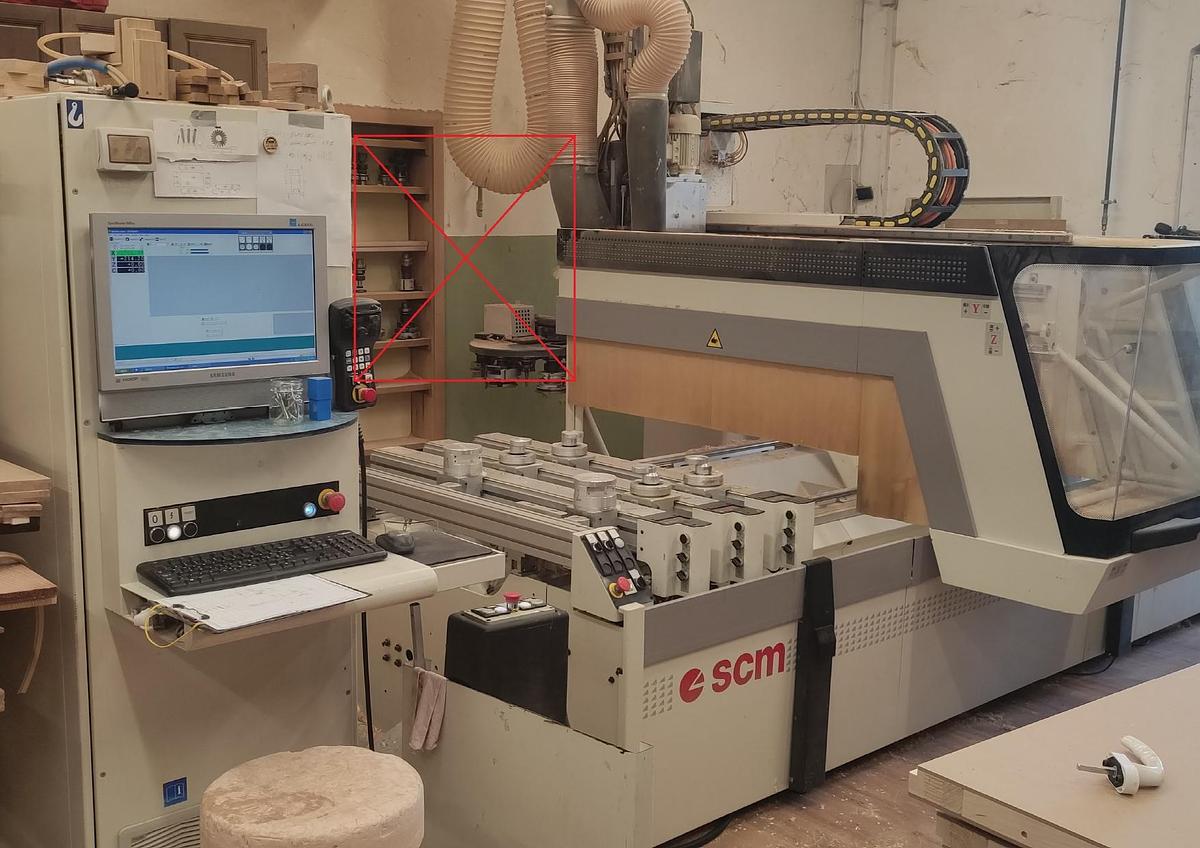

We hereby offer this used SCM Record 100 NT TVN CNC machining center from 2008, located in Slovenia. It features a working area of 3050 x 1240 mm, allowing the processing of large panels and complex designs with ease. Powered by an 8.5 kW motor and capable of reaching spindle speeds up to 24,000 rpm, the Record 100 NT TVN delivers excellent cutting performance, precision, and efficiency. Built with SCM’s renowned reliability, this machining center is well-suited for demanding production environments requiring both speed and accuracy.
Included with the Machine:
- 3-corner heads (saw, locks, hinges-at an angle).
- Mechanical jaws (6 pieces).
- Narrow vacuum (6 pieces).
- Wide vacuum (6 pieces).
- Documentation.
SCM Machinery
SCM, an esteemed Italian brand founded in 1952 and headquartered in Rimini, is a leading manufacturer of woodworking and metalworking machinery. Known for its unwavering commitment to innovation and precision, SCM offers a comprehensive range of equipment that caters to a diverse array of industries. In woodworking, SCM's portfolio includes CNC machining centers, edgebanders, panel saws, sanding machines, and wood lathes, while its metalworking solutions encompass CNC machining centers, metal cutting and forming equipment, and rolling machines. Additionally, SCM provides machinery for working with plastic and composite materials. With a rich legacy spanning decades, SCM is a trusted global partner, delivering advanced technology and superior craftsmanship to elevate manufacturing processes across various sectors.
