Okuma LU300-MY I CNC Lathe I 2006
Specifications
| Manufacturer | Okuma |
| Model | LU300-MY |
| Year | 2006 |
| Condition | Used |
| Stock Number | 600876117 |
| Control unit | OSP P200-L |
| Number of axes | 5-Axis |
| Turning diameter | 380 mm |
| Swing over bed | 520 mm |
| Turning length | 1050 mm |
| Bar passage | 75 mm |
| Chuck size | 250 mm |
| X-Z axes rapid traverse | 20 - 25 m/min |
| Spindle size | A2-8 |
| Spindle speed | 4200 rpm |
| Motor power | 22 kW |
| Tools on turret | Upper turret 12 positions, lower turret 8 positions |
| Morse taper tailstock | MT5 |
| Made in | Japan |
| Dimensions | L 3710 x W 2440 x H 2210 mm |
| Weight | 8200 kg |
| Availability | Immediately |
Description

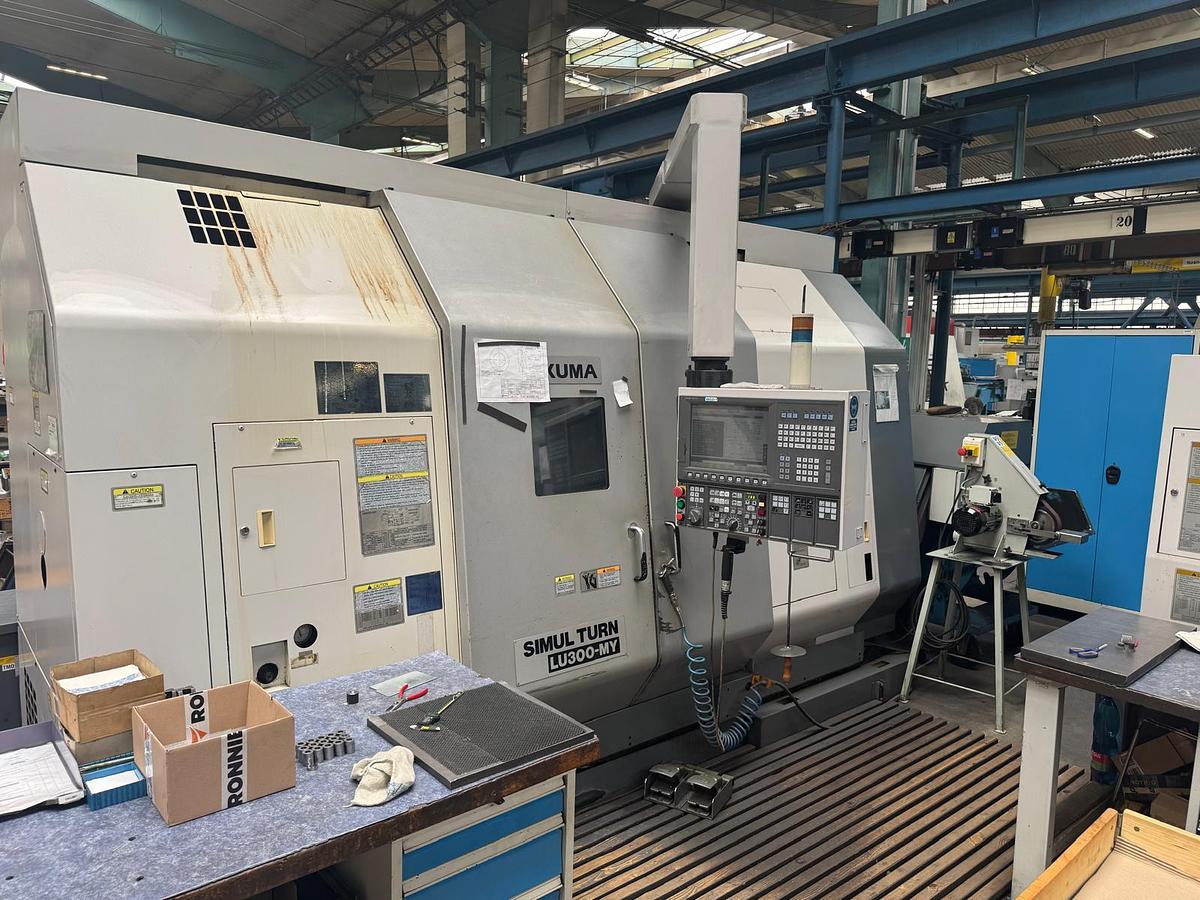

We hereby offer this used Okuma LU300-MY CNC lathe from 2006, located in Spain. It is equipped with an Okuma OSP P200L control unit, offering advanced programming capabilities, user-friendly operation, and reliable performance. The machine supports a maximum turning diameter of 380 mm and delivers a spindle speed of up to 4,200 rpm, powered by a robust 22 kW motor for excellent cutting power. Engineered for versatility and accuracy, the Okuma LU300-MY is well-suited for demanding industrial applications, from small batch production to high-volume manufacturing.
Features:
- 5-axis machine (C-Y axis).
- Hydraulic and programmable tailstock.
- Two turrets.
- Integrated motor without belts or steps.
- Prismatic guides on all axes.
- Oil cooler for head.
- OSP P200-L conversational automatic programming system.
- Automatic force control and tool consumption monitor.
- Renishaw automatic tool measurement arm.
- Communication ports via USB, PCMCIA card, and RS-232.
- Double pedal for opening and closing the main plate and tailstock.
- Side hinge-type chip extractor.
- Extensive range of static and motorized tool holders.
- Electrical transformer.
- Documentation, parts list, electrical diagrams, programming, and operating manual.
Okuma Machinery
Okuma is a renowned brand in the manufacturing industry, known for producing a wide range of high-quality machine tools and equipment. They specialize in manufacturing various types of machinery, including CNC lathes, CNC machining centers, double column machining centers, grinders, and more. Okuma's machines are prized for their precision, advanced technology, and reliability, making them a preferred choice for industries such as aerospace, automotive, and general machining.
