Haas EC-400 I Horizontal Machining Center I 2015
Specifications
| Manufacturer | Haas |
| Model | EC-400 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 600876072 |
| Working hours | 4550 H |
| Number of axes | 4 axes |
| Control unit | Haas |
| X-Axis travel | 559 mm |
| Y-Axis travel | 635 mm |
| Z-Axis travel | 559 mm |
| Rapid traverse rate X-Y-Z | 35.6 m/min |
| Table length | 400 mm |
| Table width | 400 mm |
| Table load | 400 kg |
| Spindle taper | SK 40 |
| Spindle speed | 8100 rpm |
| Motor power | 22.4 kW |
| Tool magazine | 40+1 positions |
| Dimensions | L 5130 x W 2540 x H 2840 mm |
| Weight | 7947 kg |
| Availability | Immediately |
Description

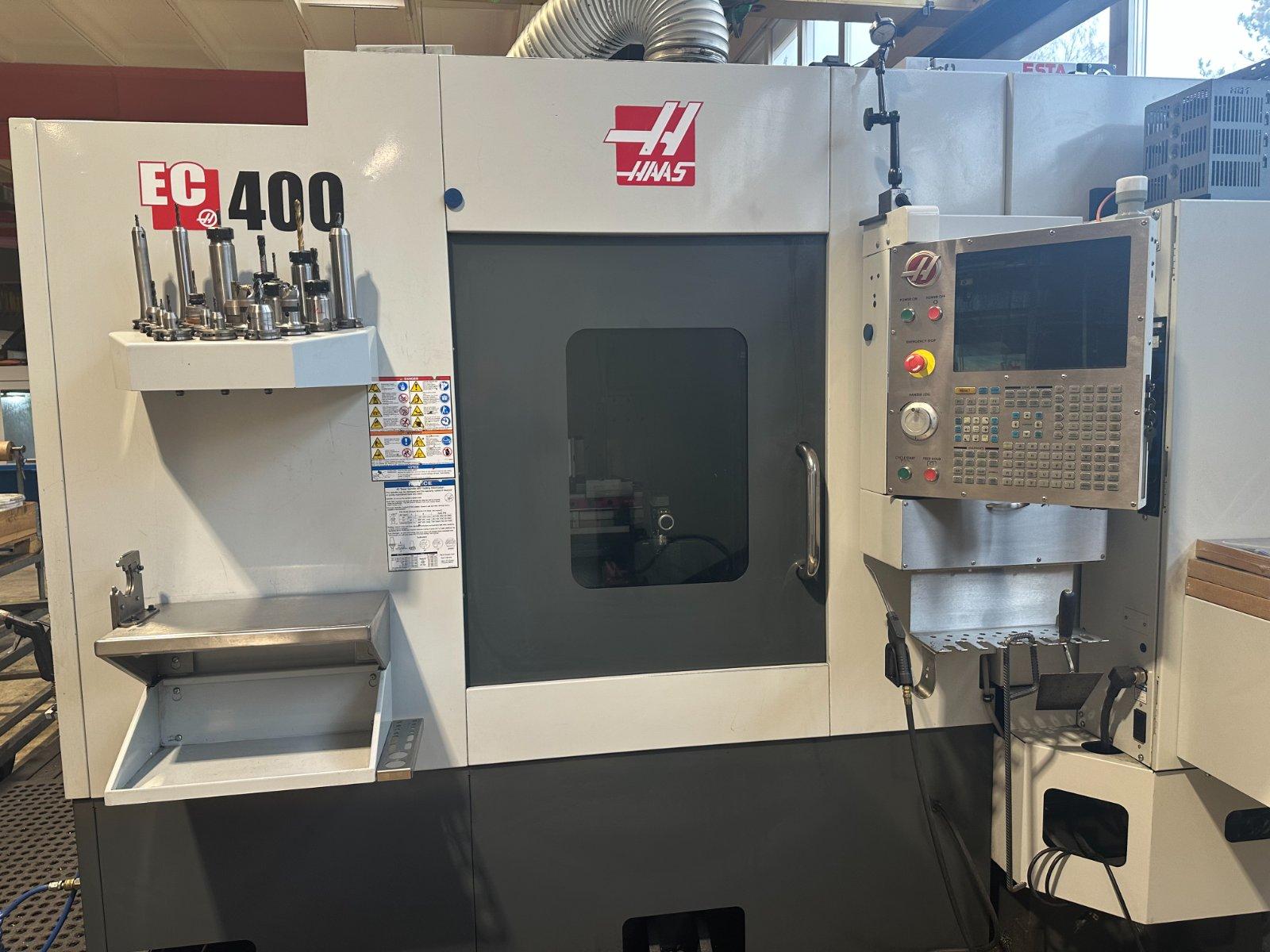

We hereby offer this used Haas EC-400 horizontal machining center from 2015, located in Germany. This horizontal machining center is equipped with a reliable Haas control unit and offers a working area of 400 x 400 mm, making it ideal for high-precision production in compact formats. It features a spindle speed of 8100 rpm and a powerful 22.4 kW motor, delivering excellent performance in demanding machining tasks. Designed for productivity and accuracy, the EC-400 is a robust solution for efficient horizontal milling operations.
Features:
- 4 Full axis programmable from 0.00 to 1°.
- Renishaw tool and part measurement.
- Internal cooling through 20 bar spindle.
- 25 µ fine filter system for internal cooling.
- Additional programmable coolant nozzle.
- Chip evacuation system Screws with hinged belt conveyor.
- Threading without compensation chuck.
- Key switch for program lock.
- 15 inch LCD monitor with USB interface.
Haas Machinery
Our company is proud to be one of the leading suppliers of Haas machines in Europe. We offer a wide variety of machines, including lathes, machining centers and Haas CNC machines. All Haas machines are designed to deliver exceptional performance, precision and durability, and are backed by Haas world-class customer service.
