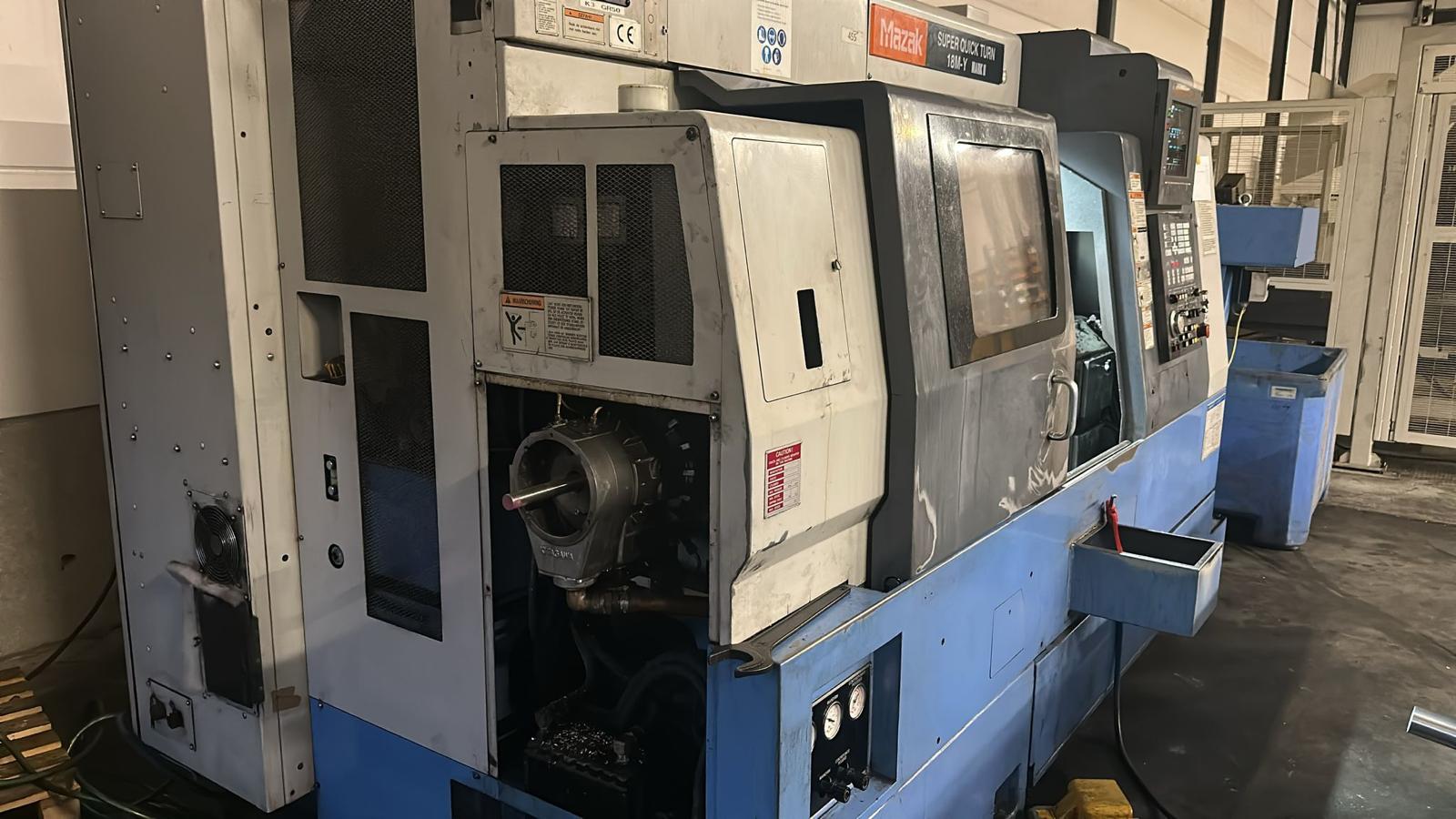

Mazak Super Quick Turn 18M-Y Mark II I CNC Lathe

Specifiche
Produttore | Mazak |
Modello | Super Quick Turn 18M-Y Mark II |
Condizione | Usato |
Numero di magazzino | 600876125 |
Control unit | Mazatrol T-Plus |
Turning diameter | 300 mm |
Turning length | 507 mm |
Swing diameter over bed | 531 mm |
Swing diameter over cross-slides | 40 mm |
Bar diameter | 64 mm |
X-Axis travel | 180 mm |
Z-Axis travel | 575 mm |
Spindle nose | A2-6 |
Spindle bore | 76 mm |
Spindle speed | 4000 rpm |
Motor power | 18.5 kW |
Tools on turret | 12 positions |
Tailstock center | MK 5 |
Dimensions | L 3100 x W 1800 x H 1900 mm |
Weight | 4750 kg |
Availability | Immediately |
Descrizione
We hereby offer this used Mazak Super Quick Turn 18M-Y Mark II CNC lathe, located in The Netherlands. It is equipped with a Mazatrol T-Plus control unit, ensuring intuitive programming and efficient operation. With a maximum turning diameter of 300 mm, a spindle speed of 4000 rpm, and a robust 18.5 kW motor, this machine provides the power and accuracy required for a wide range of machining tasks. Designed for durability and productivity, the Super Quick Turn 18M-Y Mark II is a versatile solution for demanding production environments.
Features:
- Bar feeder option.
- Collection tray.
- Y axis.
- Counter center.
Mazak Machinery
Mazak is a globally renowned brand in the manufacturing industry, distinguished for its cutting-edge technology and precision engineering. They offer a comprehensive range of industrial machines, including CNC lathes, machining centers, multi-tasking machines, grinders, 5-axis machining centers, and automation solutions, enabling efficient and versatile operations in diverse industries. Mazak's commitment to innovation and reliability has solidified their position as a trusted leader, contributing significantly to the advancement of production capabilities worldwide.
