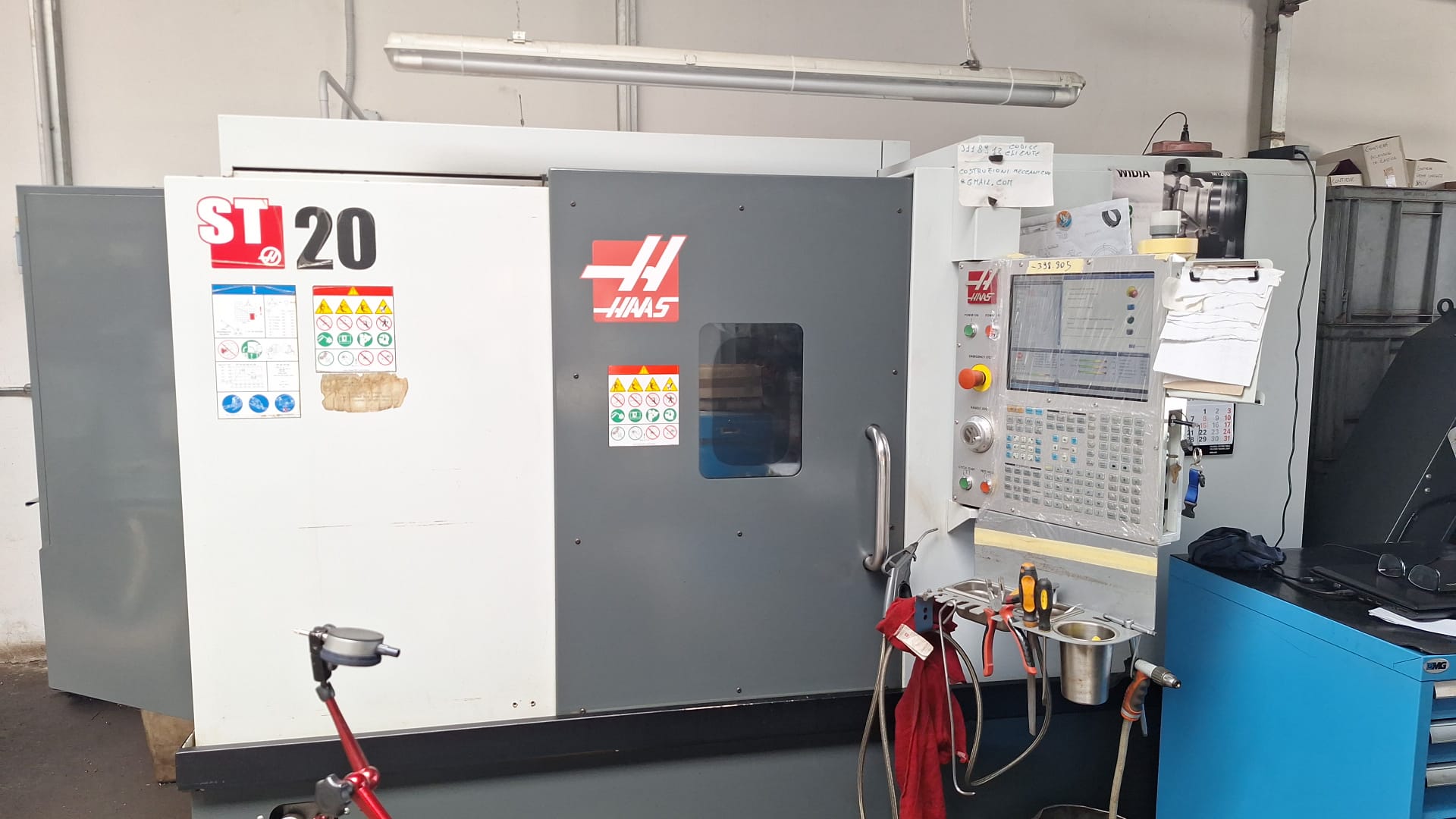

Haas ST-20 I CNC Lathe I 2021
Specifications
| Manufacturer | Haas |
| Model | ST-20 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 600876133 |
| Control unit | Haas |
| Turning diameter | 330 mm |
| Turning length | 572 mm |
| Max part swing | 533 mm |
| Bar capacity | 64 mm |
| Chuck size | 210 mm |
| X-Axis travel | 213 mm |
| Z-Axis travel | 572 mm |
| X-Z rapid federate | 24 m/min |
| Spindle/sub-spindle nose | A2-6/A2-5 |
| Motor power | 14.9 kW |
| Spindle/sub-spindle speed | 4000/6000 rpm |
| Spindle/sub-spindle bore | 88.9/38.1 mm |
| Tools on turret | 12 stations |
| Dimensions | L 3620 x W 2290 x H 2340 mm |
| Weight | 4000 kg |
| Availability | Immediately |
Description
We hereby offer this used Haas ST-20 CNC lathe from 2021, located in Italy. Equipped with a Haas control unit, it ensures user-friendly operation and efficient programming. The machine features a maximum turning diameter of 330 mm, a spindle speed of 4,000 rpm, and a robust motor power of 14.9 kW, providing the strength and flexibility needed for a wide range of metalworking tasks. Designed for accuracy, productivity, and ease of use, the Haas ST-20 is well-suited for modern machining environments.
Advantages:
- Generous Turning Capacity.
- High Spindle Performance.
- Strong Motor Power.
- User-Friendly Control.
