Introduction

In the realm of precision manufacturing, creating deep, accurate holes is a critical and often challenging task. Traditional drilling methods often fall short when faced with high depth-to-diameter ratios, demanding tight tolerances, and requiring superior surface finishes. This is where CNC deep hole drilling machines emerge as indispensable tools. These specialized machines are engineered to produce exceptionally straight and precise holes, even through challenging materials and over significant lengths. This comprehensive 2025 guide delves into what CNC deep hole drilling machines are, their diverse applications, the significant benefits they offer, and crucial considerations for technical buyers, production planners, and business owners looking to invest in this advanced technology, including insights into pricing, brands, and used options.


CNC Deep Hole Drilling Machines: Applications, Benefits, and What to Consider Before Purchase (2025 Guide)

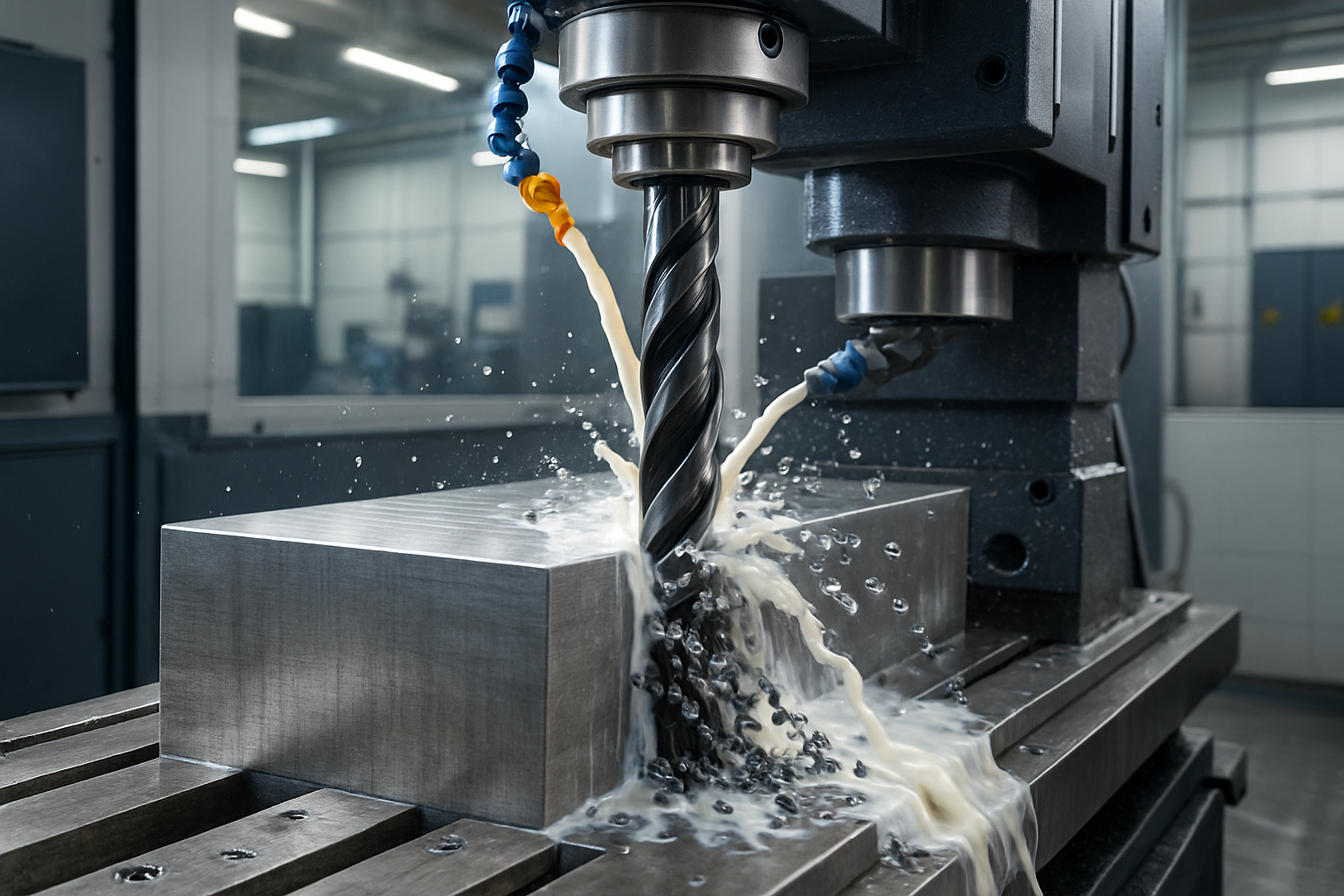

What is CNC Deep Hole Drilling?

CNC deep hole drilling refers to the process of creating holes with a depth-to-diameter ratio typically greater than 10:1, and often exceeding 100:1. Unlike conventional drilling, which struggles with chip evacuation, heat dissipation, and maintaining straightness over long distances, deep hole drilling employs specialized tools and techniques to overcome these challenges. The process is highly controlled by Computer Numerical Control (CNC) systems, ensuring unparalleled precision, repeatability, and efficiency.


Key characteristics of CNC deep hole drilling include:

  • Specialized Tooling: Primarily uses gun drills or BTA (Boring and Trepanning Association) tools, which are designed with internal channels for high-pressure coolant delivery and efficient chip evacuation.
  • High-Pressure Coolant: Coolant is delivered at high pressure through the tool to the cutting edge, flushing chips away and cooling the cutting zone, which is crucial for maintaining tool life and hole quality.
  • Precise Machine Control: CNC systems meticulously control feed rates, spindle speeds, and tool paths to maintain straightness, concentricity, and surface finish throughout the drilling process.
  • Vibration Dampening: Machines are built with rigid structures and advanced vibration dampening systems to ensure stability during long drilling operations.


Applications of CNC Deep Hole Drilling Machines

CNC deep hole drilling machines are vital across a multitude of industries where precision and deep holes are paramount. Their capabilities extend far beyond simple hole-making, enabling the creation of complex internal geometries and critical components. Key applications include:


1. Metalworking and General Manufacturing

In general metalworking, these machines are used for a wide range of tasks where deep, accurate holes are required in various metals, including steel, aluminum, and exotic alloys. This can include components for industrial machinery, hydraulic systems, and custom fabrication projects.


2. Precision Drilling and Tool & Die Making

For tool and die makers, precision is non-negotiable. CNC deep hole drilling machines are used to create cooling channels in molds and dies, ejector pin holes, and other intricate features that require extreme accuracy and a smooth finish. These channels are crucial for controlling temperature and ensuring part quality in injection molding and die-casting processes.


3. Oil and Gas Industry

The oil and gas sector relies heavily on deep hole drilling for manufacturing critical components that operate under extreme conditions. Applications include drilling holes in drill collars, downhole tools, valve bodies, and various components for exploration and production equipment. The ability to create long, straight holes in tough materials like Inconel and stainless steel is essential for safety and performance.


4. Automotive Industry

In the automotive industry, CNC deep hole drilling is used for manufacturing engine components, such as crankshafts, camshafts, and connecting rods, where internal oil passages and cooling channels are vital. It's also used for fuel injection systems and transmission components, where precise fluid flow is necessary for optimal performance.


5. Aerospace Industry

Aerospace components demand the highest levels of precision, reliability, and material integrity. CNC deep hole drilling machines are used to create lightweight structures with internal passages, landing gear components, turbine shafts, and hydraulic cylinders. The ability to drill through high-strength, heat-resistant alloys with exceptional accuracy is critical for aircraft safety and performance.


6. Medical Industry

For medical devices and implants, biocompatibility and precision are paramount. Deep hole drilling is used to manufacture surgical instruments, bone screws, and various implantable devices where internal features and smooth finishes are essential for patient safety and device functionality.


7. Firearms and Defense

Historically, deep hole drilling (gun drilling) originated from the need to manufacture gun barrels. Today, it remains a core application in the firearms and defense industries for producing barrels, artillery components, and other weapon systems that require long, straight, and precise bores.


Benefits of CNC Deep Hole Drilling

The adoption of CNC deep hole drilling machines offers numerous advantages over conventional drilling methods, translating into significant improvements in productivity, quality, and cost-efficiency:


  • Superior Hole Quality: Produces holes with exceptional straightness, concentricity, and surface finish, often eliminating the need for secondary operations like reaming or honing.
  • High Precision and Accuracy: CNC control ensures tight tolerances and repeatable results, critical for complex components and demanding applications.
  • Increased Productivity: High feed rates and efficient chip evacuation allow for faster drilling cycles compared to conventional methods, especially for deep holes.
  • Extended Tool Life: Effective coolant delivery and chip management reduce heat and friction, significantly extending the life of cutting tools.
  • Versatility: Capable of drilling a wide range of materials, from soft aluminum to hardened steels and superalloys.
  • Reduced Scrap and Rework: The precision and control minimize errors, leading to less material waste and reduced rework.
  • Automation Potential: Easily integrated into automated production lines, enhancing overall manufacturing efficiency.


What to Consider Before Purchasing a CNC Deep Hole Drilling Machine (2025 Guide)

Investing in a CNC deep hole drilling machine is a significant decision that requires careful consideration. Here are key factors to evaluate, whether you're looking for a new or used machine:


1. Application Requirements

  • Hole Diameter and Depth: Determine the range of hole diameters and depths you need to drill. This will dictate the machine's capacity and tooling requirements.
  • Material Types: Identify the types of materials you will be machining. Some machines and tooling are better suited for specific material groups (e.g., hardened steels, aerospace alloys).
  • Tolerance and Surface Finish: Understand the required precision and surface finish for your parts. Higher demands may necessitate more advanced machine features and control systems.
  • Production Volume: Consider your expected production volume. High-volume production might justify a more automated and robust machine.


2. Machine Specifications and Features

  • Spindle Power and Torque: Adequate power is essential for drilling through tough materials and maintaining consistent performance.
  • Coolant System: A robust, high-pressure coolant system with effective filtration is critical for chip evacuation and thermal management.
  • Control System (CNC): Evaluate the CNC control system (e.g., Fanuc, Siemens, Heidenhain). Look for user-friendliness, programming capabilities, and integration with your existing CAD/CAM software.
  • Machine Rigidity and Stability: A rigid machine structure is crucial for maintaining accuracy and minimizing vibration during deep drilling operations.
  • Workpiece Handling: Consider the size and weight of your workpieces and how they will be loaded, clamped, and supported on the machine.
  • Automation Options: Features like automatic tool changers, robotic loading/unloading, and in-process gauging can significantly enhance productivity.


3. Brands and Manufacturers

Several reputable manufacturers specialize in CNC deep hole drilling machines, known for their quality, precision, and reliability. Some leading brands to consider include:


  • UNISIG: A global leader known for high-performance gundrilling and BTA deep hole drilling machines.
  • Precihole Machine Tools: Offers a comprehensive range of deep hole drilling solutions with advanced technology.
  • Absolute Machine Tools (Precihole distributor): Provides sales and support for Precihole machines in various regions.
  • Eldorado Tool: A long-standing name in gundrilling technology.
  • TBT Tiefbohrtechnik: A German manufacturer known for high-precision deep drilling machines.
  • Gundrill Systems: Specializes in custom deep hole drilling solutions.
  • VDF Boehringer B10S: A robust drilling machine, often found in the used market, known for its heavy-duty industrial applications. For example, Glomach offers a VDF Boehringer B10S (1990 model) with a drilling diameter of 380 mm and a drilling length of 2000 mm, powered by an 88 kW motor, suitable for large workpieces and deep drilling tasks.
  • CMA Rapid Drill RD-32 CN: A CNC drilling line designed for precision and efficiency, often available through platforms like Glomach. This model typically features an expansive working area (e.g., 7500 x 650 mm) and a high spindle speed (up to 3000 rpm) with a drilling capacity of 32 mm in steel, making it versatile for various industrial applications.


Researching these brands and their specific models will help you find a machine that aligns with your technical requirements and budget.


4. Pricing (New Machines)

The price of a new CNC deep hole drilling machine can vary widely, typically ranging from $100,000 to over $1,000,000 USD, depending on its size, capabilities, brand, and level of automation. Entry-level machines for smaller diameters and depths will be at the lower end, while large, multi-axis machines with advanced features and automation will be at the higher end. Factors influencing price include:


  • Machine Size and Capacity: Larger machines capable of drilling deeper and wider holes are more expensive.
  • Number of Axes: 3-axis machines are standard, but 4- or 5-axis capabilities for complex geometries will increase the cost.
  • Automation Features: Integrated automation, such as robotic loading, automatic tool changers, and in-process gauging, adds to the price.
  • Brand Reputation and Technology: Leading brands with proprietary technology and extensive R&D often command higher prices.
  • Customization: Any specific modifications or custom features will increase the overall cost.


It is advisable to obtain detailed quotes from multiple suppliers and compare specifications, support, and warranty terms.


5. Used CNC Deep Hole Drilling Machines

The market for used CNC deep hole drilling machines offers a cost-effective alternative to purchasing new equipment. However, buying used requires thorough due diligence.


  • Advantages of Buying Used:
  • Lower Initial Investment: Significantly reduced purchase price compared to new machines.
  • Faster Availability: Used machines are often available immediately, reducing lead times.
  • Proven Technology: You can acquire well-established models with known performance characteristics.
  • Considerations When Buying Used:
  • Machine Condition: Thoroughly inspect the machine for wear and tear, especially on critical components like spindles, guideways, and the coolant system. Request detailed maintenance records.
  • Operating Hours: Inquire about spindle hours and power-on hours, as these indicate the machine's usage and remaining lifespan.
  • Control System Age: Older control systems might be less intuitive or harder to integrate with modern software. Ensure parts and support are still available for the control.
  • Refurbishment: Some dealers offer refurbished machines with warranties, which can be a good balance between cost savings and reliability.
  • Transportation and Installation: Factor in the costs and complexities of transporting and installing a used machine, which can be substantial for heavy equipment.
  • Source: Purchase from reputable dealers or brokers who offer transparency, inspection reports, and potentially some form of guarantee.


Online marketplaces like Machineseeker, Surplus Record, and specialized machinery dealers are good places to find used CNC deep hole drilling machines.


Conclusion

CNC deep hole drilling machines are indispensable assets for industries demanding high-precision, deep holes in challenging materials. Their ability to deliver superior hole quality, accuracy, and productivity makes them a valuable investment. By understanding their applications, recognizing their benefits, and carefully considering factors such as machine specifications, reputable brands, and the nuances of both new and used markets, businesses can make informed purchasing decisions. Whether you opt for a brand-new, state-of-the-art machine or a well-maintained used model, a strategic investment in CNC deep hole drilling technology will undoubtedly enhance your manufacturing capabilities and competitive edge in 2025 and beyond.
